N3R-5808

Metal Box N3R-5808
  • N3R Series Metal Box open

Product Details

Model # N3R-5808 3R Series Metal Boxes

• Heavy-duty 16-gauge galvanized steel spot-welded construction
• Drip-shielded top and seam-free sides, back and front
• Hinged cover with weather resistant Neoprene gasket and zinc plated and powder coated pad-lockable draw latch
• Provides protection against rain, sleet, snow and dripping water
• Easily removable five concentric knockouts on bottom for industry standard conduit sizes
• Two external wall mounting brackets in back
• Easy to clean and durable ASA-70 Gray powder coating
• Complies with NEMA and UL-50 Type 3R rating
• Internal zinc plated steel panel included
• UL 50 and 50E listed – File E238062

Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 12.00" x 12.00" x 10.00"
Internal Size H x W x D: 10.81" x 10.25" x 9.50"
Weight: 20 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
Latch Style: Pad-Lockable Draw Latch
Gasket Type: Neoprene
Knockouts: Knockouts
Type of Steel: 16 Gauge Galvanized Steel
NEMA Rating: NEMA 1, NEMA 3R
Mounting Style: Mounting Brackets
Cover Style: Opaque, Hinged Cover
hb10245.pdf hb10245.dxf

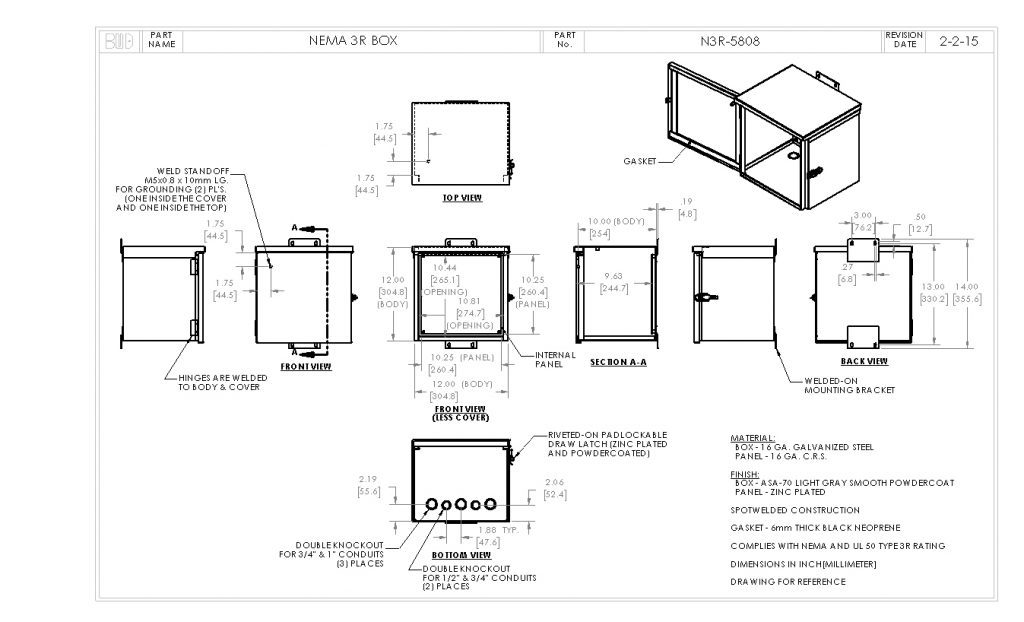

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
N3R-5807 12.00" x 12.00" x 6.00" 10.81" x 10.25" x 5.50"
N3R-5808 12.00" x 12.00" x 10.00" 10.81" x 10.25" x 9.50"
N3R-5806 12.00" x 10.00" x 6.00" 10.25" x 8.81" x 5.50"
N3R-5804 8.00" x 8.00" x 6.00" 6.81" x 6.25" x 5.50"
N3R-5805 10.00" x 8.00" x 6.00" 8.25" x 6.81" x 5.50"
N3R-5802 6.00" x 6.00" x 4.00" 4.81" x 4.25" x 3.50"
N3R-5803 8.00" x 6.00" x 4.00" 6.25" x 4.81" x 3.50"
N3R-5801 6.00" x 4.00" x 4.00" 4.25" x 2.81" x 3.50"
