DIN Rail Extruded Aluminum Box DMX-4778-B

Product Details

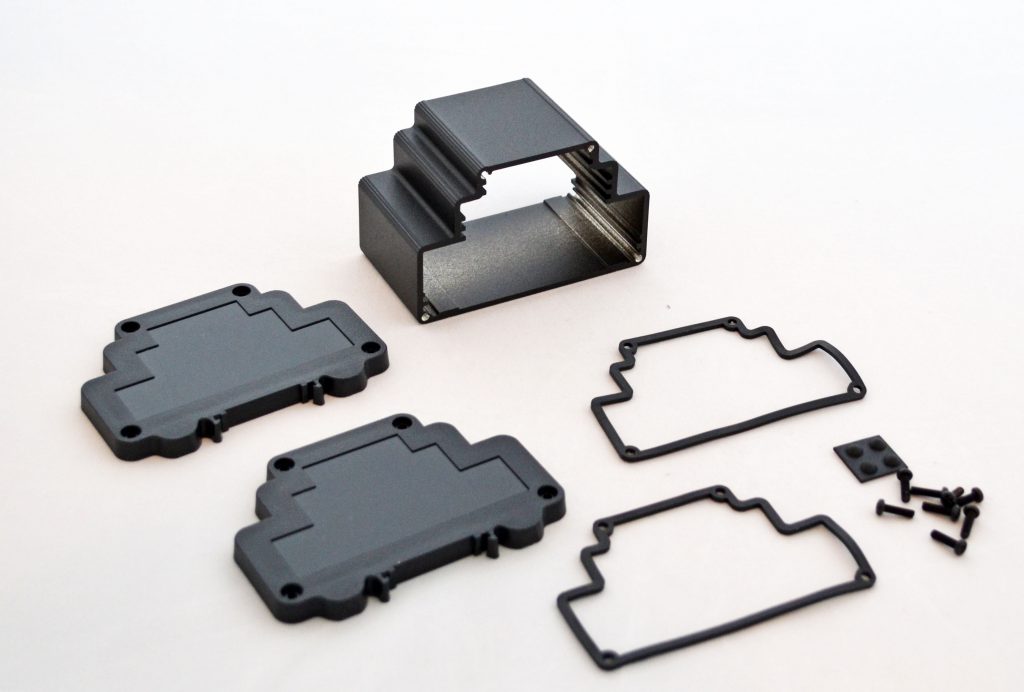

Model # DMX-4778-B DMX Extruded Aluminum DIN Rail Enclosure
  • Designed to mount over a DIN rail while offering all the advantages of an aluminum construction
  • Comes standard with an EPDM gasket (IP66) and a polycarbonate covers UL94-V0
  • Extruded aluminum enclosure with plastic panels
  • Can be used independently or mounted on a DIN EN60715 (35 mm) rail
  • Plastic panels incorporate a tongue and groove sealing design, with a continuous EPDM gasket designed to meet IP66 rating
  • Body: Aluminum alloy 6063
  • Plastic end panels: Polycarbonate, flammability rating of UL94-V0
  • Gasket: EPDM molded (E-4382)
  • Color: Black (RAL9005)
  • Different length of the aluminum enclosure can be special ordered (minimum ordering quantity will be required)
  • Optional clear and infrared polycarbonate plastic covers available
  • Bud can modify the enclosure with drilled holes and special cutouts


See Other Models Search by Size See Accessories Check Stock / Pricing
External Size H x W x D: 3.87" x 2.38" x 2.72"
Weight: 0.37 lbs
Color: Black
hbdmx.pdf hbdmx.dxf
