Name: Fiberglass Enclosure with Stainless-Steel Latch NFL-6631
Brand: Bud Industries
Availability: InStock

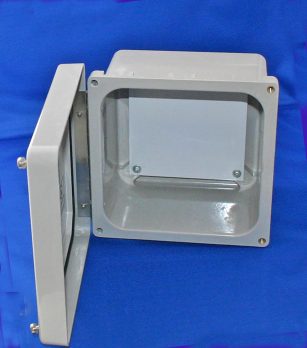

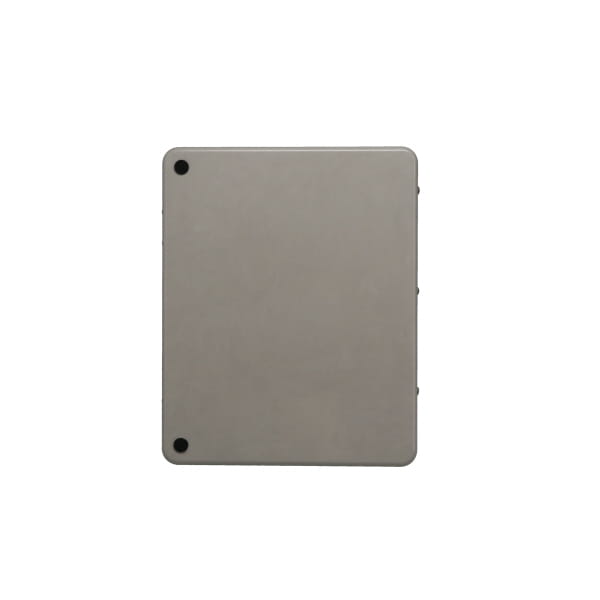

Fiberglass Enclosure with Stainless Steel Latch NFL-6631

Model # NFL-6631 NFL Series Fiberglass Enclosure

Durable and easy-to-machine fiberglass-reinforced polyester plastic
Features stainless-steel latch type lid closure
Provides outstanding protection against corrosion
Chemical resistant and impervious to dents
Designed to meet NEMA 1, 2, 4, 4X, 12, 13, and IP65 specifications
Stainless steel hinge, screws, and wall mounting brackets
Includes powder coated 14 ga. steel removable inner panel
UL listed and tested to UL508-4X requirements – UL File E194432
Finish: Light Gray

Check Stock / Pricing Estimate Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 9.64" x 7.76" x 4.48"

Internal Size L x W x D: 7.90" x 6.00" x 4.21"

Weight: 4 lbs

Color: Light Gray

RoHS Certified: Always Compliant

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13

IP Rating: IP65

Mounting Style: Mounting Brackets

Cover Style: Opaque, Hinged Cover

Latch Style: Stainless Steel

Gasket Type: Silicone Sponge

Type of Plastic: 30% Fiberglass-Reinforced Polyester

Door Type of Plastic: 30% Fiberglass-Reinforced Polyester

UL Rating: UL508

Use Gallery Photo: true

If you’re looking for a 30% Fiberglass-Reinforced Polyester NEMA rated or IP rated enclosure for a printed circuit board (PCB) that measures 7.90" x 6.00" x 4.21", then this enclosure is an excellent choice.

Drawing

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
NFL-6632	11.78" x 9.90" x 6.48" 11.789.906.48	9.96" x 8.12" x 6.21"
NFL-6633	13.74" x 11.94" x 6.47" 13.7411.946.47	11.96" x 10.16" x 6.20"
NFL-6634	15.79" x 13.89" x 6.47" 15.7913.896.47	13.74" x 11.84" x 6.20"
NFL-6630	7.74" x 7.74" x 4.57" 7.747.744.57	6.00" x 6.00" x 4.30"
NFL-6631	9.64" x 7.76" x 4.48" 9.647.764.48	7.90" x 6.00" x 4.21"
