NEMA / IP Rated Boxes

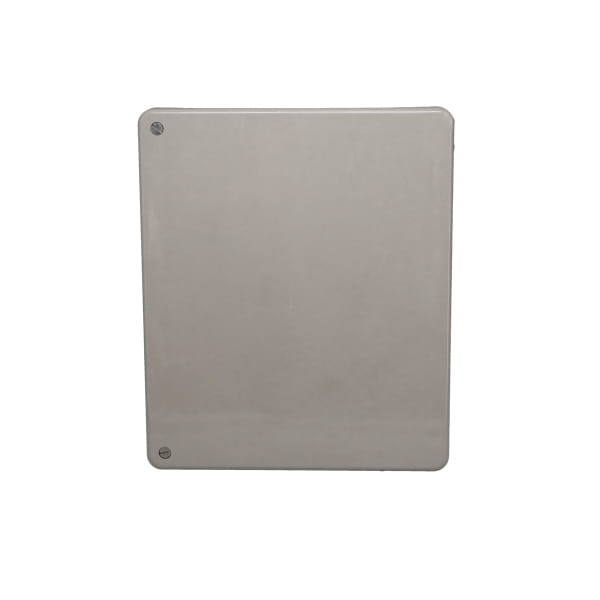

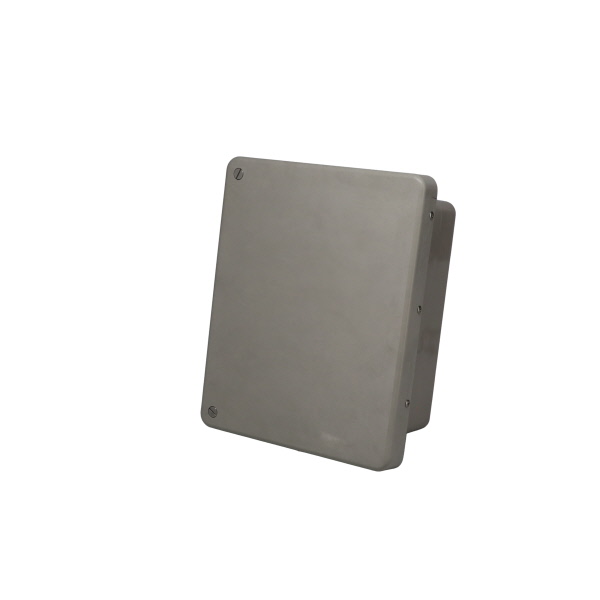

NF Series Fiberglass Enclosure

The NF Series of fiberglass enclosures features a hinged cover that secures with screws. Its fiberglass plastic construction is impervious to dents and resists most common chemicals. Wall mounting brackets are included. For easy installation of components, a powder-coated 14-gauge steel removable inner panel is included. Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65  specifications.

Filter Models

Fiberglass Enclosure with Hinged Screw-Down Cover NF-6610

NF Series Fiberglass Enclosure
Model # NF-6610
External Size L x W x D: 7.74" x 7.74" x 4.5"
Internal Size L x W x D: 6" x 6" x 4.3"

Fiberglass Enclosure with Hinged Screw-Down Cover NF-6611

NF Series Fiberglass Enclosure
Model # NF-6611
External Size L x W x D: 9.64" x 7.76" x 4.5"
Internal Size L x W x D: 7.9" x 6" x 4.2"

Fiberglass Enclosure with Hinged Screw-Down Cover NF-6612

NF Series Fiberglass Enclosure
Model # NF-6612
External Size L x W x D: 11.78" x 9.9" x 6.5"
Internal Size L x W x D: 9.96" x 8.12" x 6.2"

Fiberglass Enclosure with Hinged Screw-Down Cover NF-6613

NF Series Fiberglass Enclosure
Model # NF-6613
External Size L x W x D: 13.78" x 11.9" x 6.5"
Internal Size L x W x D: 11.96" x 10.16" x 6.2"

Fiberglass Enclosure with Hinged Screw-Down Cover NF-6614

NF Series Fiberglass Enclosure
Model # NF-6614
External Size L x W x D: 15.79" x 13.89" x 6.5"
Internal Size L x W x D: 13.74" x 11.84" x 6.2"
