PTR-28494-C

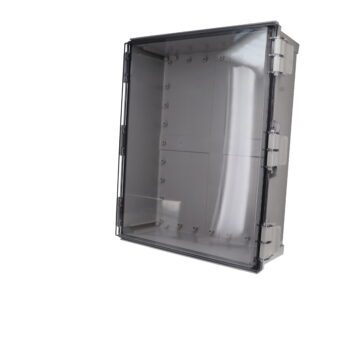

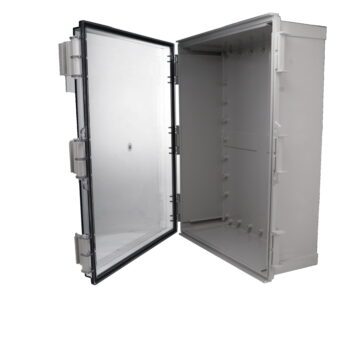

Hinged ABS Plastic Box Clear Cover PTR-28494-C
5 Day Modifications

Product Details

Model # PTR-28494-C PTR Series Hinged ABS Plastic Box
  • All plastic construction
  • Plastic locking latch and hinges
  • Low-cost quality enclosure series designed to perform well in indoor conditions
  • Optional steel or plastic internal panel (PTX-18494, PTX-18494-P)
  • Body made of gray ABS plastic
  • Cover made of clear polycarbonate plastic
  • High impact resistance
  • IP-67 certified TUV rating to keep out dust and water in extreme conditions
  • Meets NEMA Type 4X and type 6P (No UL certification)
  • ROHS compliant
  • UL-94 HB flammability rating
  • -20 C to +65 C extended exposure condition
  • Continuous poured-in-place neoprene foam gasket
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 15.70" x 19.70" x 6.30"
Internal Size L x W x D: 15.45" x 19.45" x 6.05"
Weight: 2.876 lbs
Color: Light Gray
RoHS Certified: Always Compliant
NEMA Rating: NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
IP Rating: IP67
Features: All Plastic Construction
Mounting Style: Mounting Brackets
Cover Style: Clear, Hinged Cover
Latch Style: Plastic
Gasket Type: RAKU-PUR® Foam Gasket
Knockouts: No Knockouts
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: Clear Polycarbonate
Service Temperature Min: -20°C
Service Temperature Max: 65°C
Hinge Location: Long Side

Drawing

PTR-28494-C Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Features Door Type of Plastic
PTR-28490 11.80" x 11.80" x 6.30" 11.811.86.3 11.55" x 11.55" x 6.05" All Plastic Construction ABS
PTR-28490-C 11.80" x 11.80" x 6.30" 11.811.86.3 11.55" x 11.55" x 6.05" All Plastic Construction Clear Polycarbonate
PTR-28486 11.80" x 7.90" x 5.10" 11.87.95.1 11.55" x 7.65" x 4.85" All Plastic Construction ABS
PTR-28486-C 11.80" x 7.90" x 5.10" 11.87.95.1 11.55" x 7.65" x 4.85" All Plastic Construction Clear Polycarbonate
PTR-28487 11.80" x 7.90" x 5.90" 11.87.95.9 11.55" x 7.65" x 5.65" All Plastic Construction ABS
PTR-28487-C 11.80" x 7.90" x 5.90" 11.87.95.9 11.55" x 7.65" x 5.65" All Plastic Construction Clear Polycarbonate
PTR-28489 13.80" x 9.80" x 6.30" 13.89.86.3 13.55" x 9.55" x 6.05" All Plastic Construction ABS
PTR-28489-C 13.80" x 9.80" x 6.30" 13.89.86.3 13.55" x 9.55" x 6.05" All Plastic Construction Clear Polycarbonate
PTR-28491 15.70" x 11.80" x 6.30" 15.711.86.3 15.45" x 11.55" x 6.05" All Plastic Construction ABS
PTR-28491-C 15.70" x 11.80" x 6.30" 15.711.86.3 15.45" x 11.55" x 6.05" All Plastic Construction Clear Polycarbonate
PTR-28492 15.70" x 11.80" x 7.10" 15.711.87.1 15.45" x 11.55" x 6.85" All Plastic Construction ABS
PTR-28492-C 15.70" x 11.80" x 7.10" 15.711.87.1 15.45" x 11.55" x 6.85" All Plastic Construction Clear Polycarbonate
PTR-28494-C 15.70" x 19.70" x 6.30" 15.719.76.3 15.45" x 19.45" x 6.05" All Plastic Construction Clear Polycarbonate
PTR-28494 15.70" x 19.70" x 6.30" 15.719.76.3 15.45" x 19.45" x 6.05" All Plastic Construction ABS
PTR-28495-C 15.70" x 19.70" x 7.90" 15.719.77.9 15.45" x 19.45" x 7.65" All Plastic Construction Clear Polycarbonate
PTR-28495 15.70" x 19.70" x 7.90" 15.719.77.9 15.45" x 19.45" x 7.65" All Plastic Construction ABS
PTR-28482-C 5.90" x 5.90" x 4.70" 5.95.94.7 5.65" x 5.65" x 4.45" All Plastic Construction Clear Polycarbonate
PTR-28482 5.90" x 5.90" x 4.70" 5.95.94.7 5.65" x 5.65" x 4.45" All Plastic Construction ABS
PTR-28483-C 8.30" x 6.30" x 3.90" 8.36.33.9 8.05" x 6.05" x 3.65" All Plastic Construction Clear Polycarbonate
PTR-28483 8.30" x 6.30" x 3.90" 8.36.33.9 8.05" x 6.05" x 3.65" All Plastic Construction ABS
