NEMA / IP Rated Boxes

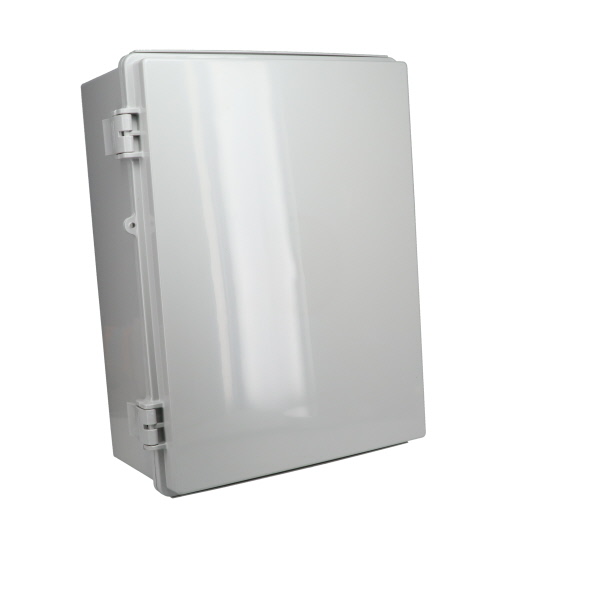

NBF Series NEMA Box

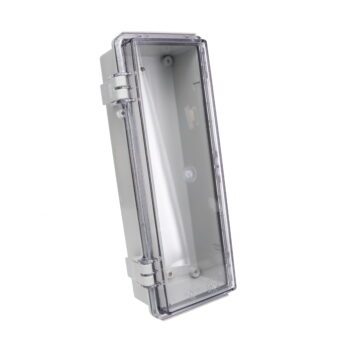

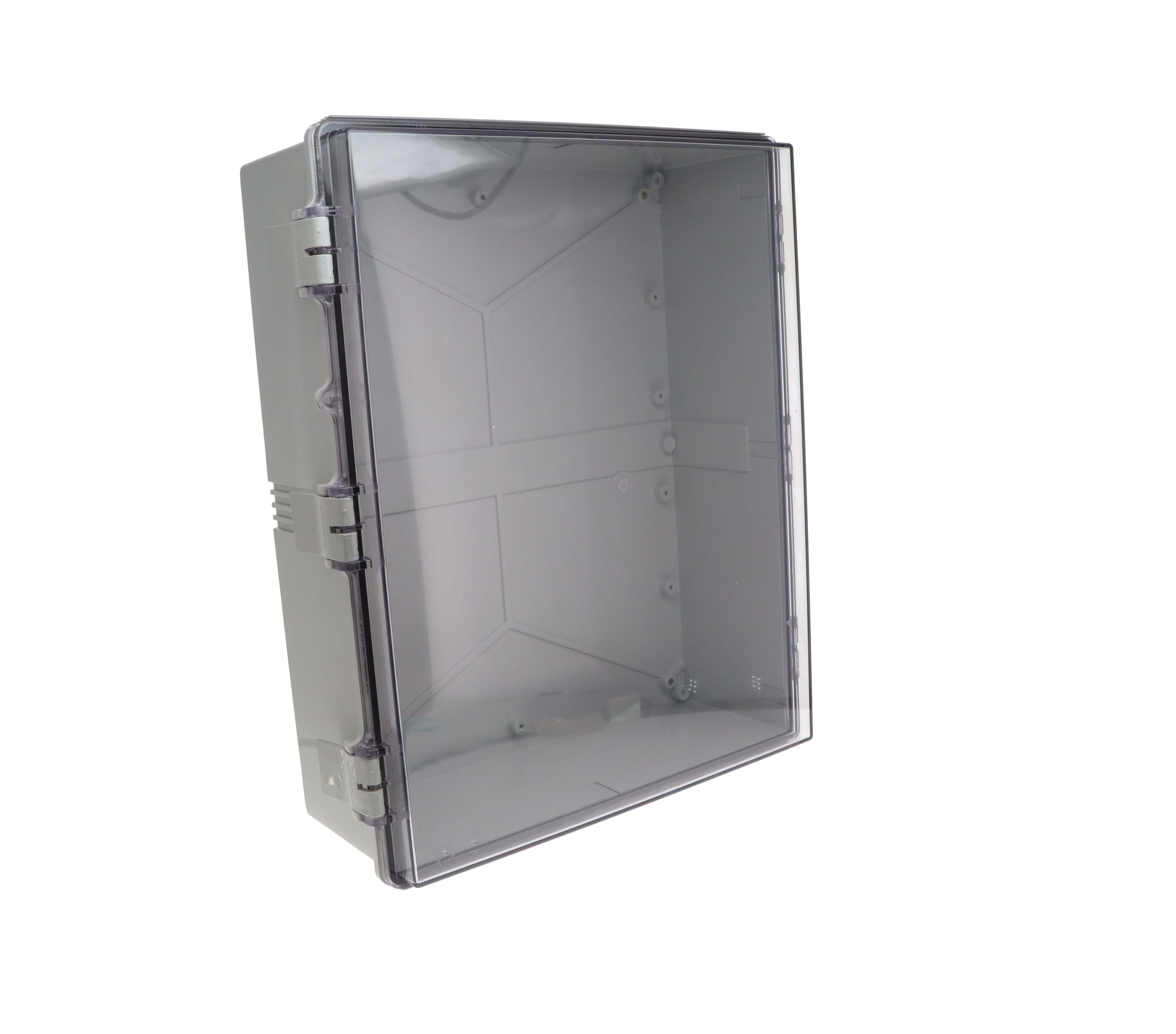

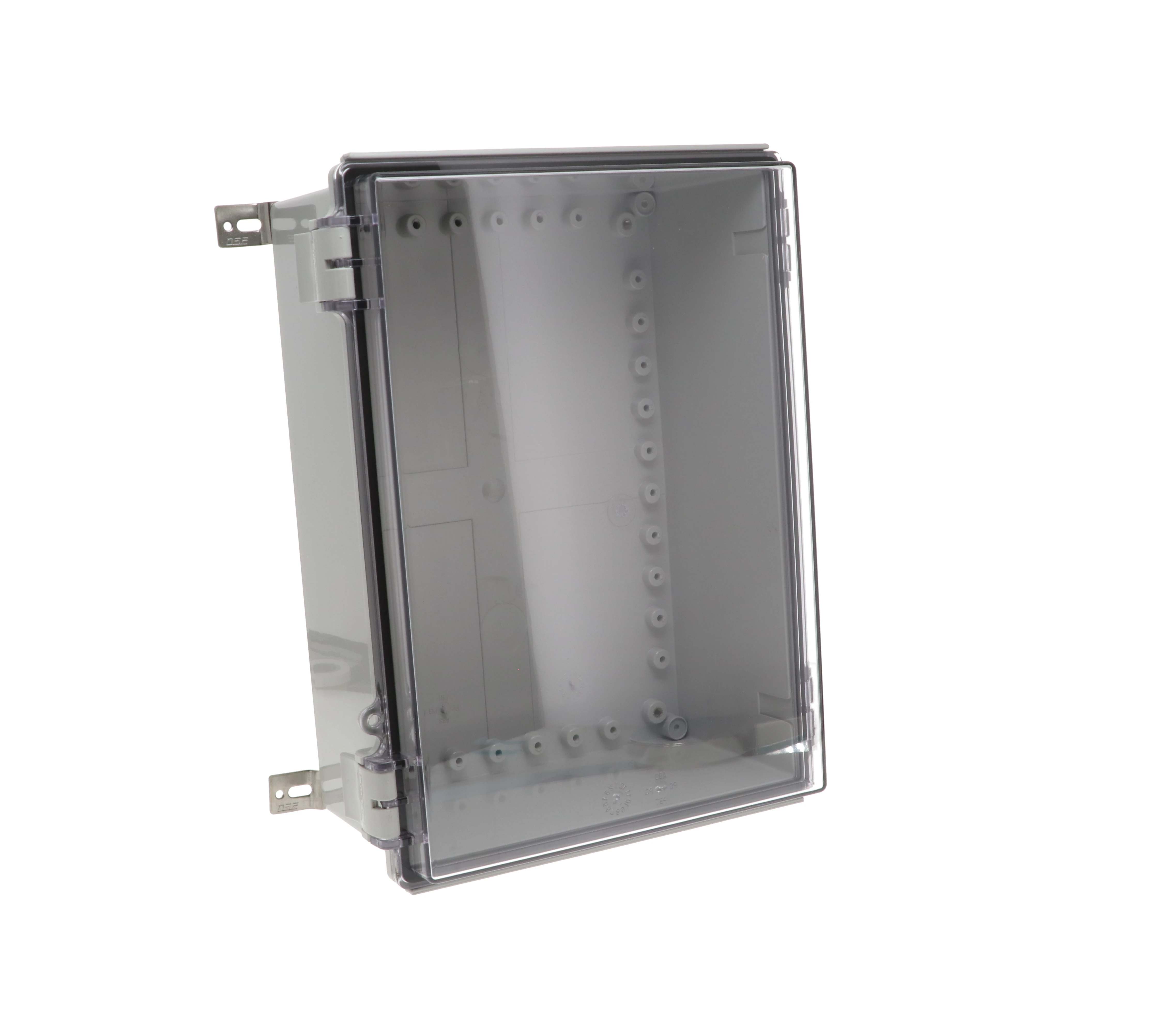

The NBF Series of NEMA boxes have plastic latches and hinges for an all-plastic construction. These gasketed enclosures meet NEMA 1, 2, 4 and 4x and IEC529-IP66 requirements, making them suitable for wet, dirty and/or corrosive environments. This versatile family includes indoor and outdoor versions, versions with clear covers, and an option for a padlockable steel latch. Depending on the model, they are made of ABS, ABS polycarbonate blend, or polycarbonate-PBT blend plastic.

Filter Models

NEMA Enclosure ABS Plastic NBF-32002

NBF Series NEMA Box
Model # NBF-32002
External Size L x W x D: 5.12" x 3.92" x 2.78"
Internal Size L x W x D: 4.37" x 3.11" x 2.27"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32004

NBF Series NEMA Box
Model # NBF-32004
External Size L x W x D: 5.90" x 3.92" x 2.78"
Internal Size L x W x D: 5.12" x 3.11" x 2.27"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32006

NBF Series NEMA Box
Model # NBF-32006
External Size L x W x D: 7.87" x 3.92" x 2.76"
Internal Size L x W x D: 7.06" x 3.11" x 2.53"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32008

NBF Series NEMA Box
Model # NBF-32008
External Size L x W x D: 10.63" x 3.92" x 2.76"
Internal Size L x W x D: 9.78" x 3.11" x 2.22"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32010

NBF Series NEMA Box
Model # NBF-32010
External Size L x W x D: 5.91" x 5.91" x 3.54"
Internal Size L x W x D: 5.26" x 5.26" x 3.03"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32012

NBF Series NEMA Box
Model # NBF-32012
External Size L x W x D: 8.33" x 6.36" x 3.94"
Internal Size L x W x D: 7.50" x 5.55" x 3.35"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32014

NBF Series NEMA Box
Model # NBF-32014
External Size L x W x D: 7.72" x 7.72" x 5.71"
Internal Size L x W x D: 6.99" x 6.99" x 5.16"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32016

NBF Series NEMA Box
Model # NBF-32016
External Size L x W x D: 11.99" x 7.99" x 5.22"
Internal Size L x W x D: 11.01" x 7.02" x 4.62"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32018

NBF Series NEMA Box
Model # NBF-32018
External Size L x W x D: 11.99" x 7.99" x 6.40"
Internal Size L x W x D: 11.02" x 7.02" x 5.81"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32020

NBF Series NEMA Box
Model # NBF-32020
External Size L x W x D: 11.99" x 7.99" x 8.01"
Internal Size L x W x D: 11.02" x 7.02" x 7.42"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32022

NBF Series NEMA Box
Model # NBF-32022
External Size L x W x D: 13.78" x 9.84" x 5.91"
Internal Size L x W x D: 12.82" x 8.88" x 5.32"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32024

NBF Series NEMA Box
Model # NBF-32024
External Size L x W x D: 13.78" x 9.84" x 7.09"
Internal Size L x W x D: 12.82" x 8.88" x 6.50"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32026

NBF Series NEMA Box
Model # NBF-32026
External Size L x W x D: 15.75" x 11.81" x 6.30"
Internal Size L x W x D: 14.73" x 10.79" x 5.69"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32028

NBF Series NEMA Box
Model # NBF-32028
External Size L x W x D: 17.72" x 13.78" x 6.42"
Internal Size L x W x D: 16.49" x 12.56" x 5.73"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32030

NBF Series NEMA Box
Model # NBF-32030
External Size L x W x D: 17.72" x 13.78" x 7.99"
Internal Size L x W x D: 16.49" x 12.56" x 7.30"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32032

NBF Series NEMA Box
Model # NBF-32032
External Size L x W x D: 19.69" x 15.75" x 6.30"
Internal Size L x W x D: 18.68" x 14.74" x 5.65"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32034

NBF Series NEMA Box
Model # NBF-32034
External Size L x W x D: 19.69" x 15.75" x 7.87"
Internal Size L x W x D: 18.63" x 14.69" x 7.22"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS

NEMA Enclosure ABS Plastic NBF-32036

NBF Series NEMA Box
Model # NBF-32036
External Size L x W x D: 20.95" x 17.05" x 6.30"
Internal Size L x W x D: 19.58" x 15.62" x 5.91"
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
