PTT-10478-C

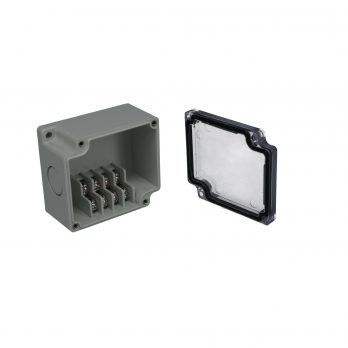

Junction Box 4 Side Terminal Blocks with Clear Cover PTT-10478-C

Product Details

Model # PTT-10478-C PTT Series Terminal Junction Box
  • 4 side terminal block box (65 x 74 x 43 mm)
  • Body made of gray ABS plastic; plastic made of clear polycarbonate plastic
  • Covers are easily removed for convenient processing
  • High impact resistance IK 07/08
  • Pre-molded knockouts outline 21mm for a cable gland PG11 to PG 13.5
  • IP 66/67 TUV rating to keep out dust and water in extreme conditions
  •  Suitable for indoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL746c
  • Continuous gasket
  • Surface treated steel terminal screws
  • Stainless cover screws
  • Flammability rating UL94 V-0
  • Rated insulation voltage 400V
  • Rated impulse voltage : 4kV
  • Rated current capacity: 0.75mm sq. – 1.5mm sq. (15 to 24 A)
  • Terminal wiring up to 16 AWG
  • Color: tint may have different hues of gray (green, blue)
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size L x W x D: 2.92" x 2.57" x 1.69"
Internal Size L x W x D: 2.68" x 2.32" x 1.46"
Weight: 0.506 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-V0
Type of Plastic: ABS
Door Type of Plastic: Clear Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 70°C
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X
IP Rating: 67
Features: Terminal Blocks
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 4 Side Terminal Blocks
hbptt10478.pdf hbptt10478.dxf

Drawing
