SPB-3904

Pushbutton Box SPB-3904
5 Day Modifications

Product Details

Model # SPB-3904 SPB Series Steel Pushbutton Box
  • Heavy duty 14 GA steel seam welded construction
  • Cover with captive screws and sealing washer
  • Cover screws thread into sealed nuts for additional sealing protection
  • Cover has oil resistant die-cut gasket for reliable and lasting protection against dust, water and oil
  • Cover supplied with four 22.5-mm four-way push button box holes
  • Welded ground nut inside body
  • External flanges with holes for wall mounting
  • Durable ANSI 61 Grey Powder coating
  • Designed to comply with NEMA and UL-508A Type 4, 12 and 13 rating
  • UL listed
 Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing
External Size L x W x D: 10.25" x 3.25" x 2.75"
Internal Size L x W x D: 8.87" x 2.75" x 2.77"
Weight: 3.6 lbs
Color: Gray Powder Coat
RoHS Certified: Always Compliant
Features: Pushbutton Holes
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 12, NEMA 13
Features: Pushbutton Holes
Cover Style: Screw Down Cover
hbspb3904.pdf hbspb3904.dxf file/d/1_fMfebZG_Eh-YGrHY_IassndrMYi-ESY/view?usp=drivesdk

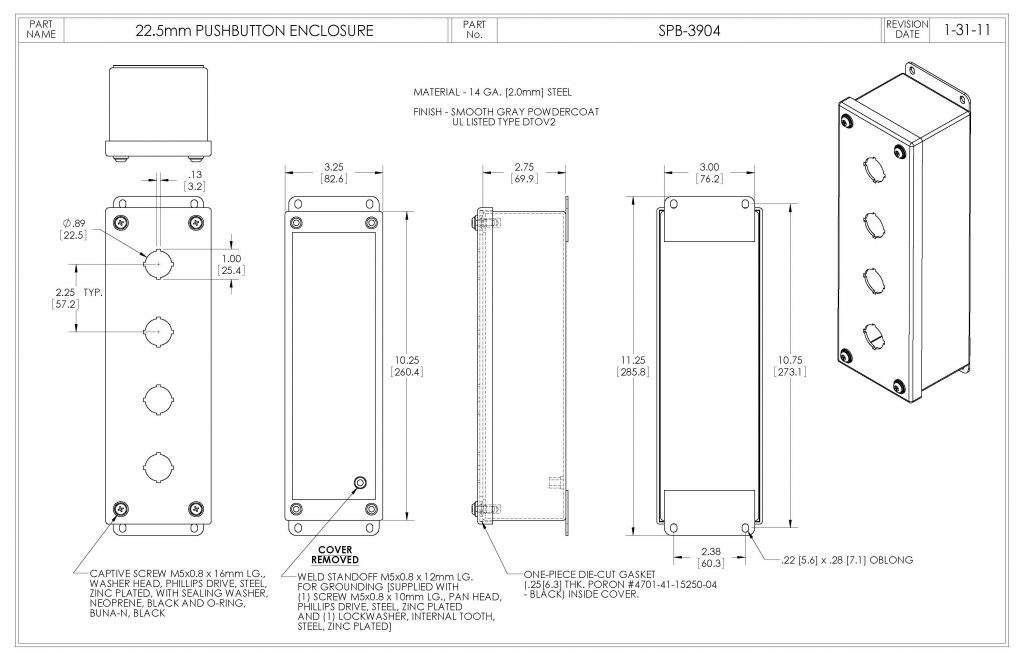

Drawing

SPB-3904 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
SPB-3904 10.25" x 3.25" x 2.75" 10.253.252.75 8.87" x 2.75" x 2.77"
SPB-3924 10.25" x 3.25" x 2.75" 10.253.252.75 8.87" x 2.75" x 2.77"
SPB-3901 3.50" x 3.25" x 2.75" 3.503.252.75 2.75" x 2.75" x 2.77"
SPB-3921 3.50" x 3.25" x 2.75" 3.503.252.75 2.75" x 2.75" x 2.77"
SPB-3902 5.75" x 3.25" x 2.75" 5.753.252.75 4.37" x 2.75" x 2.77"
SPB-3922 5.75" x 3.25" x 2.75" 5.753.252.75 4.37" x 2.75" x 2.77"
SPB-3903 8.00" x 3.25" x 2.75" 8.003.252.75 6.62" x 2.75" x 2.77"
SPB-3923 8.00" x 3.25" x 2.75" 8.003.252.75 6.62" x 2.75" x 2.77"
