ARR-1296-B

Aluminum Relay Rack Black ARR-1296-B

Product Details

Model # ARR-1296-B ARR Series Aluminum Relay Rack
  • ARR is ideal for installation where easy access to components is a top priority. Each built for years of solid, trouble-free service, as well as obvious ease of service where frequent attention is desired (i.e. telephone switching systems, etc.).
  • Rack is shipped knocked down in one (1) carton, with all necessary assembly hardware included.
  • Smooth Black powder coat finish (textured discontinued)
 Compare Sizes and Models Request Modifications Check Stock / Pricing
External Size H x W x D: 49.94" x 24.25" x 15.00"
Internal Size H x W x D: 42.00" x 23.00" x 9.00"
Weight: 30 lbs
Color: Black Smooth Powder Coated
Panel Space Width: 23.00
Panel Space Height: 42.00
Assembly: Knockdown
Ships Knockdown: Yes
hb1276nf.pdf hb1276nf.dxf file/d/1tMKcEDpj2p6ogpSvQbQwHVpD07ZV2mnT/view?usp=drivesdk

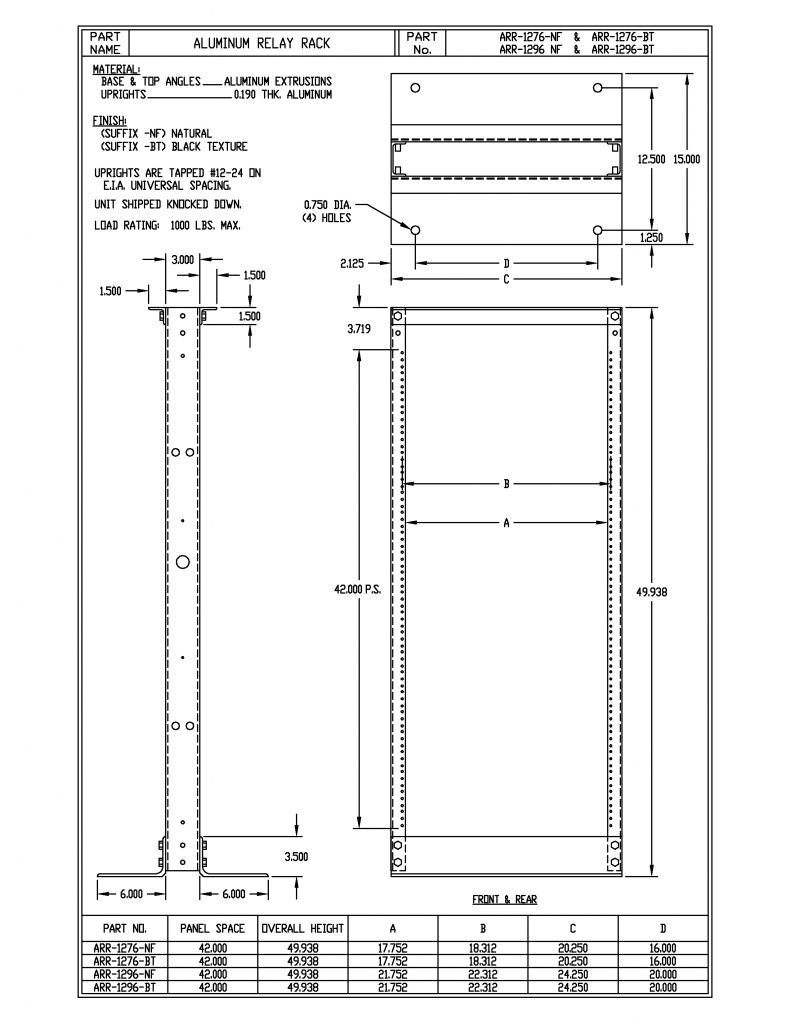

Drawing

ARR-1296-B Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
ARR-1276-B 49.94" x 20.25" x 15.00" 49.9420.2515.00 42.00" x 19.00" x 9.00"
ARR-1276-NF 49.94" x 20.25" x 15.00" 49.9420.2515.00 42.00" x 19.00" x 9.00"
ARR-1296-B 49.94" x 24.25" x 15.00" 49.9424.2515.00 42.00" x 23.00" x 9.00"
ARR-1296-NF 49.94" x 24.25" x 15.00" 49.9424.2515.00 42.00" x 23.00" x 9.00"
ARR-1272-B 84.06" x 20.25" x 15.00" 84.0620.2515.00 77.00" x 19.00" x 9.00"
ARR-1272-NF 84.06" x 20.25" x 15.00" 84.0620.2515.00 77.00" x 19.00" x 9.00"
ARR-1294-B 84.06" x 24.25" x 15.00" 84.0624.2515.00 77.00" x 23.00" x 9.00"
ARR-1294-NF 84.06" x 24.25" x 15.00" 84.0624.2515.00 77.00" x 23.00" x 9.00"
