RR-1264-MG

19 Inch Open Rack with 3 Inch Deep Posts Metallic Gray RR-1264-MG
  • RR 1263 Series Open 19 inch Rack

Product Details

Model # RR-1264-MG RR 1263 Series Open 19 Inch Rack
  • Exceptionally strong structure made up of chassis-type base and supporting angles
  • Uprights: .11″ steel channels, 3.00″ deep
  • top plate, 1.12″ x 3.12″
  • Rails tapped #10-32 on EIA universal spacing. (Use #7346 screws – order separately)
  • Base is 19.96″ x 22.00″ and drilled for RC-7758 casters
  • Racks have been tested to 650# equipment load capacity
  • Racks are shipped knocked down in two (2) cartons, with all necessary assembly hardware included
Check Stock / Pricing Request Modifications Compare Sizes and ModelsSee Accessories
External Size H x W x D: 70.64" x 19.97" x 22.00"
Internal Size H x W x D: 66.50" x 17.94" x 22.00"
Weight: 46 lbs
Color: Metallic Gray
Panel Space Width: 19.00
Panel Space Height: 66.50
Assembly: Knockdown
Ships Knockdown: Yes

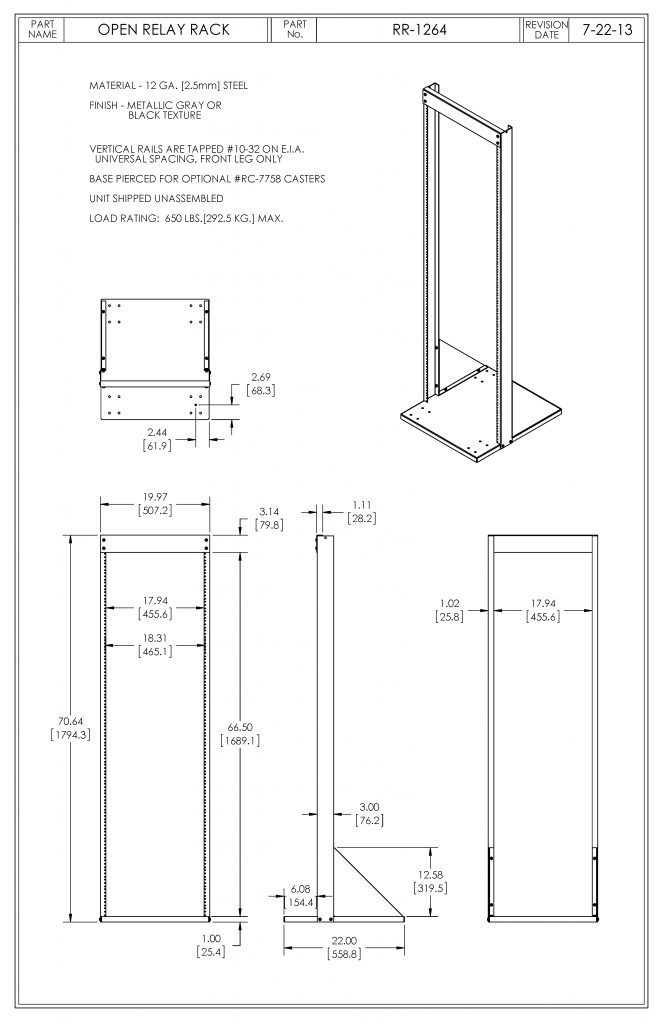

Drawing

Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
RR-1263-BT 35.63" x 19.97" x 22.00" 35.6319.9722.00 31.50" x 17.94" x 22.00"
RR-1263-MG 35.63" x 19.97" x 22.00" 35.6319.9722.00 31.50" x 17.94" x 22.00"
RR-1363-BT 40.89" x 19.97" x 22.00" 40.8919.9722.00 36.75" x 17.94" x 3.00"
RR-1363-MG 40.89" x 19.97" x 22.00" 40.8919.9722.00 36.75" x 17.94" x 3.00"
RR-1264-BT 70.64" x 19.97" x 22.00" 70.6419.9722.00 66.50" x 17.94" x 22.00"
RR-1264-MG 70.64" x 19.97" x 22.00" 70.6419.9722.00 66.50" x 17.94" x 22.00"
RR-1364-BT 75.63" x 19.97" x 22.00" 75.6319.9722.00 71.75" x 17.94" x 3.00"
RR-1364-MG 75.63" x 19.97" x 22.00" 75.6319.9722.00 71.75" x 17.94" x 3.00"
RR-1366-BT 81.13" x 19.97" x 22.00" 81.1319.9722.00 77.00" x 17.94" x 3.00"
RR-1366-MG 81.13" x 19.97" x 22.00" 81.1319.9722.00 77.00" x 17.94" x 3.00"
