General Use Boxes

Utilibox Style J Series Utility Boxes

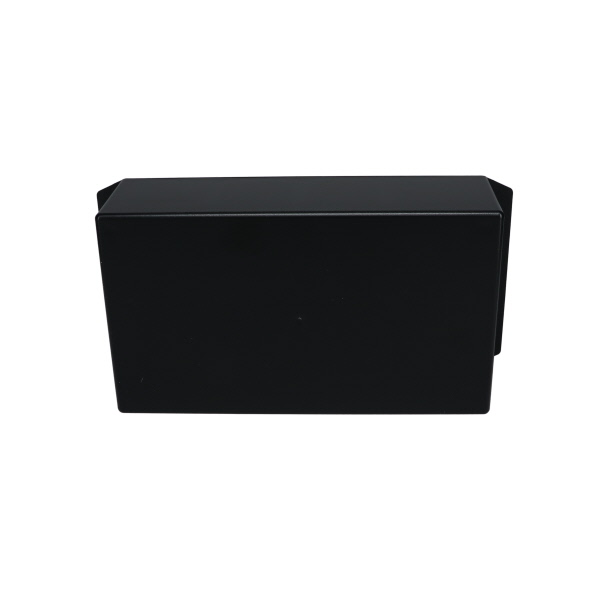

The Utilibox family is the ultimate value in plastic utility boxes used for housing electronics. Utilibox Style J Series boxes are made of ABS plastic and feature both horizontal and vertical card guides.  A grid pattern on the underside of the cover provides reference points for modification. Models ending in MB have mounting flanges.

Filter Models

Utilibox Style J Plastic Utility Box CU-1941

Utilibox Style J Series Utility Boxes
Model # CU-1941
External Size L x W x D: 3.27" x 2.13" x 1.2"
Internal Size L x W x D: 3.1" x 1.96" x 1.06"
Mounting Style:

Utilibox Style J Plastic Utility Box with Mounting Flanges CU-1941-MB

Utilibox Style J Series Utility Boxes
Model # CU-1941-MB
External Size L x W x D: 3.27" x 2.13" x 1.2"
Internal Size L x W x D: 3.1" x 1.96" x 1.06"
Mounting Style: Mounting Flanges

Utilibox Style J Plastic Utility Box CU-1943

Utilibox Style J Series Utility Boxes
Model # CU-1943
External Size L x W x D: 5.12" x 2.68" x 1.71"
Internal Size L x W x D: 4.88" x 2.43" x 1.54"
Mounting Style:

Utilibox Style J Plastic Utility Box with Mounting Flanges CU-1943-MB

Utilibox Style J Series Utility Boxes
Model # CU-1943-MB
External Size L x W x D: 5.12" x 2.68" x 1.71"
Internal Size L x W x D: 4.88" x 2.43" x 1.54"
Mounting Style: Mounting Flanges

Utilibox Style J Plastic Utility Box CU-1945

Utilibox Style J Series Utility Boxes
Model # CU-1945
External Size L x W x D: 6.21" x 3.76" x 2.09"
Internal Size L x W x D: 5.93" x 3.47" x 1.87"
Mounting Style:

Utilibox Style J Plastic Utility Box with Mounting Flanges CU-1945-MB

Utilibox Style J Series Utility Boxes
Model # CU-1945-MB
External Size L x W x D: 6.21" x 3.76" x 2.09"
Internal Size L x W x D: 5.93" x 3.47" x 1.87"
Mounting Style: Mounting Flanges

Utilibox Style J Plastic Utility Box CU-1947

Utilibox Style J Series Utility Boxes
Model # CU-1947
External Size L x W x D: 7.77" x 4.45" x 2.48"
Internal Size L x W x D: 7.44" x 4.12" x 2.26"
Mounting Style:

Utilibox Style J Plastic Utility Box with Mounting Flanges CU-1947-MB

Utilibox Style J Series Utility Boxes
Model # CU-1947-MB
External Size L x W x D: 7.77" x 4.45" x 2.48"
Internal Size L x W x D: 7.44" x 4.12" x 2.26"
Mounting Style: Mounting Flanges
