NEMA / IP Rated Boxes

CN Series Die Cast Aluminum Enclosure

The CN series of diecast aluminum enclosures are highly durable yet affordable. With NEMA 1, 2, 4, 4X, 12, 13 and IP66 requirements, this diecast aluminum enclosure can protect against most traditional elements. Also, many models in this diecast aluminum enclosure series have internal card guides for PCB mounting or partitioning. For CN Series diecast aluminum enclosures with mounting flanges, see them here.

Filter Models

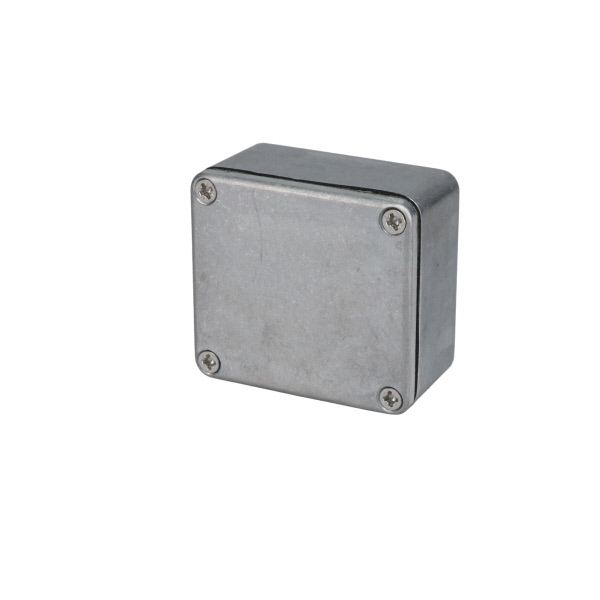

Die Cast Aluminum Enclosure CN-5700

CN Series Die Cast Aluminum Enclosure
Model # CN-5700
External Size L x W x D: 2.36" x 2.16" x 1.22"
Internal Size L x W x D: 2.07" x 1.87" x 1.11"

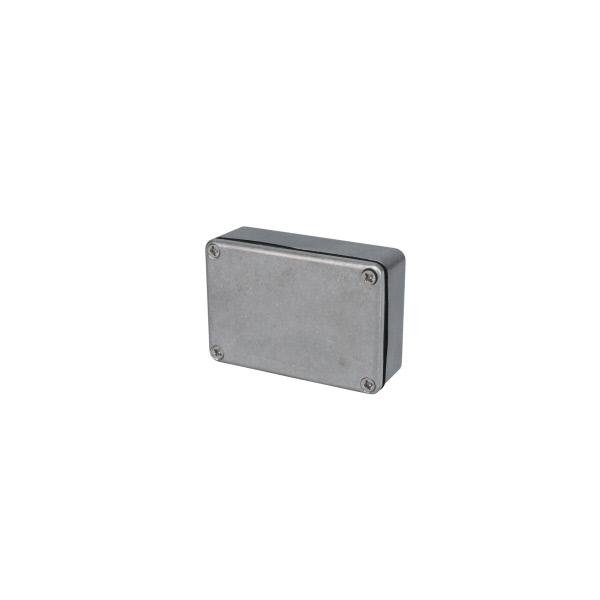

Diecast Aluminum Enclosure CN-5701

CN Series Die Cast Aluminum Enclosure
Model # CN-5701
External Size L x W x D: 3.15" x 2.16" x 1"
Internal Size L x W x D: 2.87" x 1.88" x 0.88"

Die Cast Aluminum Enclosure CN-5702

CN Series Die Cast Aluminum Enclosure
Model # CN-5702
External Size L x W x D: 3.52" x 1.38" x 1.22"
Internal Size L x W x D: 3.31" x 1.17" x 1.1"

Die Cast Aluminum Enclosure CN-5703

CN Series Die Cast Aluminum Enclosure
Model # CN-5703
External Size L x W x D: 4.51" x 2.5" x 1.22"
Internal Size L x W x D: 4.3" x 2.3" x 1.1"

Die Cast Aluminum Enclosure CN-5704

CN Series Die Cast Aluminum Enclosure
Model # CN-5704
External Size L x W x D: 4.51" x 2.5" x 2.22"
Internal Size L x W x D: 4.25" x 2.25" x 2.1"

Die Cast Aluminum Enclosure CN-5705

CN Series Die Cast Aluminum Enclosure
Model # CN-5705
External Size L x W x D: 4.54" x 3.57" x 2.22"
Internal Size L x W x D: 4.29" x 3.3" x 2.08"

Die Cast Aluminum Enclosure CN-5706

CN Series Die Cast Aluminum Enclosure
Model # CN-5706
External Size L x W x D: 4.73" x 3.95" x 1.44"
Internal Size L x W x D: 4.51" x 3.73" x 1.3"

Die Cast Aluminum Enclosure CN-5707

CN Series Die Cast Aluminum Enclosure
Model # CN-5707
External Size L x W x D: 5.47" x 4.01" x 3.05"
Internal Size L x W x D: 5.17" x 3.7" x 2.91"

Die Cast Aluminum Enclosure CN-5708

CN Series Die Cast Aluminum Enclosure
Model # CN-5708
External Size L x W x D: 6.51" x 5.01" x 3.05"
Internal Size L x W x D: 6.08" x 4.58" x 2.91"

Die Cast Aluminum Enclosure CN-5709

CN Series Die Cast Aluminum Enclosure
Model # CN-5709
External Size L x W x D: 6.78" x 4.77" x 2.22"
Internal Size L x W x D: 6.52" x 4.51" x 2.09"

Die Cast Aluminum Enclosure CN-5710

CN Series Die Cast Aluminum Enclosure
Model # CN-5710
External Size L x W x D: 6.78" x 4.77" x 4.21"
Internal Size L x W x D: 6.41" x 4.41" x 4.08"

Die Cast Aluminum Enclosure CN-5711

CN Series Die Cast Aluminum Enclosure
Model # CN-5711
External Size L x W x D: 8.75" x 5.74" x 2.25"
Internal Size L x W x D: 8.49" x 5.48" x 2.12"

Die Cast Aluminum Enclosure CN-5712

CN Series Die Cast Aluminum Enclosure
Model # CN-5712
External Size L x W x D: 8.75" x 5.74" x 4.22"
Internal Size L x W x D: 8.39" x 5.38" x 4.08"

Die Cast Aluminum Enclosure CN-5713

CN Series Die Cast Aluminum Enclosure
Model # CN-5713
External Size L x W x D: 9.85" x 9.85" x 4.01"
Internal Size L x W x D: 9.34" x 9.34" x 3.86"

Die Cast Aluminum Enclosure CN-5714

CN Series Die Cast Aluminum Enclosure
Model # CN-5714
External Size L x W x D: 10.81" x 6.89" x 2.64"
Internal Size L x W x D: 10.53" x 6.61" x 2.51"
