CN-5700

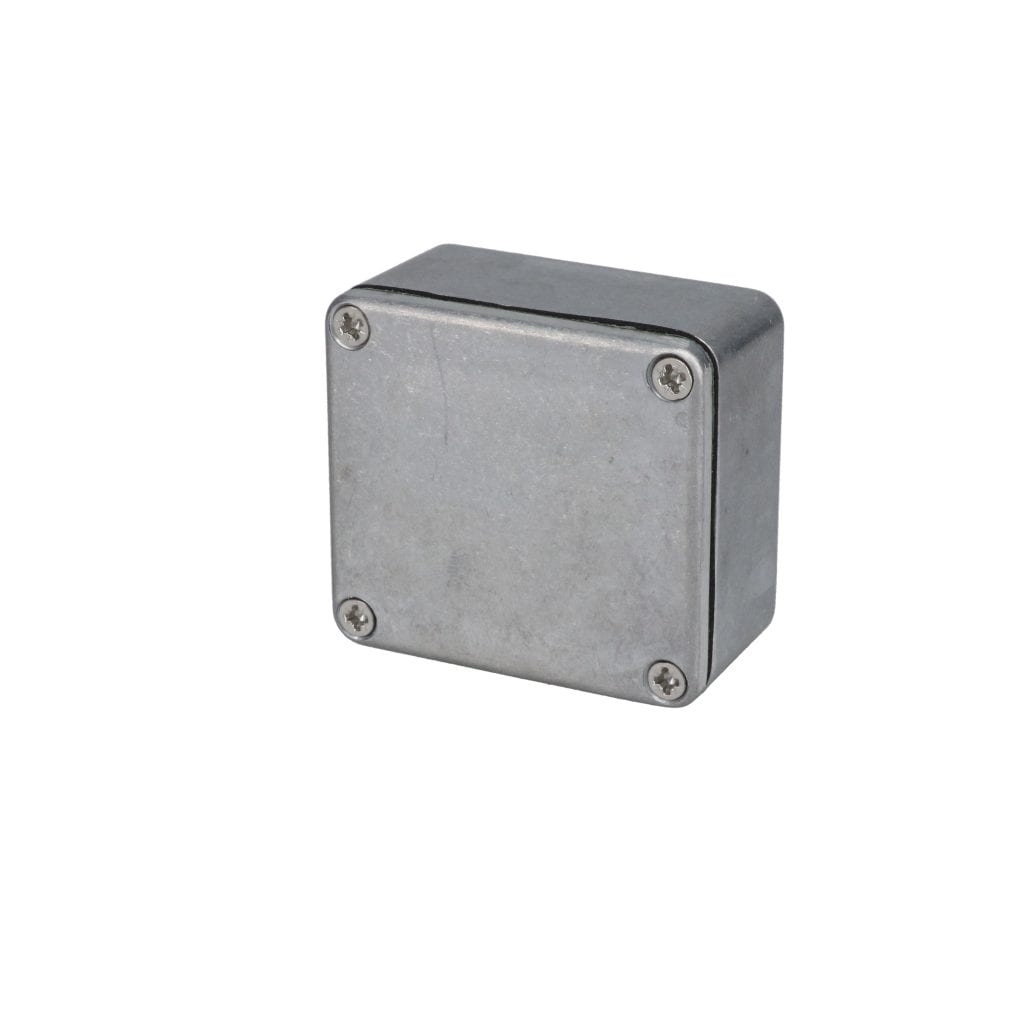

Die Cast Aluminum Enclosure CN-5700
  • die cast aluminum enclosure

Product Details

Model # CN-5700 CN Series Die Cast Aluminum Enclosure
  • Designed to meet NEMA 1, 2, 4, 4x, 12, 13 and IP66 ratings.
  • Made from durable ADC-12 aluminum alloy.
  • Self-adhesive Neoprene gasket easily attaches to cover.
  • Cover attaches with 4 or 6 stainless steel, M3.5 thread-forming screws.
  • Most models have internal card guides for mounting PC Boards or partitioning.
  • Easily machined and modified to your particular needs.
  • Finish: Natural (other finishes available upon request)
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 2.36" x 2.16" x 1.22"
Internal Size L x W x D: 2.07" x 1.87" x 1.11"
Weight: 0.16 lbs
Color: Natural
RoHS Certified: Always Compliant
Gasket Type: Neoprene
Card Guides: Yes
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: 66
Cover Style: Opaque, Screw Down Cover
hb5700.pdf hb5700.dxf

Drawing
