DMX Extruded Aluminum DIN Rail Enclosure

This handsome series of enclosures can be used independently or mounted via a DIN rail. Made of extruded aluminum body and polycarbonate plastic end covers, it offers the convenience of DIN rail mounting and all the advantages of aluminum construction. An EPDM gasket enables it to achieve an IP66 rating. Optional clear and infrared covers are available, making the line highly versatile for control applications. Different length of the aluminum enclosure can be special ordered (minimum ordering quantity will be required). Bud can modify the enclosure with drilled holes and special cutouts.

Filter Models

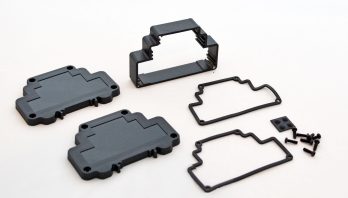

DIN Rail Extruded Aluminum Box DMX-4776-B

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4776-B
External Size H x W x D: 3.87" x 1.1" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4776-G

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4776-G
External Size H x W x D: 3.87" x 1.1" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4777-B

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4777-B
External Size H x W x D: 3.87" x 1.73" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4777-G

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4777-G
External Size H x W x D: 3.87" x 1.73" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4778-B

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4778-B
External Size H x W x D: 3.87" x 2.38" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4778-G

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4778-G
External Size H x W x D: 3.87" x 2.38" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4779-B

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4779-B
External Size H x W x D: 3.87" x 3.08" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4779-G

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4779-G
External Size H x W x D: 3.87" x 3.08" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4780-B

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4780-B
External Size H x W x D: 3.87" x 4.46" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4780-G

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4780-G
External Size H x W x D: 3.87" x 4.46" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4781-B

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4781-B
External Size H x W x D: 3.87" x 6.56" x 2.72"

DIN Rail Extruded Aluminum Box DMX-4781-G

DMX Extruded Aluminum DIN Rail Enclosure
Model # DMX-4781-G
External Size H x W x D: 3.87" x 6.56" x 2.72"
