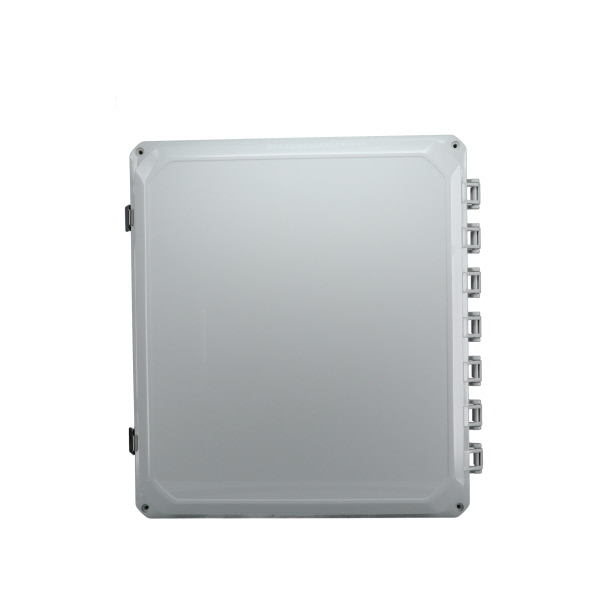

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE

  • Rated NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 12 & 13 rated (NEMA 6/6P rated only when using optional screw close configuration)
  • Rated IP65, IP66 (IP67/IP68 rated only when using optional screw close configuration)
  • Impact-resistant polycarbonate UL94-5VA
  • Continuous gasket for a watertight seal
  • Designed for outdoor use: weatherproof, waterproof and corrosion-resistant
  • Enclosure come with standard plastic mounting brackets included(DPX-100KIT)
  • Hinged cover with stainless steel hardware
  • Stainless steel latch with area for padlock
  • Modular mounting bosses in base for panel and DIN rail mounting
  • 2 Flexible height mounting of internal panel with included mounting kit accessory (DPX-444KIT)
  • 2 panels to use with Additional mounting bosses at top of base and inside the cover
  • Optional Multi-directional mounting flanges for horizontal or vertical orientation
  • RoHs and REACH Compliant

MOUNTING FLANGE SELECTION GUIDE

Filter Models

DPH-28706 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28706
External Size L x W x D: 7.04" x 5.04" x 4.83"
Internal Size L x W x D: 6.04" x 4.04" x 3.97"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

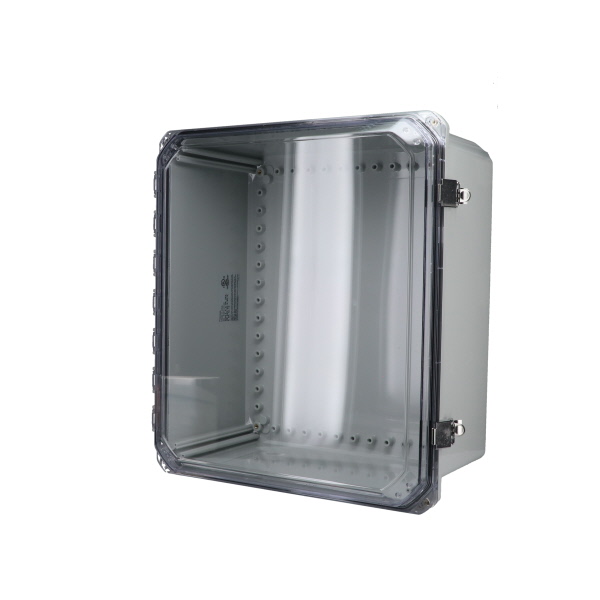

DPH-28706-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28706-C
External Size L x W x D: 7.04" x 5.04" x 4.83"
Internal Size L x W x D: 6.04" x 4.04" x 3.97"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28707 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28707
External Size L x W x D: 7.04" x 7.04" x 5.72"
Internal Size L x W x D: 6.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28707-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28707-C
External Size L x W x D: 7.04" x 7.04" x 5.72"
Internal Size L x W x D: 6.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28708 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28708
External Size L x W x D: 9.04" x 7.04" x 5.72"
Internal Size L x W x D: 8.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28708-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28708-C
External Size L x W x D: 9.04" x 7.04" x 5.72"
Internal Size L x W x D: 8.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28709 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28709
External Size L x W x D: 9.04" x 9.04" x 5.72"
Internal Size L x W x D: 8.04" x 8.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28709-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28709-C
External Size L x W x D: 9.04" x 9.04" x 5.72"
Internal Size L x W x D: 8.04" x 8.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28710 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28710
External Size L x W x D: 11.04" x 9.04" x 5.22"
Internal Size L x W x D: 10.04" x 8.04" x 4.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28710-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28710-C
External Size L x W x D: 11.04" x 9.04" x 5.22"
Internal Size L x W x D: 10.04" x 8.04" x 4.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28711 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28711
External Size L x W x D: 11.04" x 9.04" x 7.72"
Internal Size L x W x D: 10.04" x 8.04" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28711-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28711-C
External Size L x W x D: 11.04" x 9.04" x 7.72"
Internal Size L x W x D: 10.04" x 8.04" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28712 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28712
External Size L x W x D: 17.24" x 15.20" x 8.75"
Internal Size L x W x D: 16.24" x 14.20" x 7.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28712-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28712-C
External Size L x W x D: 17.24" x 15.20" x 8.75"
Internal Size L x W x D: 16.24" x 14.20" x 7.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28713 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28713
External Size L x W x D: 15.24" x 13.20" x 7.72"
Internal Size L x W x D: 14.24" x 12.20" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28713-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28713-C
External Size L x W x D: 15.24" x 13.20" x 7.72"
Internal Size L x W x D: 14.24" x 12.20" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28714 - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28714
External Size L x W x D: 13.24" x 11.20" x 7.70"
Internal Size L x W x D: 12.24" x 10.20" x 6.84"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPH-28714-C - Heavy duty NEMA 6P/IP68 hinged cover pc enclosure

DPH SERIES – HEAVY DUTY NEMA 6P/IP68 RATED HINGED COVER PC ENCLOSURE
Model # DPH-28714-C
External Size L x W x D: 13.24" x 11.20" x 7.70"
Internal Size L x W x D: 12.24" x 10.20" x 6.84"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68
