NEMA / IP Rated Boxes

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE

  • Rated NEMA 1, 2, 3, 3R, 3X, 3RX, 3S, 3SX, 4, 4X, 6/6P, 12 & 13
  • Rated IP65, IP66, IP67, IP68
  • Impact-resistant light gray polycarbonate UL94-5VA and UL94-V0
  • Service temperature -35c to 110c
  • Continuous Silicon gasket for a watertight seal
  • Designed for outdoor use: weatherproof, waterproof and corrosion-resistant
  • Enclosure come with standard plastic mounting brackets included (DPX-100-KIT)
  • Screw-on cover with stainless steel hardware
  • Modular mounting bosses in base for panel and DIN rail mounting
  • 2 floating configurations for internal panel with included mounting kit accessory (DPX-444-KIT)
  • 2 panels to use with Additional mounting bosses at top of base and inside the cover
  • Optional Multi-directional mounting flanges for horizontal or vertical orientation
  • RoHs and REACH Compliant

MOUNTING FLANGE SELECTION GUIDE

Filter Models

DPS-28706 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28706
External Size L x W x D: 7.04" x 5.04" x 4.83"
Internal Size L x W x D: 6.04" x 4.04" x 3.97"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

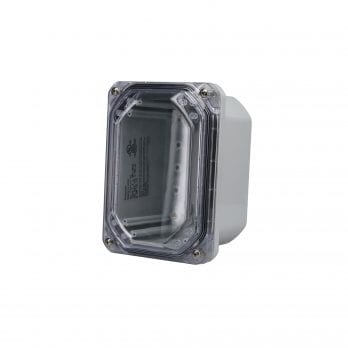

DPS-28706-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28706-C
External Size L x W x D: 7.04" x 5.04" x 4.83"
Internal Size L x W x D: 6.04" x 4.04" x 3.97"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

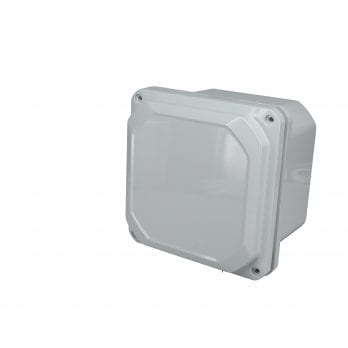

DPS-28707 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28707
External Size L x W x D: 7.04" x 7.04" x 5.72"
Internal Size L x W x D: 6.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28707-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28707-C
External Size L x W x D: 7.04" x 7.04" x 5.72"
Internal Size L x W x D: 6.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28708 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28708
External Size L x W x D: 9.04" x 7.04" x 5.72"
Internal Size L x W x D: 8.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28708-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28708-C
External Size L x W x D: 9.04" x 7.04" x 5.72"
Internal Size L x W x D: 8.04" x 6.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28709 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28709
External Size L x W x D: 9.04" x 9.04" x 5.72"
Internal Size L x W x D: 8.04" x 8.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28709-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28709-C
External Size L x W x D: 9.04" x 9.04" x 5.72"
Internal Size L x W x D: 8.04" x 8.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28710 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28710
External Size L x W x D: 11.04" x 9.04" x 5.22"
Internal Size L x W x D: 10.04" x 8.04" x 4.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28710-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28710-C
External Size L x W x D: 11.04" x 9.04" x 5.22"
Internal Size L x W x D: 10.04" x 8.04" x 4.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

IP68 NEMA 6P PC Enclosure for adjustable panel height DPS-28710-C

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28710-C
External Size L x W x D: 11.04" x 9.04" x 5.72"
Internal Size L x W x D: 10.04" x 8.04" x 4.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28711 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28711
External Size L x W x D: 11.04" x 9.04" x 7.72"
Internal Size L x W x D: 10.04" x 8.04" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28711-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28711-C
External Size L x W x D: 11.04" x 9.04" x 7.72"
Internal Size L x W x D: 10.04" x 8.04" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28712 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28712
External Size L x W x D: 17.24" x 15.24" x 8.75"
Internal Size L x W x D: 16.24" x 14.24" x 7.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28712-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28712-C
External Size L x W x D: 17.24" x 15.24" x 8.75"
Internal Size L x W x D: 16.24" x 14.24" x 7.89"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28713 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28713
External Size L x W x D: 15.24" x 13.24" x 7.72"
Internal Size L x W x D: 14.24" x 12.24" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28713-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28713-C
External Size L x W x D: 15.24" x 13.24" x 7.72"
Internal Size L x W x D: 14.24" x 12.24" x 6.86"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28714 - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28714
External Size L x W x D: 13.24" x 11.24" x 7.70"
Internal Size L x W x D: 12.24" x 10.24" x 6.84"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68

DPS-28714-C - Heavy duty NEMA 6P/IP68 screw cover pc enclosure

DPS SERIES – HEAVY DUTY NEMA 6P/IP68 SCREW COVER PC ENCLOSURE
Model # DPS-28714-C
External Size L x W x D: 13.24" x 11.24" x 7.70"
Internal Size L x W x D: 12.24" x 10.24" x 6.84"
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68
