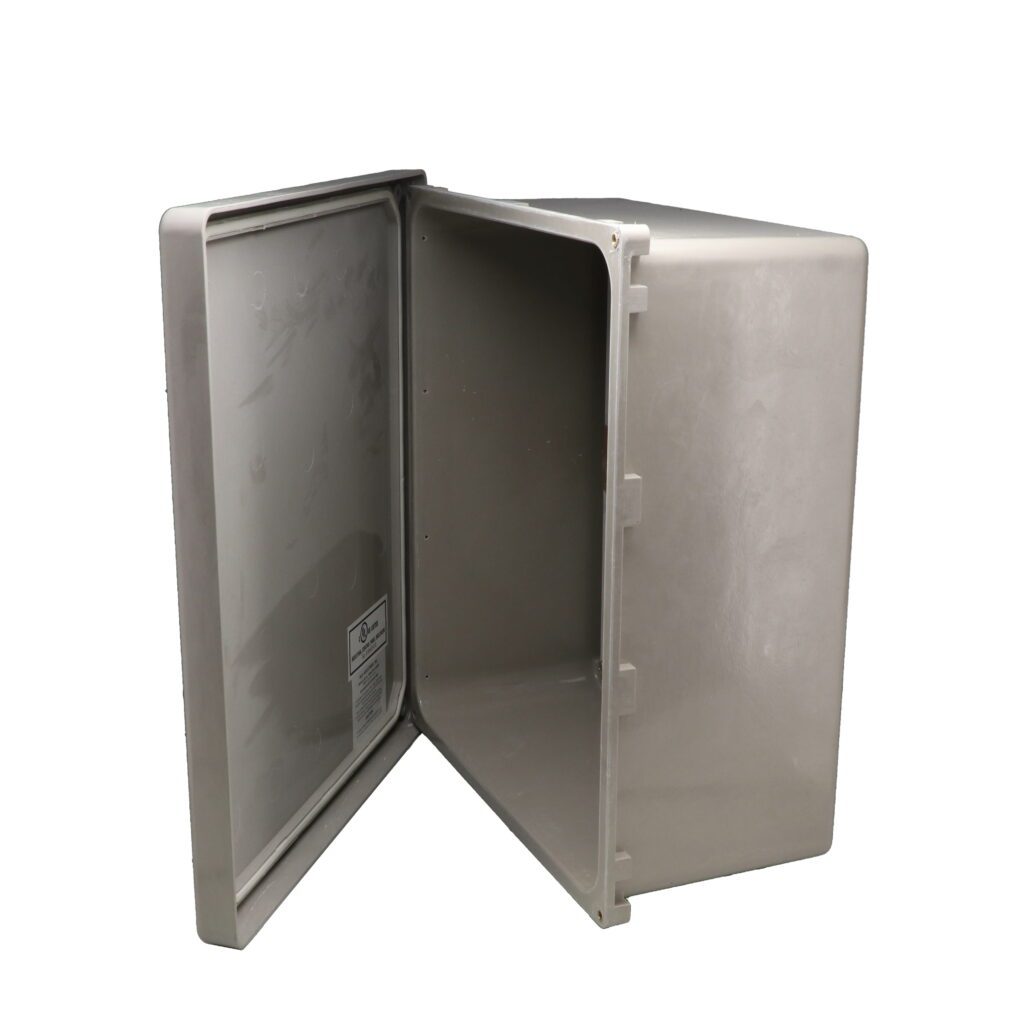

Fiberglass Enclosure with Hinged Screw-Down Cover NF-6614

5 Day Modifications

Model # NF-6614 NF Series Fiberglass Enclosure

Durable and easy to machine Fiberglass Reinforced Plastic
Features stainless steel screw type lid closure
Provides outstanding protection against corrosion
Chemical resistant and impervious to dents
Designed to meet NEMA 1, 2, 4, 4X, 12, 13, and IP65 specifications
Stainless steel hinge, screws, and wall mounting brackets
Includes powder coated 14 ga. steel removable inner panel
UL listed and tested to UL508-4X requirements – UL File E194432
Finish: Light Gray

Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing

External Size L x W x D: 15.79" x 13.89" x 6.47"

Internal Size L x W x D: 13.74" x 11.84" x 6.20"

Weight: 11 lbs

Color: Light Gray

RoHS Certified: Always Compliant

NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13

IP Rating: 65

Mounting Style: Mounting Brackets

Cover Style: Opaque, Screw Down Cover

Gasket Type: Silicone Sponge

Type of Plastic: Polycarbonate

Door Type of Plastic: Polycarbonate

UL Rating: UL508

Drawing

NF-6614 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
NF-6612	11.78" x 9.90" x 6.48" 11.789.906.48	9.96" x 8.12" x 6.20"
NF-6613	13.78" x 11.94" x 6.47" 13.7811.946.47	11.96" x 10.16" x 6.20"
NF-6614	15.79" x 13.89" x 6.47" 15.7913.896.47	13.74" x 11.84" x 6.20"
NF-6610	7.74" x 7.74" x 4.57" 7.747.744.57	6.01" x 6.01" x 4.30"
NF-6611	9.64" x 7.76" x 4.48" 9.647.764.48	7.90" x 6.00" x 4.20"
