NEMA / IP Rated Boxes

PTT Series Terminal Junction Box

The PTT Series terminal junction box offers excellent protection and ease of access to wiring. This terminal junction box includes terminal blocks having between 4 and 20 terminals depending on the model. Made from high-quality ABS plastic, each gasketed terminal junction box is rated IP67 (TUV) and UL NEMA 1, 2, 4, 4x. The PTT series terminal junction box also have clear covers as an option. Pick the right terminal junction box model for your next project!

Filter Models

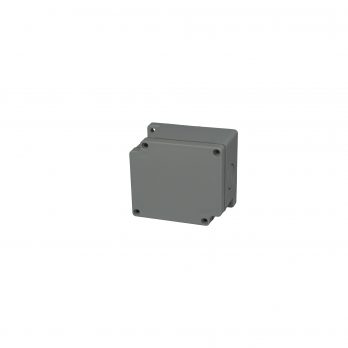

Junction Box 4 Side Terminal Blocks PTT-10478

PTT Series Terminal Junction Box
Model # PTT-10478
External Size L x W x D: 2.92" x 2.57" x 1.69"
Internal Size L x W x D: 2.68" x 2.32" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 4 Side Terminal Blocks

Junction Box 4 Side Terminal Blocks with Clear Cover PTT-10478-C

PTT Series Terminal Junction Box
Model # PTT-10478-C
External Size L x W x D: 2.92" x 2.57" x 1.69"
Internal Size L x W x D: 2.68" x 2.32" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 4 Side Terminal Blocks

Junction Box 4 Central Terminal Blocks PTT-10482

PTT Series Terminal Junction Box
Model # PTT-10482
External Size L x W x D: 3.58" x 2.17" x 1.69"
Internal Size L x W x D: 3.32" x 1.92" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 4 Central Terminal Blocks

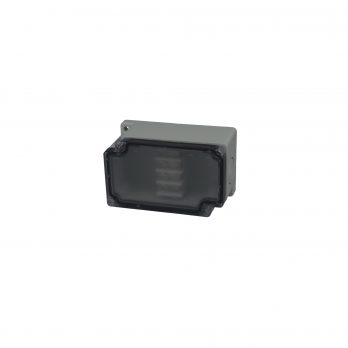

Junction Box 4 Central Terminal Blocks with Clear Cover PTT-10482-C

PTT Series Terminal Junction Box
Model # PTT-10482-C
External Size L x W x D: 3.58" x 2.17" x 1.69"
Internal Size L x W x D: 3.32" x 1.92" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 4 Central Terminal Blocks

Junction Box 6 Side Terminal Blocks PTT-10680

PTT Series Terminal Junction Box
Model # PTT-10680
External Size L x W x D: 3.58" x 2.95" x 1.69"
Internal Size L x W x D: 3.32" x 2.69" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 6 Side Terminal Blocks

Junction Box 6 Side Terminal Blocks with Clear Cover PTT-10680-C

PTT Series Terminal Junction Box
Model # PTT-10680-C
External Size L x W x D: 3.58" x 2.95" x 1.69"
Internal Size L x W x D: 3.32" x 2.69" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 6 Side Terminal Blocks

Junction Box 6 Central Terminal Blocks PTT-10681

PTT Series Terminal Junction Box
Model # PTT-10681
External Size L x W x D: 3.58" x 2.95" x 1.69"
Internal Size L x W x D: 3.32" x 2.69" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 6 Central Terminal Blocks

Junction Box 6 Central Terminal Blocks with Clear Cover PTT-10681-C

PTT Series Terminal Junction Box
Model # PTT-10681-C
External Size L x W x D: 3.58" x 2.95" x 1.69"
Internal Size L x W x D: 3.32" x 2.69" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 6 Central Terminal Blocks

Junction Box 6 Side Narrow Terminal Blocks PTT-10683

PTT Series Terminal Junction Box
Model # PTT-10683
External Size L x W x D: 3.58" x 2.17" x 1.69"
Internal Size L x W x D: 3.32" x 1.92" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 6 Side Narrow Terminal Block

Junction Box 6 Side Narrow Terminal Blocks with Clear Cover PTT-10683-C

PTT Series Terminal Junction Box
Model # PTT-10683-C
External Size L x W x D: 3.58" x 2.17" x 1.69"
Internal Size L x W x D: 3.32" x 1.92" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 6 Side Narrow Terminal Block

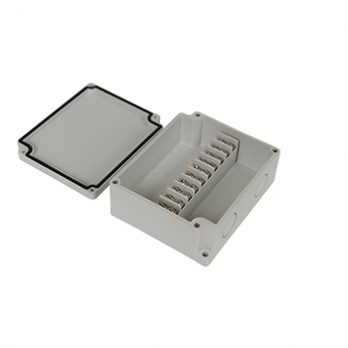

Junction Box 10 Central Terminal Blocks PTT-11084

PTT Series Terminal Junction Box
Model # PTT-11084
External Size L x W x D: 4.92" x 3.58" x 1.69"
Internal Size L x W x D: 4.06" x 3.32" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 10 Central Terminal Blocks

Junction Box 10 Central Terminal Blocks with Clear Cover PTT-11084-C

PTT Series Terminal Junction Box
Model # PTT-11084-C
External Size L x W x D: 4.92" x 3.58" x 1.69"
Internal Size L x W x D: 4.06" x 3.32" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 10 Central Terminal Blocks

Junction Box 10 Side Terminal Blocks PTT-11085

PTT Series Terminal Junction Box
Model # PTT-11085
External Size L x W x D: 4.92" x 2.96" x 1.69"
Internal Size L x W x D: 4.65" x 2.69" x 1.46"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 10 Side Terminal Blocks

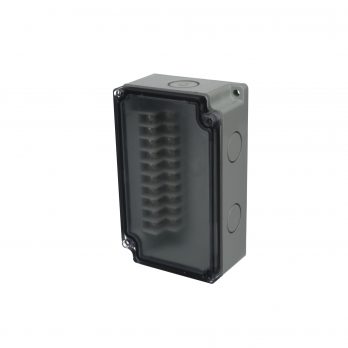

Junction Box 10 Side Terminal Blocks with Clear Cover PTT-11085-C

PTT Series Terminal Junction Box
Model # PTT-11085-C
External Size L x W x D: 4.92" x 2.96" x 1.69"
Internal Size L x W x D: 4.65" x 2.69" x 1.46"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 10 Side Terminal Blocks

Junction Box 20 Central Terminal Blocks PTT-12090

PTT Series Terminal Junction Box
Model # PTT-12090
External Size L x W x D: 9.06" x 3.94" x 2.72"
Internal Size L x W x D: 8.68" x 3.56" x 2.47"
Cover Style: Opaque, Screw Down Cover
Terminal Blocks: 20 Central Terminal Blocks

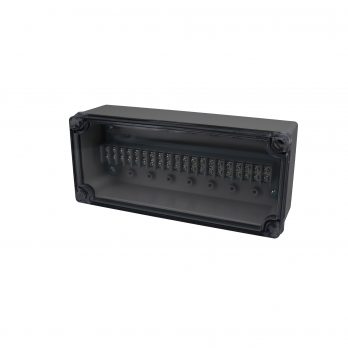

Junction Box 20 Central Terminal Blocks with Clear over PTT-12090-C

PTT Series Terminal Junction Box
Model # PTT-12090-C
External Size L x W x D: 9.06" x 3.94" x 2.72"
Internal Size L x W x D: 8.68" x 3.56" x 2.47"
Cover Style: Clear, Screw Down Cover
Terminal Blocks: 20 Central Terminal Blocks
