DPB-4763

DIN Rail Mount Plastibox DPB-4763

Product Details

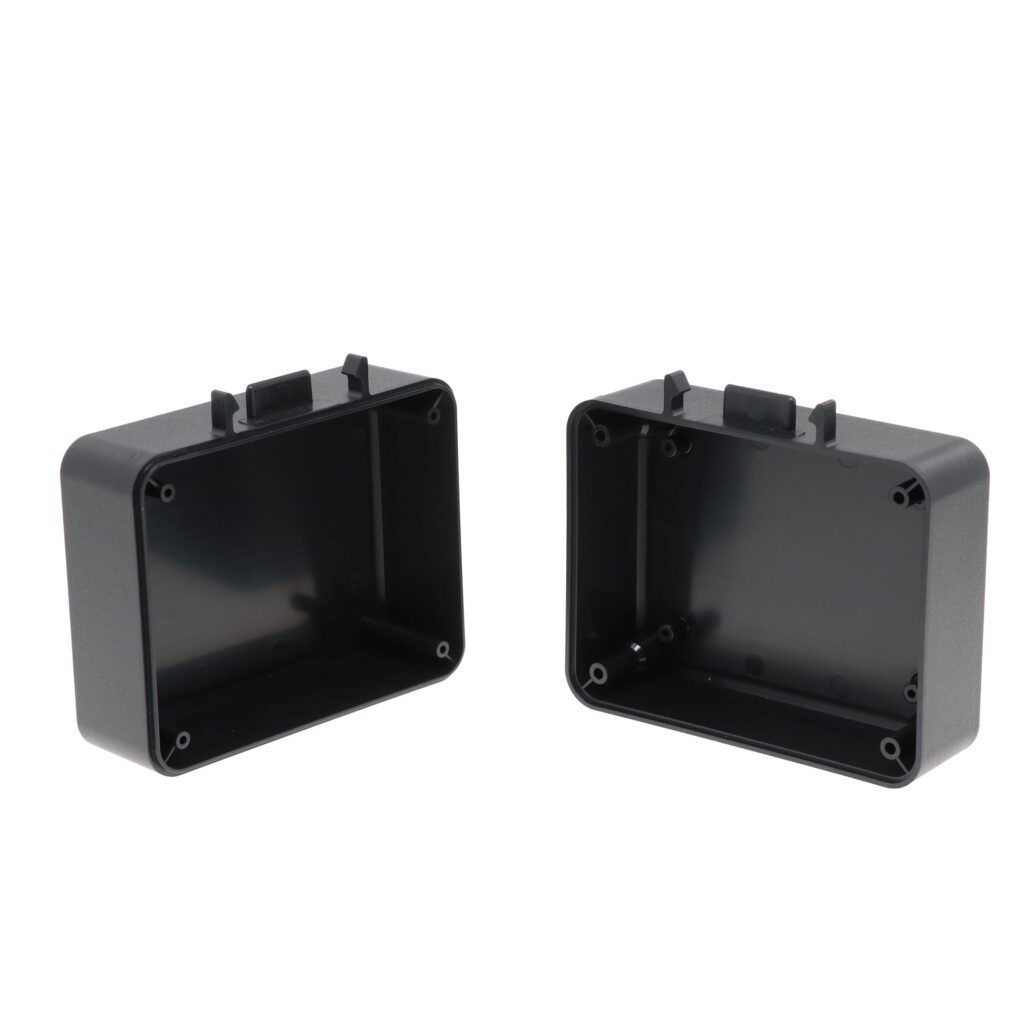

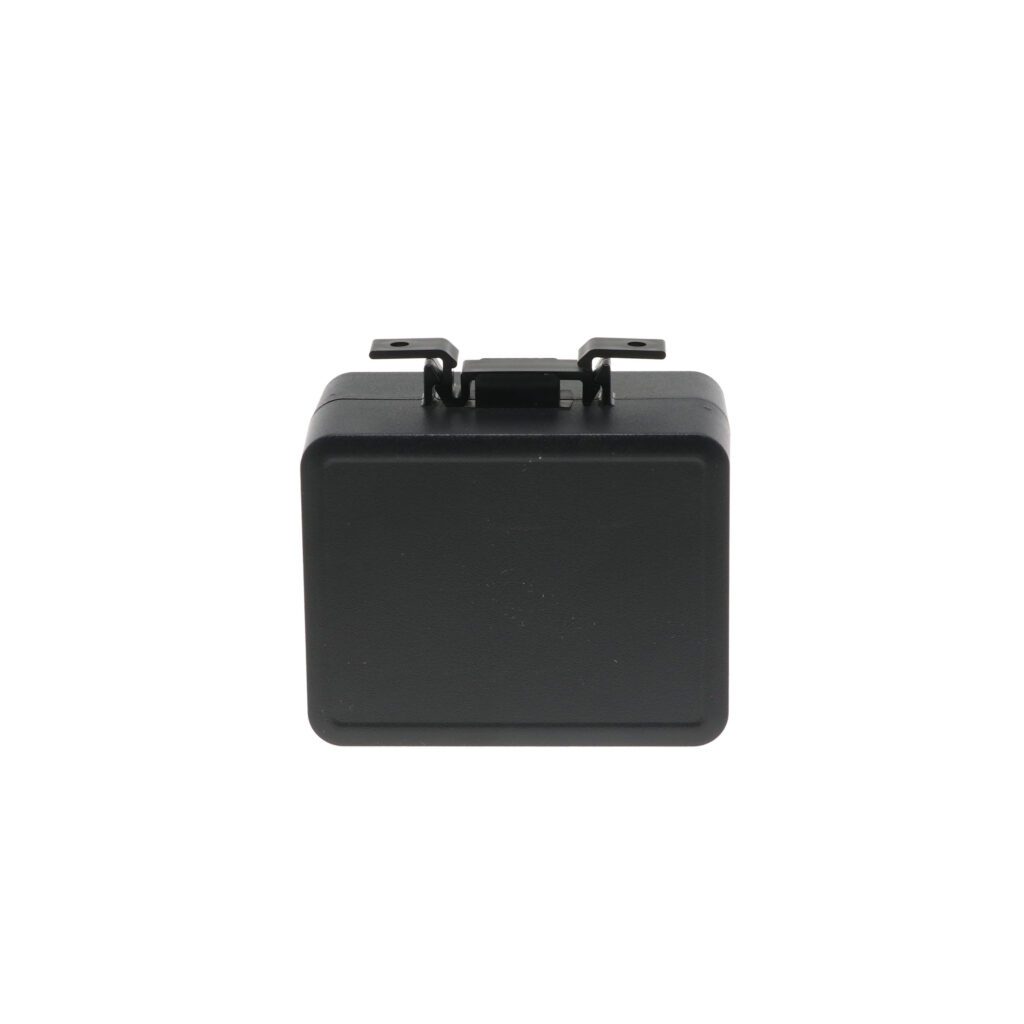

Model # DPB-4763 DIN Rail Mount Plastibox
  • Mountable screw-together DIN rail enclosure
  • Made from flame retardant black ABS plastic with UL-94-5VA flammability rating
  • Versatile clip snaps into DIN rail or may be screwed down for panel/wall mounting
  • 4 PCB mounting bosses in base
  • Smooth labeling area on front surface
  • Finish: Textured matte black
 Check Stock / Pricing Request Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 4.50" x 3.50" x 2.50"
Internal Size L x W x D: 4.29" x 3.29" x 2.30"
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-5VA

Drawing

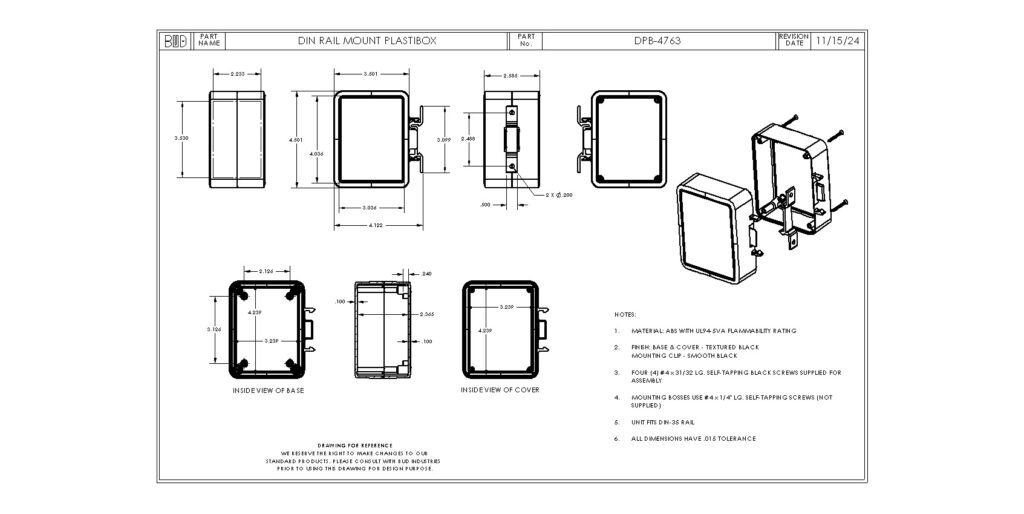

DPB-4763 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
DPB-4760 4.49" x 3.48" x 1.26" 4.493.481.26 4.16" x 3.16" x 1.03"
DPB-4763 4.50" x 3.50" x 2.50" 4.53.52.5 4.29" x 3.29" x 2.30"
DPB-4764 5.20" x 4.00" x 1.50" 5.241.5 4.99" x 3.79" x 1.29"
