EXT-9166

Extruded Aluminum Enclosure with Panels EXT-9166
  • Extruded Aluminum Enclosure with Panels
  • Extruded Aluminum Enclosure

Product Details

Model # EXT-9166 EXT Series Extruded Aluminum Enclosures
  • Made of extruded aluminum AL6063
  • Slots in the extrusion for installing PCB and components
  • Includes end panels and hardware
  • Color: Black powder coated
  • Other anodized finish options are available as a special order with MOQ; call for a quote
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 1.23" x 5.12" x 3.94"
Internal Size H x W x D: 0.91" x 3.84" x 3.94"
Weight: 0.35 lbs
Color: Black Powder Coat
Card Guides: Yes
hbext9166.pdf hbext9166.dxf

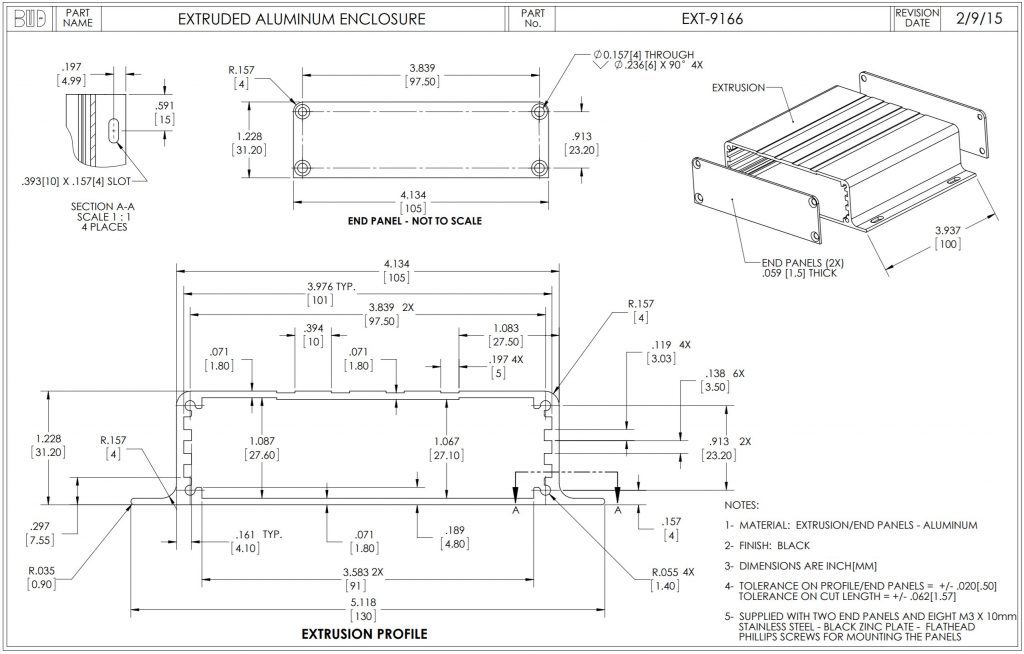

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
EXT-9162 0.42" x 2.24" x 3.94" 0.422.243.94 0.35" x 2.18" x 3.94"
EXT-9163 0.51" x 2.40" x 3.94" 0.512.403.94 0.43" x 2.13" x 3.94"
EXT-9168 1.10" x 5.67" x 3.94" 1.105.673.94 0.95" x 4.33" x 3.94"
EXT-9165 1.11" x 4.09" x 3.94" 1.114.093.94 0.91" x 3.01" x 3.94"
EXT-9166 1.23" x 5.12" x 3.94" 1.235.123.94 0.91" x 3.84" x 3.94"
EXT-9164 1.81" x 3.46" x 3.94" 1.813.463.94 1.44" x 3.03" x 3.94"
EXT-9167 1.81" x 5.24" x 3.94" 1.815.243.94 1.60" x 4.06" x 3.94"
