EXN Series Extruded Alumimum Enclosure

The EXN series of IP66-rated extruded aluminum enclosures is a unique offering among Bud’s small metal electronics enclosures. These versatile small metal enclosures offer a great combination of beauty and functionality. These PCB enclosures carry an IP66 rating and come in a wide selection of sizes and colors.

Card guides in the extruded aluminum enclosures allow a PCB to slide in. It accommodates an external mounting bracket or it can be used as a free-standing unit.

With a choice of polycarbonate plastic or aluminum diecast covers, these enclosures are suitable for a wide range of applications that may require an opaque cover, clear cover, infrared cover or a very durable metallic cover. Select a model of our PBC extruded aluminum enclosures!

Filter Models

Extruded Aluminum Enclosure Black EXN-23350-BK

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-BK
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Black with Plastic Cover EXN-23350-BKP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-BKP
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Opaque, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Blue EXN-23350-BL

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-BL
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Blue with Plastic Cover EXN-23350-BLP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-BLP
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Gold EXN-23350-GD

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-GD
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Gold with Plastic Cover EXN-23350-GDP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-GDP
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Red EXN-23350-RD

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-RD
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Red with Plastic Cover EXN-23350-RDP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-RDP
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Infrared, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Silver EXN-23350-SV

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-SV
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Silver with Plastic Cover EXN-23350-SVP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23350-SVP
External Size L x W x D: 1.39" x 2.71" x 1.93"
Internal Size L x W x D: 1.00" x 1.91" x 1.58"
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Black EXN-23351-BK

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-BK
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

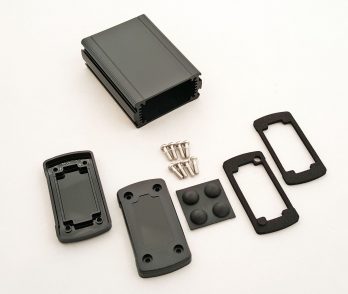

Extruded Aluminum Enclosure Black with Plastic Cover EXN-23351-BKP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-BKP
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Opaque, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Blue EXN-23351-BL

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-BL
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Blue with Plastic Cover EXN-23351-BLP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-BLP
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Gold EXN-23351-GD

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-GD
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Gold with Plastic Cover EXN-23351-GDP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-GDP
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Clear, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Red EXN-23351-RD

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-RD
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)

Extruded Aluminum Enclosure Red with Plastic Cover EXN-23351-RDP

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-RDP
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Infrared, Screw Down Cover, Plastic Cover (EXN)

Extruded Aluminum Enclosure Silver EXN-23351-SV

EXN Series Extruded Alumimum Enclosure
Model # EXN-23351-SV
External Size L x W x D: 1.39" x 2.71" x 3.50"
Internal Size L x W x D: 1.00" x 1.91" x 2.99"
Cover Style: Opaque, Screw Down Cover, Aluminum Cover (EXN)
