FBR-11611

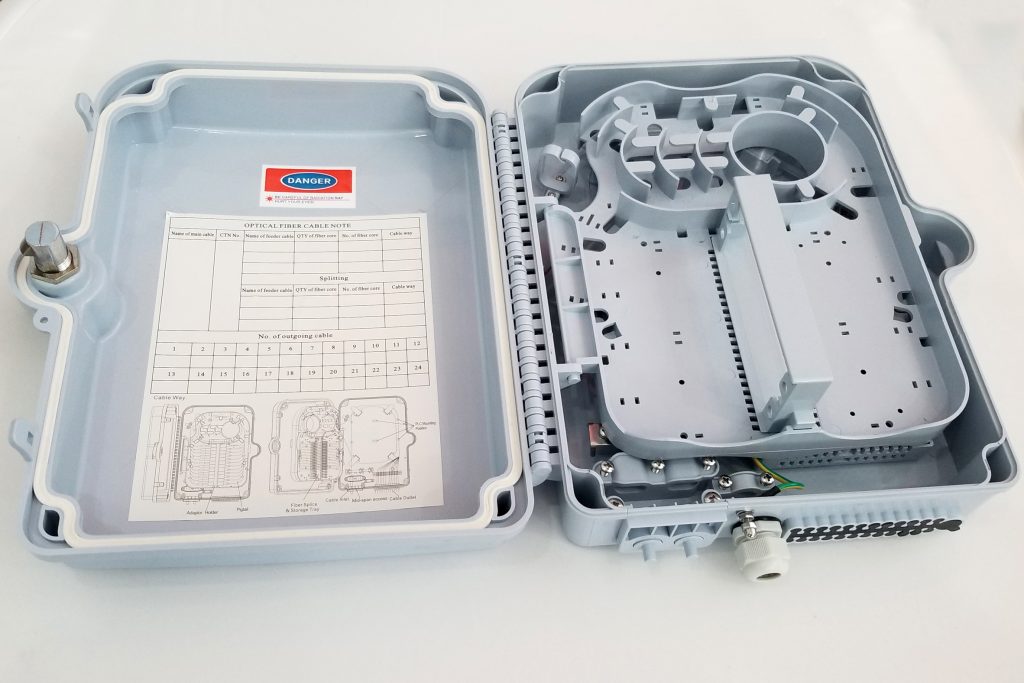

FBR-11611 Fiber-Optic Distribution Box, 16-Core

Product Details

Model # FBR-11611 FBR Series Distribution Fiber Optic Plastic Box
  • 16 core fiber-optic distribution box (termination box)
  • Used as a termination point for the feeder cable to connect with drop cable in FTTH, FTTx communication network system
  • Integrates fiber splicing, splitting, distribution, storage and cable connection in one unit
  • Provides solid protection and management for the FTTH, FTTx network building
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc, all in one
  • Suitable for SC and LC duplex adaptor and pigtail
  • Easy to operate
  • Totally enclosed structure
  • Protects and manages cable effectively
  • Secured with anti-theft /vandalizing locking mechanism
  • Standard sizes, light weight
  • High quality PC +ABS material
  • Designed for indoor use
  • Dust and moisture resistant, IP65 rating
Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 12.60" x 9.45" x 3.94"
Weight: 3.7 lbs
Color: White
RoHS Certified: Always Compliant
Latch Style: Turn Latch
Cover Style: Opaque, Hinged Cover
Mounting Style: Mounting Flanges
IP Rating: IP65
Indoor / Outdoor: Indoor (Not UV Stabilized)
Type of Plastic: ABS Poly Blend
Service Temperature Min: -40°C
Service Temperature Max: 85°C

OTHER MODELS IN THIS SERIES

Model # Internal Dimensions External Dimensions
FBR-11609 11.50" x 8.62" x 3.31" 11.508.623.31
FBR-11610 12.60" x 9.45" x 3.94" 12.609.453.94
FBR-11611 12.60" x 9.45" x 3.94" 12.609.453.94
CCP-11708 6.30" x 3.94" x 0.55" 6.303.940.55
CCP-11710 6.30" x 3.94" x 0.55" 6.303.940.55
FBR-11604 6.57" x 4.02" x 1.22" 6.574.021.22
FBR-11605 7.32" x 4.57" x 1.57" 7.324.571.57
FBR-11606 7.32" x 4.57" x 1.61" 7.324.571.61
FBR-11608 7.73" x 6.80" x 1.95" 7.736.801.95
FBR-11607 8.78" x 7.09" x 1.89" 8.787.091.89
