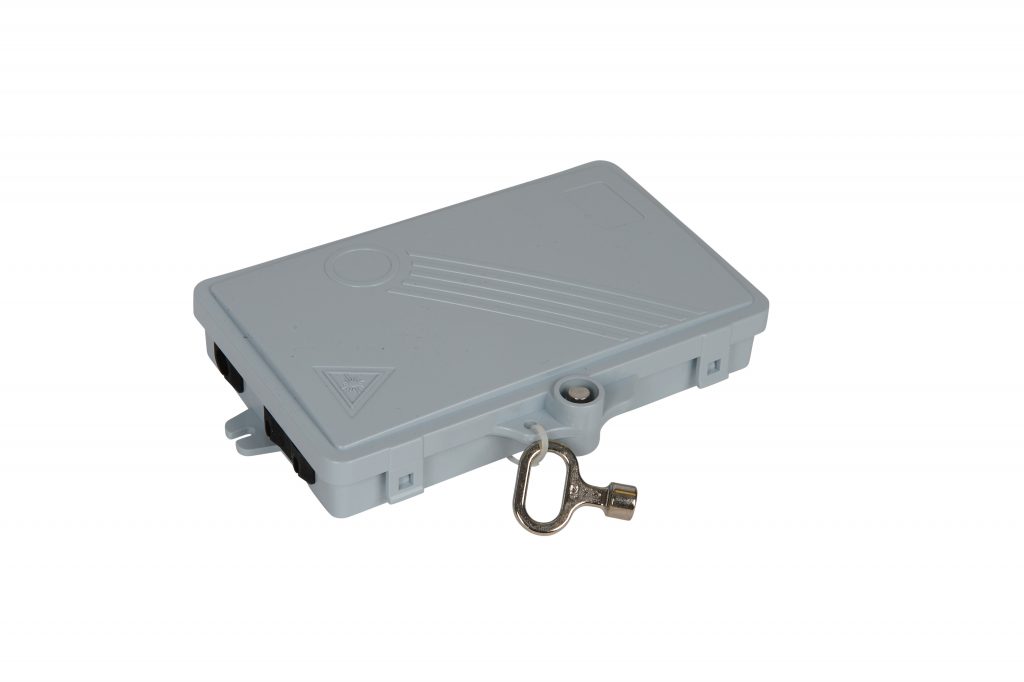

FBR-11604

Fiber-Optic Distribution Box, 2-Core

Product Details

Model # FBR-11604 FBR Series Distribution Fiber Optic Box
  • 2 core fiber-optic distribution box (termination box)
  • Used as a termination point for the feeder cable to connect with drop cable in FTTH, FTTx communication network system
  • Integrates fiber splicing, splitting, distribution, storage and cable connection in one unit
  • Provides solid protection and management for the FTTH, FTTx network building
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc, all in one
  • Suitable for SC and LC duplex adaptor and pigtail
  • Easy to operate
  • Totally enclosed structure
  • Protects and manages cable effectively
  • Secured with anti-theft /vandalizing locking mechanism
  • Standard sizes, light weight
  • High quality PC +ABS material
  • Designed for indoor use
  • Dust and moisture resistant, IP65 rating
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 6.57" x 4.02" x 1.22"
Weight: 0.62 lbs
Color: White
RoHS Certified: Always Compliant
IP Rating: 65
Mounting Style: Mounting Flanges
Cover Style: Opaque, Hinged Cover
Latch Style: Turn Latch
Indoor / Outdoor: Indoor (Not UV Stabilized)
Type of Plastic: ABS Poly Blend
Service Temperature Min: -40°C
Service Temperature Max: 85°C
