PC-11466

Plasticase Style E Plastic Case PC-11466
  • Plasticase Style E

Product Details

Model # PC-11466 Plasticase Style E Plastic Cases

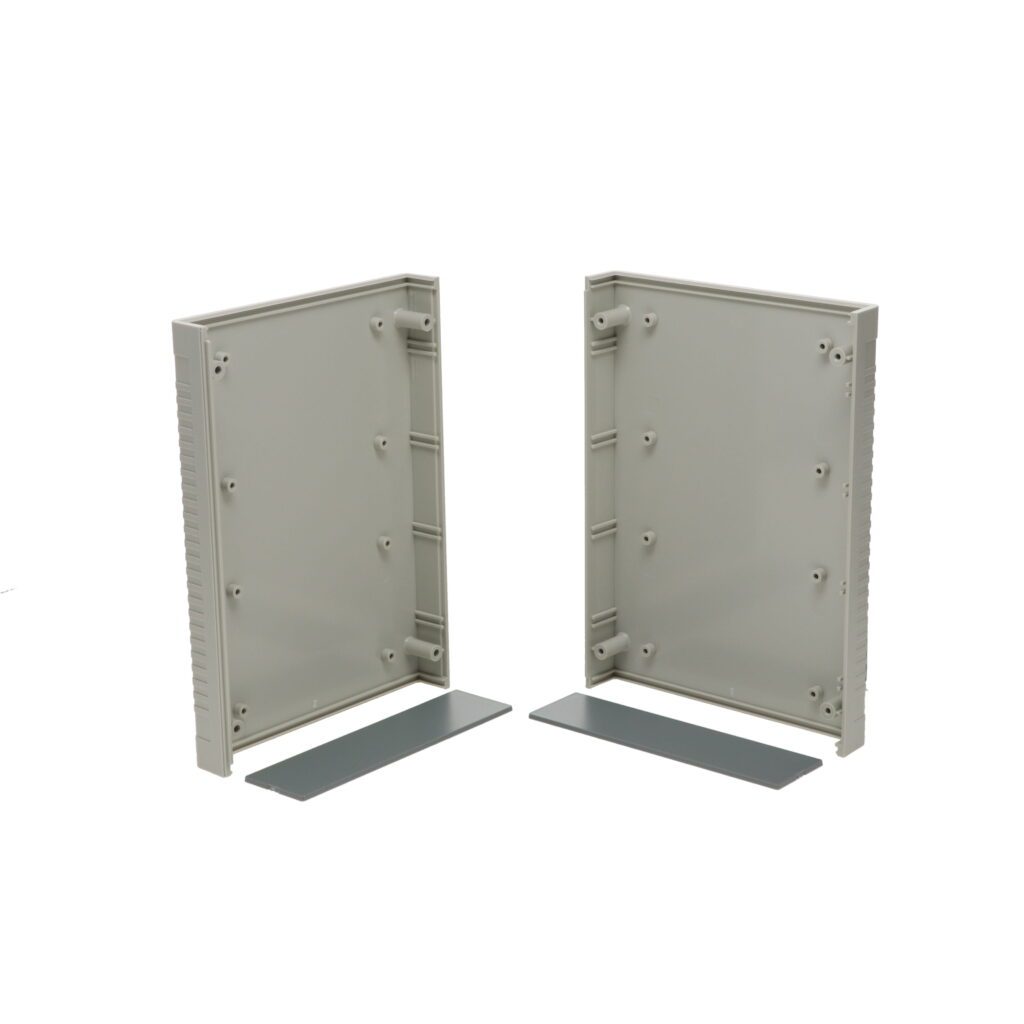

  • Light gray top and bottom covers with dark gray end panels
  • Textured surface makes the box more resistant to marring
  • Included screws hold covers together which in turn capture the end panels
  • Both top and bottom covers have internal PCB mounting bosses for horizontal board mounting and card guides for vertical board mounting
  • Press-in rubber feet are included which cover the cover attachment screw heads and provide a non-slip surface
  • Decorative edge detail provides an update modern look
  • Durable UL94-HB rated ABS material
  • Easily modified by Bud
Compare Sizes and Models Check Stock / Pricing
External Size H x W x D: 1.58" x 5.43" x 7.48"
Internal Size H x W x D: 1.02" x 5.19" x 7.07"
Weight: 0.56 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-HB
Bosses: Yes
Card Guides: Yes
hb11466.pdf hb11466.dxf

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
PC-11469 1.57" x 7.87" x 11.02" 1.02" x 7.63" x 10.61"
PC-11470 2.40" x 7.87" x 11.02" 1.81" x 7.63" x 10.61"
PC-11471 3.15" x 7.87" x 11.02" 2.60" x 7.63" x 10.61"
PC-11463 1.42" x 6.14" x 7.09" 0.87" x 5.86" x 6.68"
PC-11464 1.73" x 6.14" x 7.09" 1.18" x 5.86" x 6.68"
PC-11465 2.05" x 6.14" x 7.09" 1.50" x 5.86" x 6.68"
PC-11466 1.58" x 5.43" x 7.48" 1.02" x 5.19" x 7.07"
PC-11467 2.36" x 5.43" x 7.48" 1.81" x 5.19" x 7.07"
PC-11468 3.15" x 5.43" x 7.48" 2.60" x 5.19" x 7.07"
PC-11460 1.42" x 3.74" x 6.22" 0.87" x 3.50" x 5.81"
PC-11461 1.85" x 3.74" x 6.22" 1.30" x 3.50" x 5.81"
PC-11462 2.28" x 3.74" x 6.22" 1.73" x 3.50" x 5.81"
