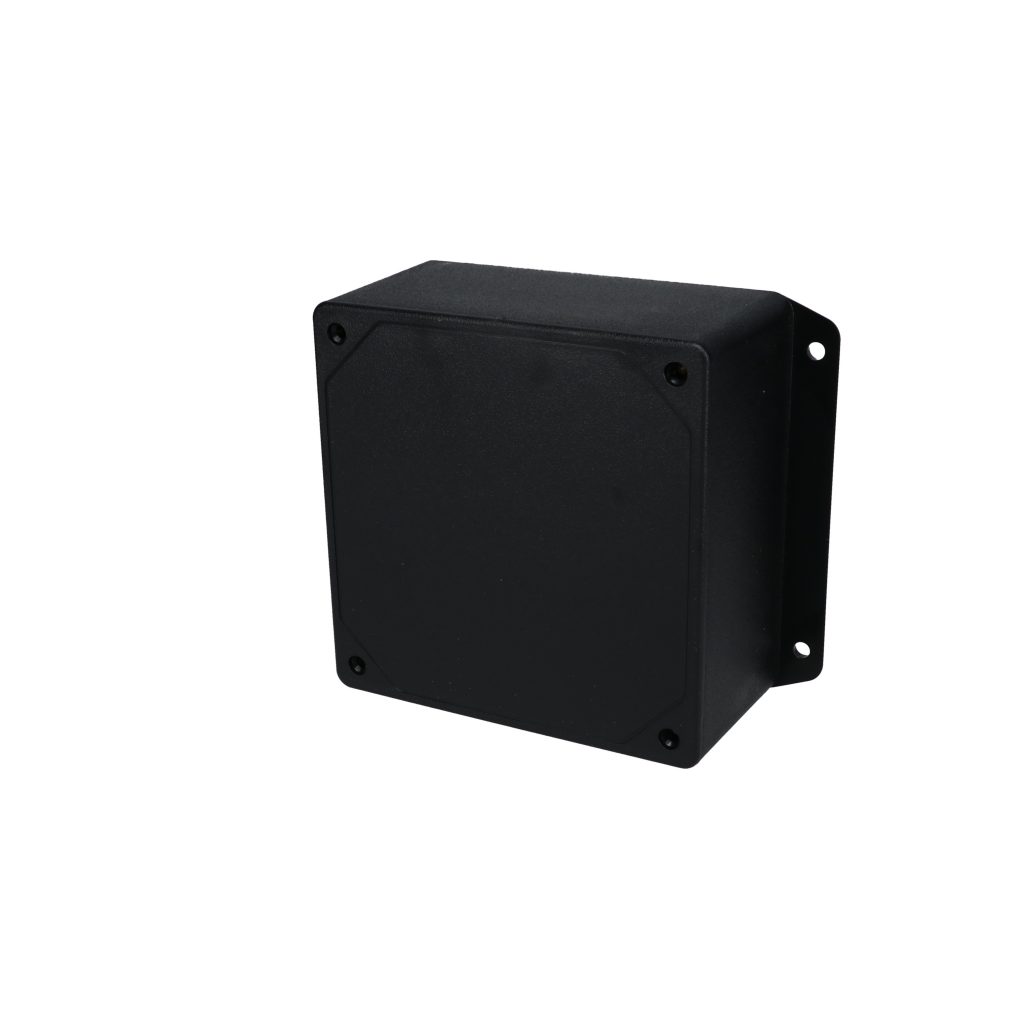

Utilibox Style A Plastic Utility Box with Mounting Flanges CU-3282-MB

Model # CU-3282-MB Utilibox Style A Series Utility Boxes

Molded-in mounting flange
ABS plastic
Flammability rating of UL94-5VA
Suggested service temperature of -20 degrees C to +70 degrees C
Comes with close-fitting interlocking lid and assembly hardware
Textured finish

Compare Sizes and Models Check Stock / Pricing

External Size L x W x D: 4.61" x 4.61" x 2.37"

Internal Size L x W x D: 4.34" x 4.34" x 2.17"

Weight: 0.45625 lbs

Color: Black

Type of Plastic: ABS

Flammability Rating: UL94-5VA

Service Temperature Low: -20

Service Temperature High: 70

Mounting Style: Mounting Flanges

Drawing

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions	Mounting Style
CU-3286	10.15" x 6.15" x 3.13"	9.90" x 5.75" x 2.90"
CU-3286-MB	10.15" x 6.15" x 3.13"	9.90" x 5.75" x 2.90"	Mounting Flanges
CUR-3286	10.15" x 6.15" x 3.13"	7.95" x 5.75" x 2.90"
CUR-3286-MB	10.15" x 6.15" x 3.13"	7.95" x 5.75" x 2.90"	Mounting Flanges
CU-3285	8.25" x 5.15" x 3.12"	7.99" x 4.89" x 2.92"
CU-3285-MB	8.25" x 5.15" x 3.12"	7.99" x 4.89" x 2.92"	Mounting Flanges
CUR-3285	8.25" x 5.15" x 3.12"	7.99" x 4.89" x 2.92"
CUR-3285-MB	8.25" x 5.15" x 3.12"	7.99" x 4.89" x 2.92"	Mounting Flanges
CU-3282	4.61" x 4.61" x 2.37"	4.34" x 4.34" x 2.17"
CU-3282-MB	4.61" x 4.61" x 2.37"	4.34" x 4.34" x 2.17"	Mounting Flanges
CU-3283	6.11" x 4.61" x 2.37"	5.84" x 4.34" x 2.17"
CU-3283-MB	6.11" x 4.61" x 2.37"	5.84" x 4.34" x 2.17"	Mounting Flanges
CU-3284	7.61" x 4.61" x 2.37"	7.34" x 4.34" x 2.17"
CU-3284-MB	7.61" x 4.61" x 2.37"	7.34" x 4.34" x 2.17"	Mounting Flanges
CU-3287	6.11" x 4.61" x 1.37"	5.84" x 4.34" x 1.17"
CU-3287-MB	6.11" x 4.61" x 1.37"	5.84" x 4.34" x 1.17"	Mounting Flanges
CUR-3282	4.61" x 4.61" x 2.37"	4.34" x 4.34" x 2.17"
CUR-3282-MB	4.61" x 4.61" x 2.37"	4.34" x 4.34" x 2.17"	Mounting Flanges
CUR-3283	6.11" x 4.61" x 2.37"	5.84" x 4.34" x 2.17"
CUR-3283-MB	6.11" x 4.61" x 2.37"	5.84" x 4.34" x 2.17"	Mounting Flanges
CUR-3284	7.61" x 4.61" x 2.37"	7.34" x 4.34" x 2.25"
CUR-3284-MB	7.61" x 4.61" x 2.37"	7.34" x 4.34" x 2.17"	Mounting Flanges
CUR-3287	6.11" x 4.61" x 1.37"	5.84" x 4.34" x 1.17"
CUR-3287-MB	6.11" x 4.61" x 1.37"	5.84" x 4.34" x 1.17"	Mounting Flanges
CU-3281	4.60" x 3.10" x 1.87"	4.34" x 2.84" x 1.67"
CU-3281-MB	4.60" x 3.10" x 1.87"	4.34" x 2.84" x 1.67"	Mounting Flanges
CUR-3281	4.60" x 3.10" x 1.87"	4.34" x 2.84" x 1.67"
CUR-3281-MB	4.60" x 3.10" x 1.87"	4.34" x 2.84" x 1.67"	Mounting Flanges
