CUR-3281-MB

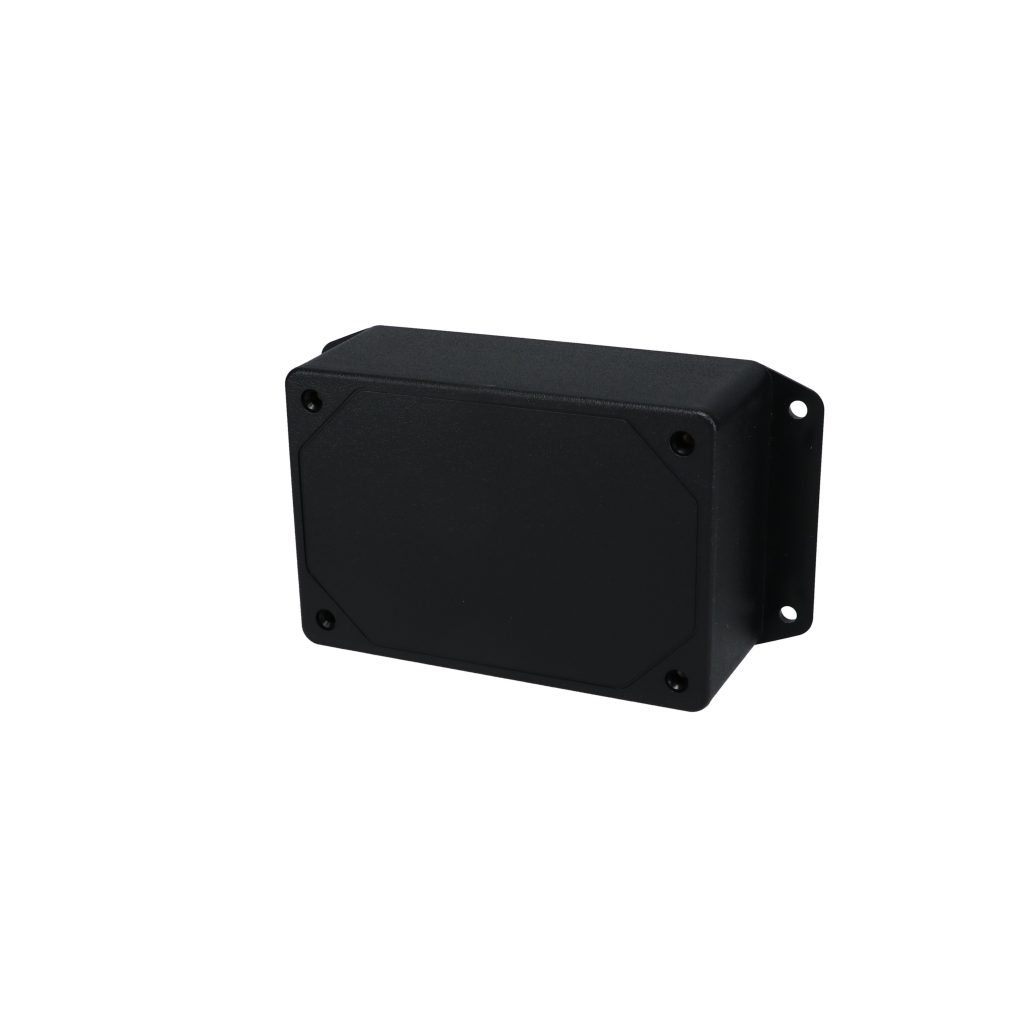

Utilibox Style A Plastic Utility Box with Mounting Flanges and Recessed Cover CUR-3281-MB

Product Details

Model # CUR-3281-MB Utilibox Style A Series Utility Boxes
  • Molded-in mounting flanges
  • 0.10-inch recessed area in lid
  • ABS plastic
  • Flammability rating of UL94-5VA
  • Suggested service temperature of -20 degrees C to +70 degrees C
  • Comes with close-fitting interlocking lid and assembly hardware
  • Textured finish
Check Stock / Pricing Request ModificationsCompare Sizes and Models
External Size L x W x D: 4.60" x 3.10" x 1.87"
Internal Size L x W x D: 4.34" x 2.84" x 1.67"
Weight: 0.33 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-5VA
Service Temperature Low: -20
Service Temperature High: 70
Recessed Top: With Recessed Top
Mounting Style: Mounting Flanges

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
CUR-3286-MB 10.15" x 6.15" x 3.13" 10.156.153.13 7.95" x 5.75" x 2.90" Mounting Flanges
CUR-3286 10.15" x 6.15" x 3.13" 10.156.153.13 7.95" x 5.75" x 2.90"
CU-3286-MB 10.15" x 6.15" x 3.13" 10.156.153.13 9.90" x 5.75" x 2.90" Mounting Flanges
CU-3286 10.15" x 6.15" x 3.13" 10.156.153.13 9.90" x 5.75" x 2.90"
CU-3281-MB 4.60" x 3.10" x 1.87" 4.603.101.87 4.34" x 2.84" x 1.67" Mounting Flanges
CUR-3281-MB 4.60" x 3.10" x 1.87" 4.603.101.87 4.34" x 2.84" x 1.67" Mounting Flanges
CUR-3281 4.60" x 3.10" x 1.87" 4.603.101.87 4.34" x 2.84" x 1.67"
CU-3281 4.60" x 3.10" x 1.87" 4.603.101.87 4.34" x 2.84" x 1.67"
CU-3282 4.61" x 4.61" x 2.37" 4.614.612.37 4.34" x 4.34" x 2.17"
CUR-3282-MB 4.61" x 4.61" x 2.37" 4.614.612.37 4.34" x 4.34" x 2.17" Mounting Flanges
CUR-3282 4.61" x 4.61" x 2.37" 4.614.612.37 4.34" x 4.34" x 2.17"
CU-3282-MB 4.61" x 4.61" x 2.37" 4.614.612.37 4.34" x 4.34" x 2.17" Mounting Flanges
CUR-3287-MB 6.11" x 4.61" x 1.37" 6.114.611.37 5.84" x 4.34" x 1.17" Mounting Flanges
CUR-3287 6.11" x 4.61" x 1.37" 6.114.611.37 5.84" x 4.34" x 1.17"
CU-3287-MB 6.11" x 4.61" x 1.37" 6.114.611.37 5.84" x 4.34" x 1.17" Mounting Flanges
CU-3287 6.11" x 4.61" x 1.37" 6.114.611.37 5.84" x 4.34" x 1.17"
CU-3283 6.11" x 4.61" x 2.37" 6.114.612.37 5.84" x 4.34" x 2.17"
CU-3283-MB 6.11" x 4.61" x 2.37" 6.114.612.37 5.84" x 4.34" x 2.17" Mounting Flanges
CUR-3283 6.11" x 4.61" x 2.37" 6.114.612.37 5.84" x 4.34" x 2.17"
CUR-3283-MB 6.11" x 4.61" x 2.37" 6.114.612.37 5.84" x 4.34" x 2.17" Mounting Flanges
CUR-3284 7.61" x 4.61" x 2.37" 7.614.612.37 7.34" x 4.34" x 2.25"
CUR-3284-MB 7.61" x 4.61" x 2.37" 7.614.612.37 7.34" x 4.34" x 2.17" Mounting Flanges
CU-3284 7.61" x 4.61" x 2.37" 7.614.612.37 7.34" x 4.34" x 2.17"
CU-3284-MB 7.61" x 4.61" x 2.37" 7.614.612.37 7.34" x 4.34" x 2.17" Mounting Flanges
CUR-3285 8.25" x 5.15" x 3.12" 8.255.153.12 7.99" x 4.89" x 2.92"
CUR-3285-MB 8.25" x 5.15" x 3.12" 8.255.153.12 7.99" x 4.89" x 2.92" Mounting Flanges
CU-3285-MB 8.25" x 5.15" x 3.12" 8.255.153.12 7.99" x 4.89" x 2.92" Mounting Flanges
CU-3285 8.25" x 5.15" x 3.12" 8.255.153.12 7.99" x 4.89" x 2.92"
