CN-6711

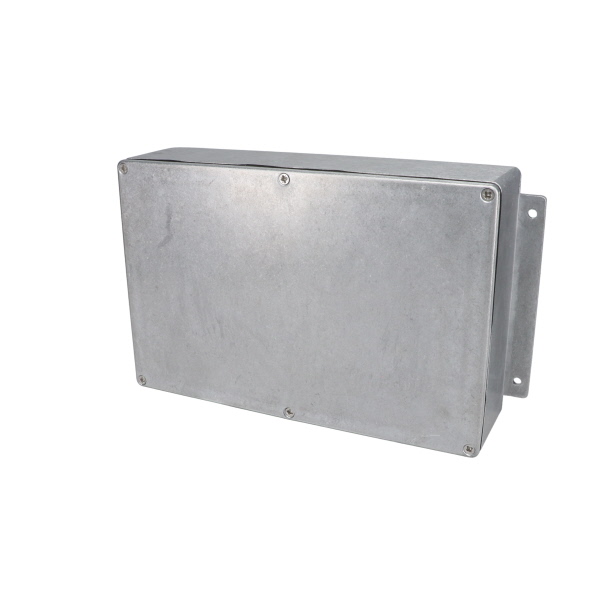

Mountable Die Cast Aluminum Enclosure CN-6711
5 Day Modifications
  • CN Series Mountable Diecast Aluminum Enclosure
2 Videos

Product Details

Model # CN-6711 CN Series Die Cast Aluminum Enclosure, Mountable
  • IP65|IP66
  • Designed to meet NEMA 1, 2, 4, 4x, 12, 13 and IP66 ratings.
  • Made from durable ADC-12 aluminum alloy.
  • Self-adhesive Neopren gasket easily attaches to cover.
  • Molded-in mounting flanges located along the short side of the box.
  • Cover attaches with 6 stainless steel, M3.5 thread-forming screws.
  • Most models have internal card guides for mounting PC Boards or partitioning.
  • Easily machined and modified to your particular needs.
  • Finish: Natural (other finishes available upon request)
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 8.75" x 5.74" x 2.25"
Internal Size L x W x D: 8.31" x 5.31" x 2.11"
Weight: 1.63 lbs
Color: Natural
RoHS Certified: Always Compliant
Gasket Type: Neoprene
Card Guides: Yes
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: IP65, IP66
Mounting Style: Molded Mounting Flanges
Cover Style: Opaque, Screw Down Cover

If you’re looking for a NEMA rated or IP rated enclosure for a printed circuit board (PCB) that measures up to 8.31" x 5.31" x 2.11" or smaller, then this enclosure is an excellent choice.

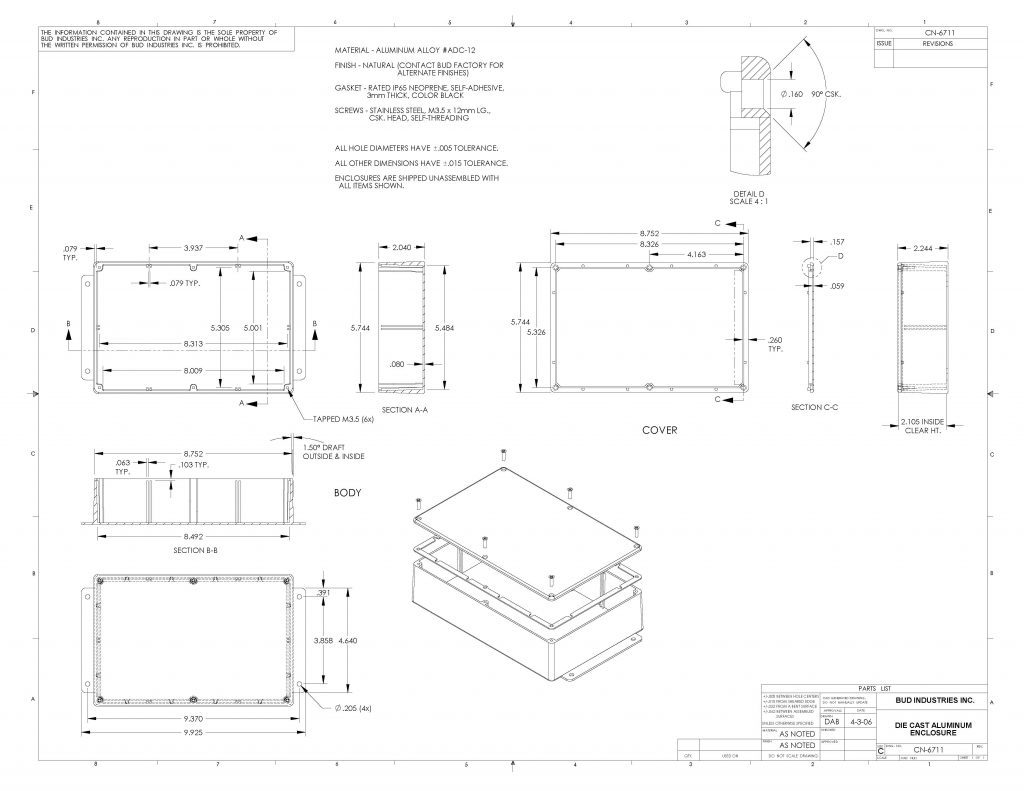

Drawing

CN-6711 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CN-6702 3.52" x 1.38" x 1.22" 3.521.381.22 3.35" x 1.05" x 1.09"
CN-6703 4.51" x 2.50" x 1.22" 4.512.501.22 4.18" x 2.17" x 1.09"
CN-6704 4.51" x 2.50" x 2.22" 4.512.502.22 4.13" x 2.12" x 2.10"
CN-6705 4.54" x 3.57" x 2.22" 4.543.572.22 4.16" x 3.19" x 2.10"
CN-6706 4.73" x 3.95" x 1.44" 4.733.951.44 4.33" x 3.55" x 1.30"
CN-6707 5.47" x 4.01" x 3.05" 5.474.013.05 4.99" x 3.52" x 2.91"
CN-6708 6.51" x 5.01" x 3.05" 6.515.013.05 6.03" x 4.53" x 2.91"
CN-6709 6.78" x 4.77" x 2.22" 6.784.772.22 6.34" x 4.34" x 2.07"
CN-6710 6.78" x 4.77" x 4.21" 6.784.774.21 6.22" x 4.21" x 4.06"
CN-6711 8.75" x 5.74" x 2.25" 8.755.742.25 8.31" x 5.31" x 2.11"
