DCH-11920

Dual Compartment Enclosure Hinged Cover DCH-11920
5 Day Modifications

Product Details

Model # DCH-11920 DCH Series Dual Compartment Enclosure

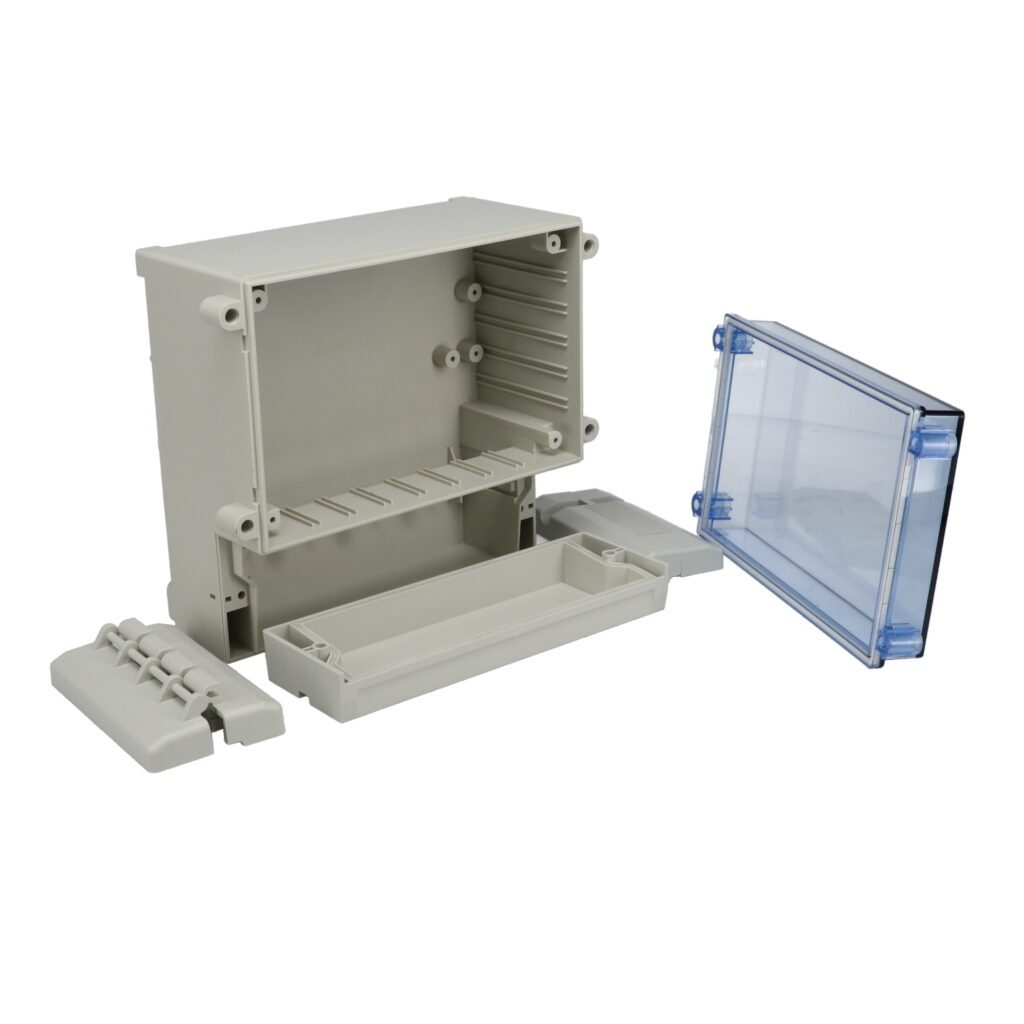

  • Dual compartment design. PCB guides provided in upper compartment.
  • Transparent cover allows inspection and readout without breaking seal.
  • Hinged cover allows easy access (left- or right-side hinge). For screw-down cover see DCS Series.
  • Cover made of blue tinted polycarbonate (UL 94-HB) plastic (higher flammability rated material available on special request).
  • Body made of high-impact ABS plastic.
  • Easy-to-remove knockouts provided on bottom side to accommodate conduit fittings or cable glands.
  • Sealed with durable and oil-resistant silicone sponge gasket.
  • Built-in DIN-rail mounting clips.
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size H x W x D: 6.34" x 6.54" x 3.66"
Internal Size H x W x D: 3.79" x 6.14" x 3.47"
Weight: 0.3 lbs
Color: Clear Blue-Tinted Cover / White Body
RoHS Certified: Always Compliant
Cover Style: Clear, Hinged Cover
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: Transparent Blue Polycarbonate
UL Rating: UL508
Gasket Type: Silicone Sponge
Service Temperature Min: -40°C
Service Temperature Max: 70°C
IP Rating: IP65
Mounting Style: DIN Rail
Knockouts: Knockouts

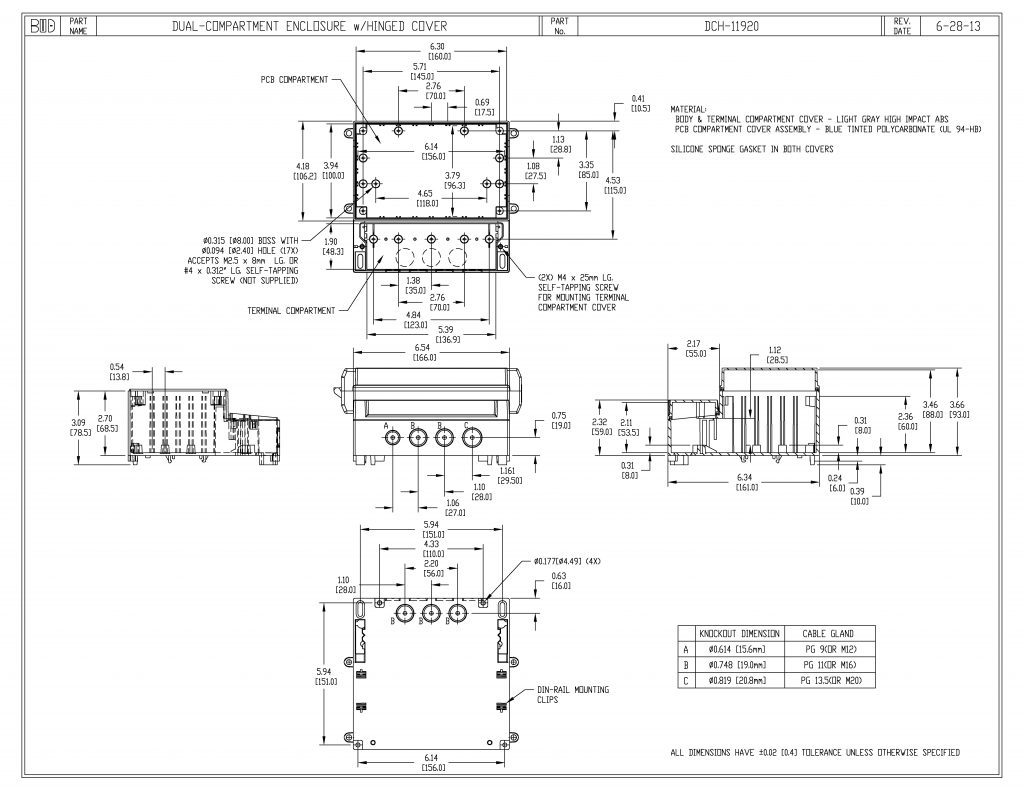

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
DCH-11924 11.06" x 11.65" x 6.22" 11.0611.656.22 7.34" x 11.26" x 5.98"
DCH-11920 6.34" x 6.54" x 3.66" 6.346.543.66 3.79" x 6.14" x 3.47"
DCH-11921 6.34" x 6.54" x 4.76" 6.346.544.76 3.79" x 6.14" x 4.53"
DCH-11922 7.28" x 8.39" x 4.11" 7.288.394.11 4.54" x 7.99" x 3.91"
DCH-11923 8.54" x 10.08" x 5.22" 8.5410.085.22 5.80" x 9.72" x 4.99"
