DCH-11924

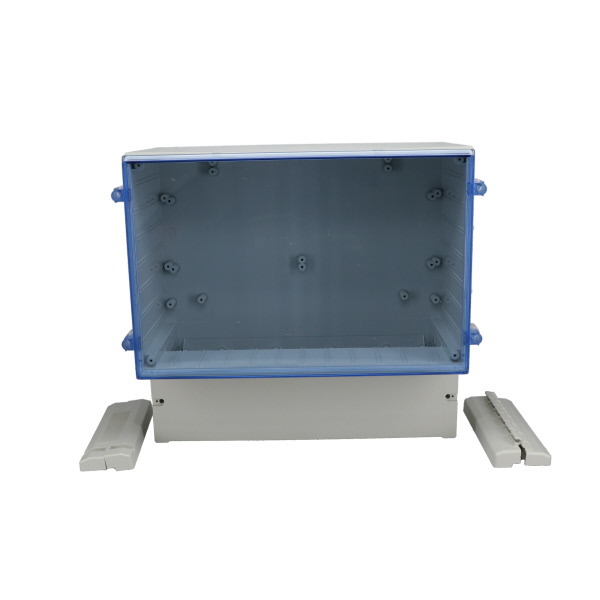

Dual Compartment Enclosure Hinged Cover DCH-11924
  • Dual Compartment Enclosure

Product Details

Model # DCH-11924 DCH Series Dual Compartment Enclosure
  • Dual compartment design. PCB guides provided in upper compartment.
  • Transparent cover allows inspection and readout without breaking seal.
  • Hinged cover allows easy access (left- or right-side hinge). For screw-down cover see DCS Series.
  • Cover made of blue tinted polycarbonate (UL 94-HB) plastic (higher flammability rated material available on special request).
  • Body made of high-impact ABS plastic.
  • Easy-to-remove knockouts provided on bottom side to accommodate conduit fittings or cable glands.
  • Sealed with durable and oil-resistant silicone sponge gasket.
  • Built-in DIN-rail mounting clips.
See Other Models Search by Size See Accessories Check Stock / Pricing
External Size H x W x D: 11.06" x 11.65" x 6.22"
Internal Size H x W x D: 7.34" x 11.26" x 5.98"
Weight: 0.3 lbs
Color: Clear Blue-Tinted Cover / White Body
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: Transparent Blue Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Gasket Type: Silicone Sponge
Knockouts: Knockouts
IP Rating: 65
Mounting Style: DIN Rail
Cover Style: Clear, Hinged Cover
hbdch11924.pdf hbdch11924.dxf

Drawing
