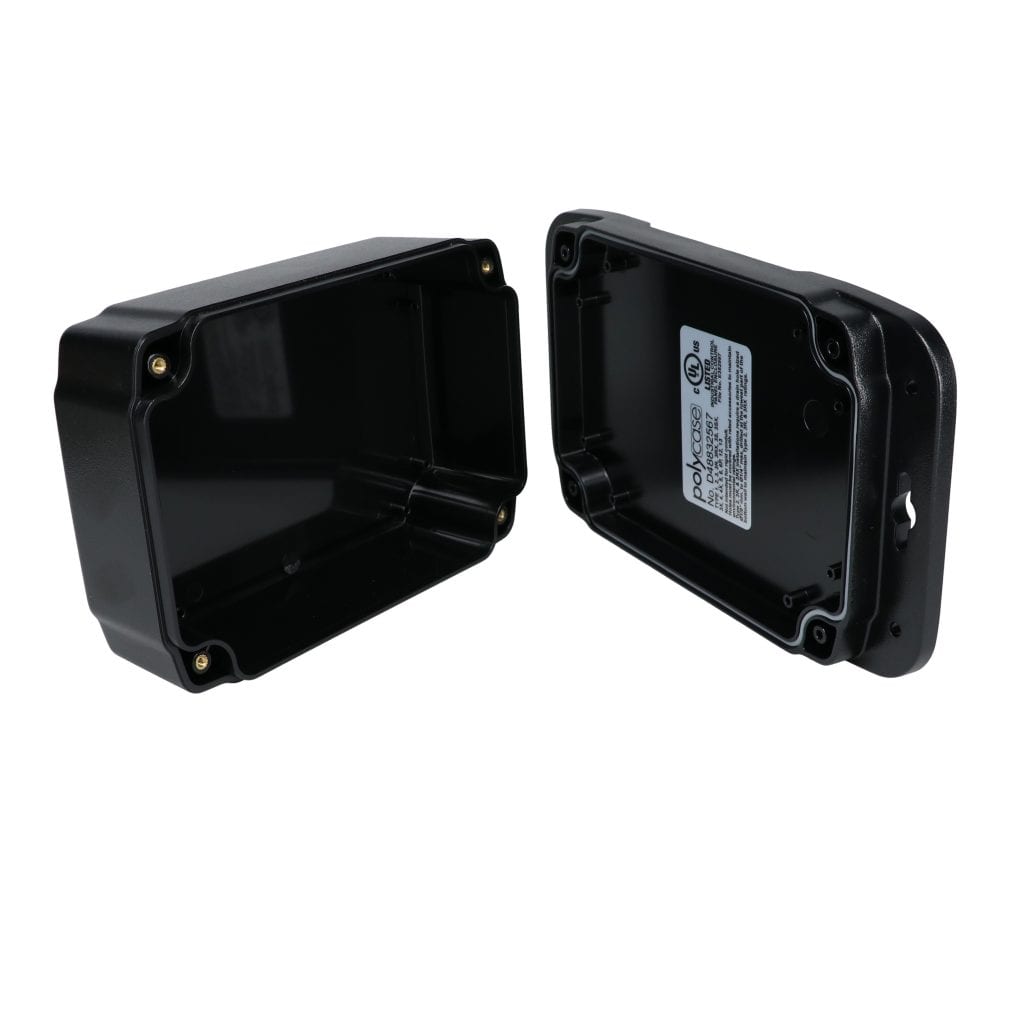

Heavy-Duty Wall-Mountable Plastic NEMA Box HD-7600

Product Details

Model # HD-7600 HD Series Plastic NEMA Box
  • Heavy duty, impact resistant plastic box designed for harsh environments.
  • Mounting flanges for easy wall installation.
  • Cover attaching screws are outside the silicon rubber gasket sealing area, thus preventing ingress of moisture and dust.
  • Designed to IP 66 of IEC 529 and NEMA 4, 4X, 12, 13.
  • Internal bosses allow mounting of PCBs horizontally or for connection of terminals.
  • Screws are stainless steel, non-magnetic and fasten into threaded brass inserts.
  • UV stabilized. Textured/ recessed surface area suitable for printed graphics, labels, membrane keypads.
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 6.62" x 4.60" x 2.37"
Internal Size L x W x D: 6.25" x 4.56" x 2.15"
Weight: 1.5 lbs
Color: Black
RoHS Certified: Always Compliant
Cover Style: Opaque, Screw Down Cover
Indoor / Outdoor: Outdoor (UV Stabilized)
Flammability Rating: UL94-V0
Type of Plastic: Polycarbonate
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 120°C
Door Flammability Rating: UL94-V0
Door Type of Plastic: Polycarbonate
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: 66
Mounting Style: Molded Mounting Flanges

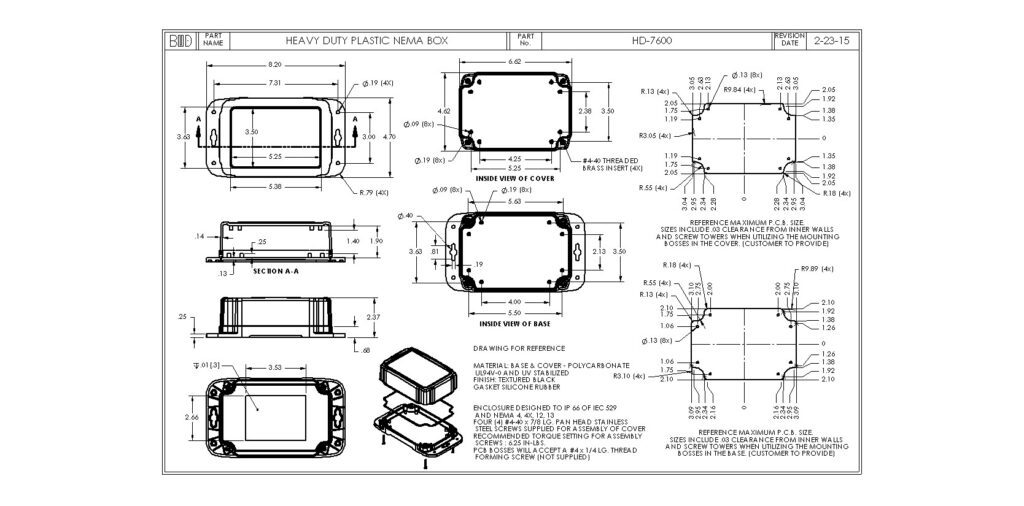

Drawing

OTHER MODELS IN THIS SERIES

Model # Internal Dimensions External Dimensions
HD-7603 2.63" x 2.63" x 1.63" 2.632.631.63 2.23" x 2.23" x 1.23"
HD-7604 4.63" x 2.63" x 1.63" 4.632.631.63 4.23" x 2.23" x 1.23"
HD-7605 4.63" x 2.63" x 2.37" 4.632.632.37 4.23" x 2.23" x 1.97"
HD-7602 4.63" x 4.63" x 2.36" 4.634.632.36 3.31" x 3.31" x 2.03"
HD-7606 5.50" x 3.50" x 2.36" 5.53.52.36 5.10" x 3.10" x 1.96"
HD-7601 5.50" x 3.50" x 1.62" 5.503.501.62 5.05" x 3.05" x 1.15"
HD-7600 6.62" x 4.60" x 2.37" 6.624.602.37 6.25" x 4.56" x 2.15"
HD-7607 6.63" x 4.68" x 1.63" 6.634.681.63 6.23" x 4.28" x 1.23"
HD-7608 8.00" x 5.25" x 2.70" 8.05.252.7 7.60" x 4.85" x 2.30"
