IPS-3927

Die Cast Aluminum Enclosure IPS-3927
  • IPS Series Diecast Aluminum Enclosure

Product Details

Model # IPS-3927 IPS Series Die Cast Aluminum Enclosures
  • Rugged #ADC-12 die cast aluminum alloy.
  • Thick wall (0.098 inch, 2.5 mm) construction provides strength and rigidity for heavy duty applications.
  • One-piece molded outer Silicone gasket provides reliable and long lasting sealing to meet NEMA 4X and IP67 requirements.
  • Captive cover assembly screws (M4) are located outside the sealing area.
  • Recessed area on cover surface for decals.
  • Easily machined and modified to your particular requirements.
  • Finish: Natural
  • Optional die cast external mounting brackets available – ANX-1390 (Natural), ANX-1390-B (Black)
 Compare Sizes and Models See Accessories Check Stock / Pricing
External Size L x W x D: 6.38" x 6.38" x 3.15"
Internal Size L x W x D: 5.51" x 5.51" x 2.95"
Weight: 1.56 lbs
Color: Natural
RoHS Certified: Always Compliant
Gasket Type: Silicone
NEMA Rating: NEMA 4X
IP Rating: 67
Cover Style: Opaque, Screw Down Cover
hb3927.pdf hb3927.dxf

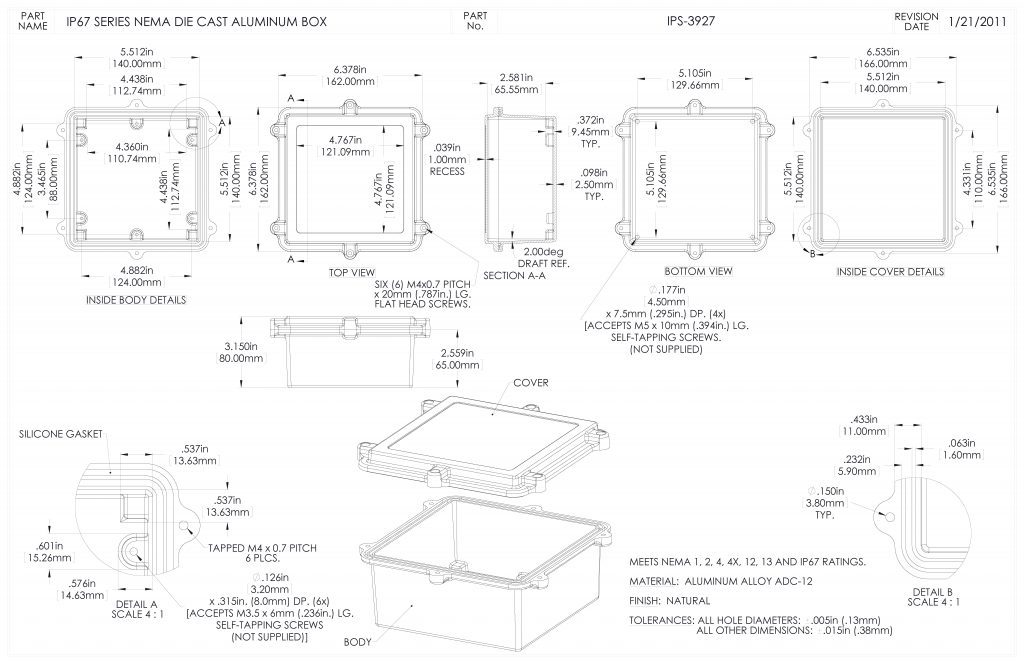

Drawing

IPS-3927 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
IPS-3909 10.79" x 6.81" x 2.60" 9.92" x 5.94" x 2.36"
IPS-3911 10.79" x 6.81" x 3.94" 9.92" x 5.94" x 3.70"
IPS-3933 10.30" x 7.71" x 2.17" 9.45" x 6.30" x 1.97"
IPS-3935 10.30" x 7.71" x 3.54" 9.45" x 6.30" x 3.35"
IPS-3929 7.95" x 5.59" x 2.17" 7.09" x 4.72" x 1.97"
IPS-3931 7.95" x 5.59" x 3.15" 7.09" x 4.72" x 2.95"
IPS-3916 7.87" x 5.91" x 1.10" 7.06" x 5.09" x 0.94"
IPS-3917 7.87" x 5.91" x 1.97" 7.00" x 5.03" x 1.73"
IPS-3919 7.87" x 5.91" x 2.95" 7.00" x 5.03" x 2.71"
IPS-3905 7.56" x 3.78" x 1.77" 6.69" x 2.91" x 1.54"
IPS-3907 7.56" x 3.78" x 2.64" 6.69" x 2.91" x 1.95"
IPS-3925 6.38" x 6.38" x 2.17" 5.51" x 5.51" x 1.97"
IPS-3927 6.38" x 6.38" x 3.15" 5.51" x 5.51" x 2.95"
IPS-3921 5.98" x 4.41" x 1.18" 5.12" x 3.54" x 0.98"
IPS-3923 5.98" x 4.41" x 2.17" 5.12" x 3.54" x 1.97"
IPS-3913 5.91" x 3.94" x 1.97" 5.03" x 3.06" x 1.73"
IPS-3915 5.91" x 3.94" x 2.95" 5.03" x 3.06" x 2.71"
IPS-3901 3.79" x 3.79" x 1.77" 2.83" x 2.64" x 1.53"
IPS-3903 3.79" x 3.79" x 2.64" 2.83" x 2.64" x 2.40"
