Die Cast Aluminum Enclosure IPS-3929

5 Day Modifications

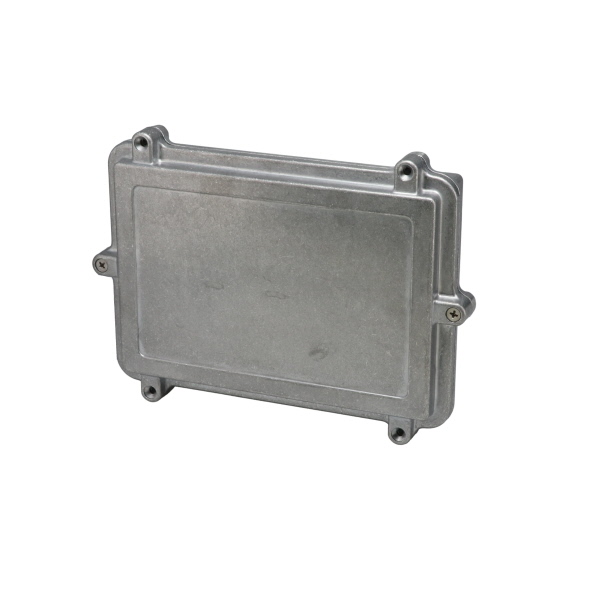

Model # IPS-3929 IPS Series Die Cast Aluminum Enclosures

IP65|IP66
Rugged #ADC-12 die cast aluminum alloy.
Thick wall (0.098 inch, 2.5 mm) construction provides strength and rigidity for heavy duty applications.
One-piece molded outer Silicone gasket provides reliable and long lasting sealing to meet NEMA 4X and IP67 requirements.
Captive cover assembly screws (M4) are located outside the sealing area.
Recessed area on cover surface for decals.
Easily machined and modified to your particular requirements.
Finish: Natural
Optional die cast external mounting brackets available – ANX-1390 (Natural), ANX-1390-B (Black)

Check Stock / Pricing Request Modifications Compare Sizes and Models See Accessories

External Size L x W x D: 7.95" x 5.59" x 2.17"

Internal Size L x W x D: 7.09" x 4.72" x 1.97"

Weight: 1.5 lbs

Color: Natural

RoHS Certified: Always Compliant

Gasket Type: Silicone

NEMA Rating: NEMA 4X

IP Rating: IP65, IP66

Cover Style: Opaque, Screw Down Cover

Drawing

IPS-3929 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
IPS-3933	10.30" x 7.71" x 2.17" 10.307.712.17	9.45" x 6.30" x 1.97"
IPS-3935	10.30" x 7.71" x 3.54" 10.307.713.54	9.45" x 6.30" x 3.35"
IPS-3909	10.79" x 6.81" x 2.60" 10.796.812.60	9.92" x 5.94" x 2.36"
IPS-3911	10.79" x 6.81" x 3.94" 10.796.813.94	9.92" x 5.94" x 3.70"
IPS-3901	3.79" x 3.79" x 1.77" 3.793.791.77	2.83" x 2.64" x 1.53"
IPS-3903	3.79" x 3.79" x 2.64" 3.793.792.64	2.83" x 2.64" x 2.40"
IPS-3913	5.91" x 3.94" x 1.97" 5.913.941.97	5.03" x 3.06" x 1.73"
IPS-3915	5.91" x 3.94" x 2.95" 5.913.942.95	5.03" x 3.06" x 2.71"
IPS-3921	5.98" x 4.41" x 1.18" 5.984.411.18	5.12" x 3.54" x 0.98"
IPS-3923	5.98" x 4.41" x 2.17" 5.984.412.17	5.12" x 3.54" x 1.97"
IPS-3925	6.38" x 6.38" x 2.17" 6.386.382.17	5.51" x 5.51" x 1.97"
IPS-3927	6.38" x 6.38" x 3.15" 6.386.383.15	5.51" x 5.51" x 2.95"
IPS-3905	7.56" x 3.78" x 1.77" 7.563.781.77	6.69" x 2.91" x 1.54"
IPS-3907	7.56" x 3.78" x 2.64" 7.563.782.64	6.69" x 2.91" x 1.95"
IPS-3916	7.87" x 5.91" x 1.10" 7.875.911.10	7.06" x 5.09" x 0.94"
IPS-3917	7.87" x 5.91" x 1.97" 7.875.911.97	7.00" x 5.03" x 1.73"
IPS-3919	7.87" x 5.91" x 2.95" 7.875.912.95	7.00" x 5.03" x 2.71"
IPS-3929	7.95" x 5.59" x 2.17" 7.955.592.17	7.09" x 4.72" x 1.97"
IPS-3931	7.95" x 5.59" x 3.15" 7.955.593.15	7.09" x 4.72" x 2.95"
