PBB-11833-2

Polycarbonate Two Push Button Box PBB-11833-2
5 Day Modifications

Product Details

Model # PBB-11833-2 PBB Series Fiberglass Push Button Box
  • Suited for two 30mm push buttons, four-way keyed.
  • Body made of gray polycarbonate resin 10% glass fiber filled.
  • Cover made of gray polycarbonate.
  • High impact resistance. IP 67 TUV rating keeps out dust and water in extreme conditions.
  • UL508 / NEMA type 4X and type 6 listed #E343339.
  • CE Low Voltage directive 2006/95/EC Compliant.
  • RoHs compliant.
  • Non-chlorinated and non-brominated flame retardant with UL-94 V0 rating.
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C.
  • Nonmetallic captive screws without the risk of stripping.
  • Good chemical resistance.
  • Continuous gasket.
 Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 5.12" x 3.15" x 3.35"
Internal Size L x W x D: 3.69" x 1.73" x 2.75"
Weight: 0.6 lbs
Color: Light Gray
RoHS Certified: 03/10/2018
Type of Plastic: Polycarbonate
Indoor / Outdoor: Outdoor (UV Stabilized)
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 70°C
Flammability Rating: UL94-V0
Door Type of Plastic: Polycarbonate
Features: 10% Fiberglas Reinforced Plastic

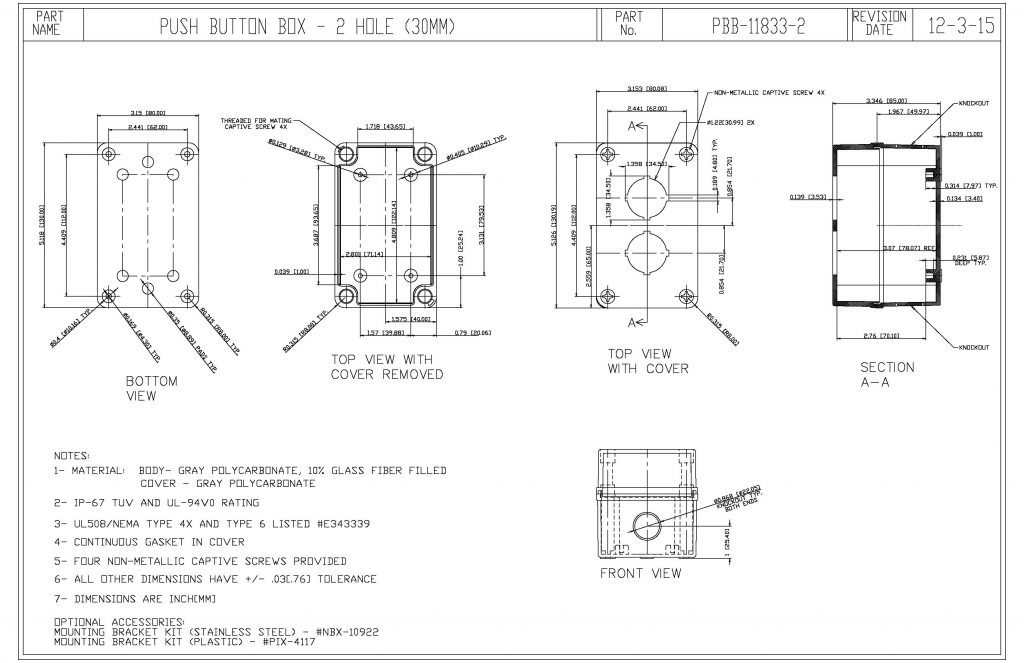

Drawing

PBB-11833-2 Dimensions

OTHER MODELS IN THIS SERIES

Model # Internal Dimensions External Dimensions
PBB-11815-1 4.33" x 3.15" x 3.35" 4.333.153.35 2.91" x 1.73" x 2.75"
PBB-11831-1 4.33" x 3.15" x 3.35" 4.333.153.35 2.91" x 1.73" x 2.75"
PBB-11817-2 5.12" x 3.15" x 3.35" 5.123.153.35 3.69" x 1.73" x 2.75"
PBB-11833-2 5.12" x 3.15" x 3.35" 5.123.153.35 3.69" x 1.73" x 2.75"
PBB-11819-3 7.09" x 3.15" x 3.35" 7.093.153.35 5.67" x 1.73" x 2.75"
PBB-11835-3 7.09" x 3.15" x 3.35" 7.093.153.35 5.67" x 1.73" x 2.75"
PBB-11821-4 9.84" x 3.15" x 3.35" 9.843.153.35 8.42" x 1.73" x 2.75"
PBB-11837-4 9.84" x 3.15" x 3.35" 9.843.153.35 8.42" x 1.73" x 2.75"
