PTA-23203-C

IP67 ABS Enclosure Screw Down Clear Cover PTA-23203-C

Product Details

Model # PTA-23203-C PTA Series - IP67 ABS Plastic Enclosures
  • Body made of gray ABS plastic
  • Cover made of clear polycarbonate plastic
  • No metal components – all plastic box
  • High impact resistance
  • Re-enforced corners
  • IP-67 TUV rating to keep out dust and water in extreme conditions including submersion. No UL label
  • RoHs compliant
  • Flammability rating UL94-HB
  • Suitable for indoor use with respect to exposure to ultraviolet light
  • Continuous gasket
  • Internal mounting bosses
  • Covers attach with 4 plastic screws
 Check Stock / Pricing Request Modifications Compare Sizes and Models
External Size L x W x D: 10.63" x 3.94" x 3.15"
Internal Size L x W x D: 10.39" x 3.70" x 2.91"
Weight: 2.2 lbs
RoHS Certified: Always Compliant
IP Rating: IP67
Cover Style: Clear, Screw Down Cover
Latch Style: Stainless Steel
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
Service Temperature Min: 20°C
Service Temperature Max: 60°C

If you’re looking for a ABS IP rated enclosure for a printed circuit board (PCB) that measures up to 10.39" x 3.70" x 2.91" or smaller, then this enclosure is an excellent choice.

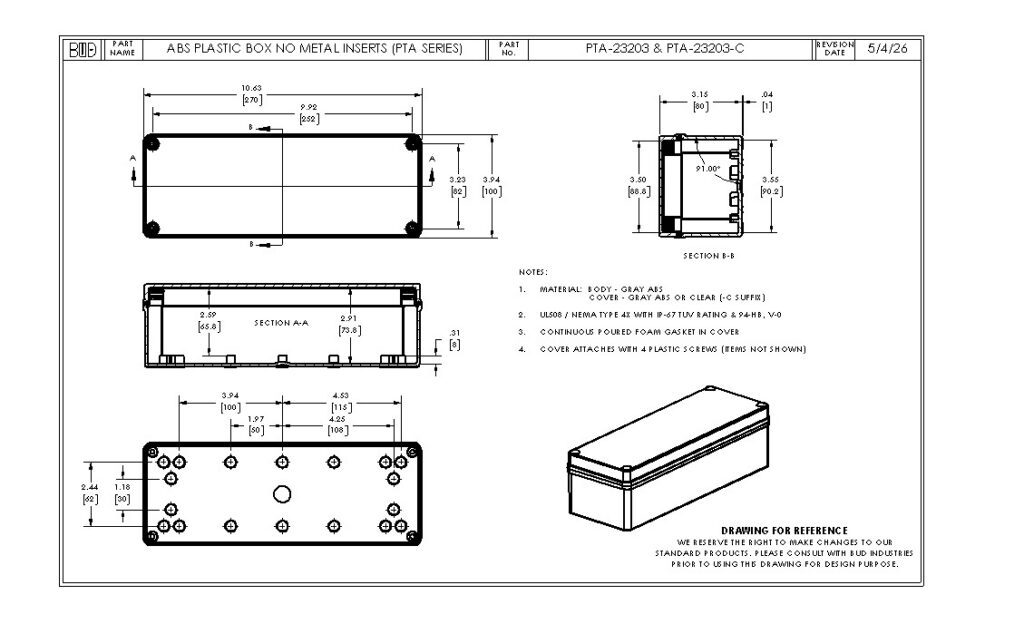

Drawing

PTA-23203-C Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
PTA-23203 10.63" x 3.94" x 3.15" 10.633.943.15 10.39" x 3.70" x 2.91" Opaque, Screw Down Cover
PTA-23203-C 10.63" x 3.94" x 3.15" 10.633.943.15 10.39" x 3.70" x 2.91" Clear, Screw Down Cover
PTA-23601 10.63" x 3.94" x 3.15" 10.633.943.15 10.39" x 3.70" x 2.91" Opaque
PTA-23601-C 10.63" x 3.94" x 3.15" 10.633.943.15 10.39" x 3.70" x 2.91" Clear
PTA-23204 12.21" x 4.33" x 3.15" 12.214.333.15 11.97" x 4.09" x 2.91" Opaque, Screw Down Cover
PTA-23204-C 12.21" x 4.33" x 3.15" 12.214.333.15 11.97" x 4.09" x 2.91" Clear, Screw Down Cover
PTA-23602 12.21" x 4.33" x 3.15" 12.214.333.15 11.97" x 4.09" x 2.91" Opaque, Hinged Cover
PTA-23602-C 12.21" x 4.33" x 3.15" 12.214.333.15 11.97" x 4.09" x 2.91" Clear, Hinged Cover
PTA-23205 13.78" x 9.84" x 3.94" 13.789.843.94 13.54" x 9.60" x 3.70" Opaque, Screw Down Cover
PTA-23205-C 13.78" x 9.84" x 3.94" 13.789.843.94 13.54" x 9.60" x 3.70" Clear, Screw Down Cover
PTA-23603 13.78" x 9.84" x 3.94" 13.789.843.94 13.54" x 9.60" x 3.70" Opaque, Hinged Cover
PTA-23603-C 13.78" x 9.84" x 3.94" 13.789.843.94 13.54" x 9.60" x 3.70" Clear, Hinged Cover
