PTQ-11145

ABS Box with Stainless Steel Latch PTQ-11145

Product Details

Model # PTQ-11145 PTQ Series ABS Box
  • Body made of ABS UL94-HB plastic
  • Stainless-steel latch
  • IP67 TUV rating to keep out dust and water in extreme conditions (design to meet NEMA Type 6 INDOOR)
  • RoHs compliant
  • Suitable for indoor use
  • -20c to +60c extended exposure condition
  • Continuous gasket
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 10.96" x 6.69" x 4.33"
Internal Size L x W x D: 10.01" x 5.74" x 4.07"
Weight: 1.7 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Use Gallery Photo: true
IP Rating: IP67
Cover Style: Opaque, Hinged Cover
Latch Style: Stainless Steel
Knockouts: No Knockouts
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-HB
Door Flammability Rating: UL94-HB
Type of Plastic: ABS
Door Type of Plastic: ABS
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 95°C

If you’re looking for a ABS IP rated enclosure for a printed circuit board (PCB) that measures up to 10.01" x 5.74" x 4.07" or smaller, then this enclosure is an excellent choice.

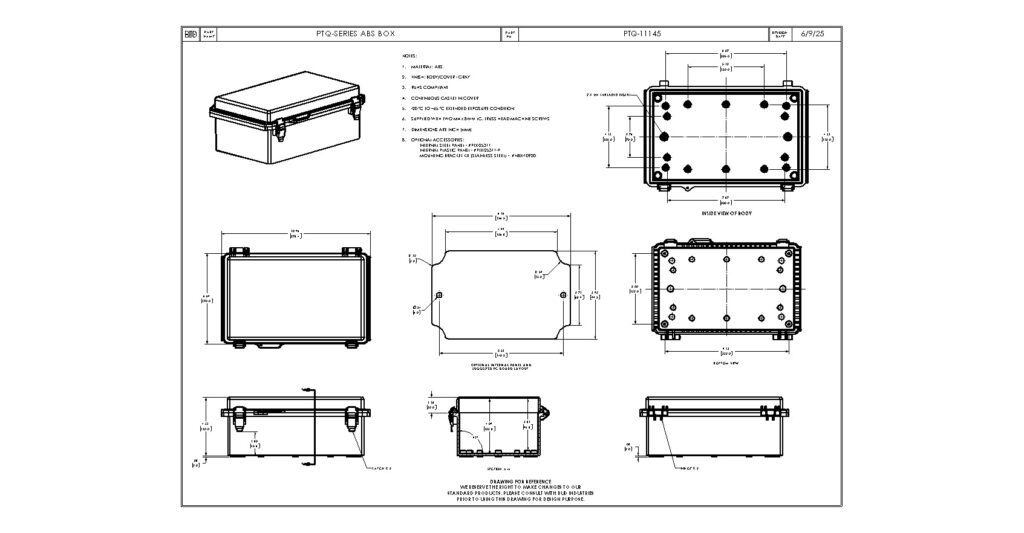

Drawing

PTQ-11145 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style Indoor / Outdoor Type of Plastic
PTQ-11142 10.20" x 4.33" x 3.94" 10.24.333.94 10.10" x 4.21" x 3.82" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11150 10.24" x 6.30" x 3.94" 10.246.33.94 9.15" x 5.28" x 3.41" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11141 10.57" x 6.30" x 5.12" 10.576.35.12 9.62" x 5.35" x 4.86" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11145 10.96" x 6.69" x 4.33" 10.966.694.33 10.01" x 5.74" x 4.07" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11157 11.02" x 7.48" x 5.51" 11.027.485.51 9.87" x 6.34" x 4.82" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11154 11.35" x 11.02" x 5.12" 11.3511.025.12 10.40" x 10.07" x 4.86" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11149 11.35" x 7.48" x 3.95" 11.357.483.95 10.40" x 6.53" x 3.69" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11158 11.80" x 7.87" x 5.12" 11.87.875.12 11.60" x 7.75" x 5.00" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11166 11.81" x 11.81" x 7.09" 11.8111.817.09 11.69" x 11.60" x 6.97" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11159 11.81" x 7.87" x 5.91" 11.817.875.91 10.51" x 6.70" x 5.21" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11170 13.78" x 13.78" x 5.91" 13.7813.785.91 13.66" x 13.60" x 5.79" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11162 13.78" x 9.84" x 7.09" 13.789.847.09 12.70" x 8.76" x 6.84" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11153 14.11" x 9.84" x 5.90" 14.119.845.9 13.16" x 8.89" x 5.64" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11164 14.96" x 11.02" x 5.12" 14.9611.025.12 13.84" x 9.89" x 4.42" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11168 15.75" x 11.81" x 5.91" 15.7511.815.91 15.51" x 11.50" x 5.21" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11172 17.72" x 13.78" x 4.72" 17.7213.784.72 17.60" x 13.60" x 4.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11173 17.72" x 13.78" x 6.30" 17.7213.786.3 17.87" x 13.50" x 5.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11176 19.69" x 15.75" x 7.87" 19.6915.757.87 19.45" x 15.50" x 7.18" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11177 23.62" x 15.75" x 7.09" 23.6215.757.09 23.50" x 15.63" x 6.97" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11180 24.80" x 20.87" x 10.04" 24.820.8710.04 24.28" x 20.50" x 9.30" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11181 28.74" x 20.87" x 7.28" 28.7420.877.28 28.60" x 20.75" x 7.16" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11183 32.68" x 24.80" x 7.28" 32.6824.87.28 32.50" x 24.68" x 7.16" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11135 4.72" x 3.54" x 2.76" 4.723.542.76 4.60" x 3.42" x 2.64" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11138 5.91" x 3.94" x 3.35" 5.913.943.35 5.79" x 3.82" x 3.23" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11146 5.91" x 5.91" x 3.55" 5.915.913.55 4.59" x 4.59" x 3.11" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11147 5.91" x 5.91" x 4.73" 5.915.914.73 5.79" x 5.79" x 4.60" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11144 7.28" x 5.31" x 3.36" 7.285.313.36 7.16" x 5.19" x 3.23" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11155 8.27" x 8.27" x 5.13" 8.278.275.13 8.15" x 8.15" x 5.00" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11140 8.60" x 6.30" x 5.12" 8.66.35.12 7.65" x 5.35" x 4.86" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
PTQ-11143 8.60" x 8.27" x 3.94" 8.68.273.94 7.65" x 7.32" x 3.68" Opaque, Hinged Cover Indoor (Not UV Stabilized) ABS
