SCH-11920-C

Product Details

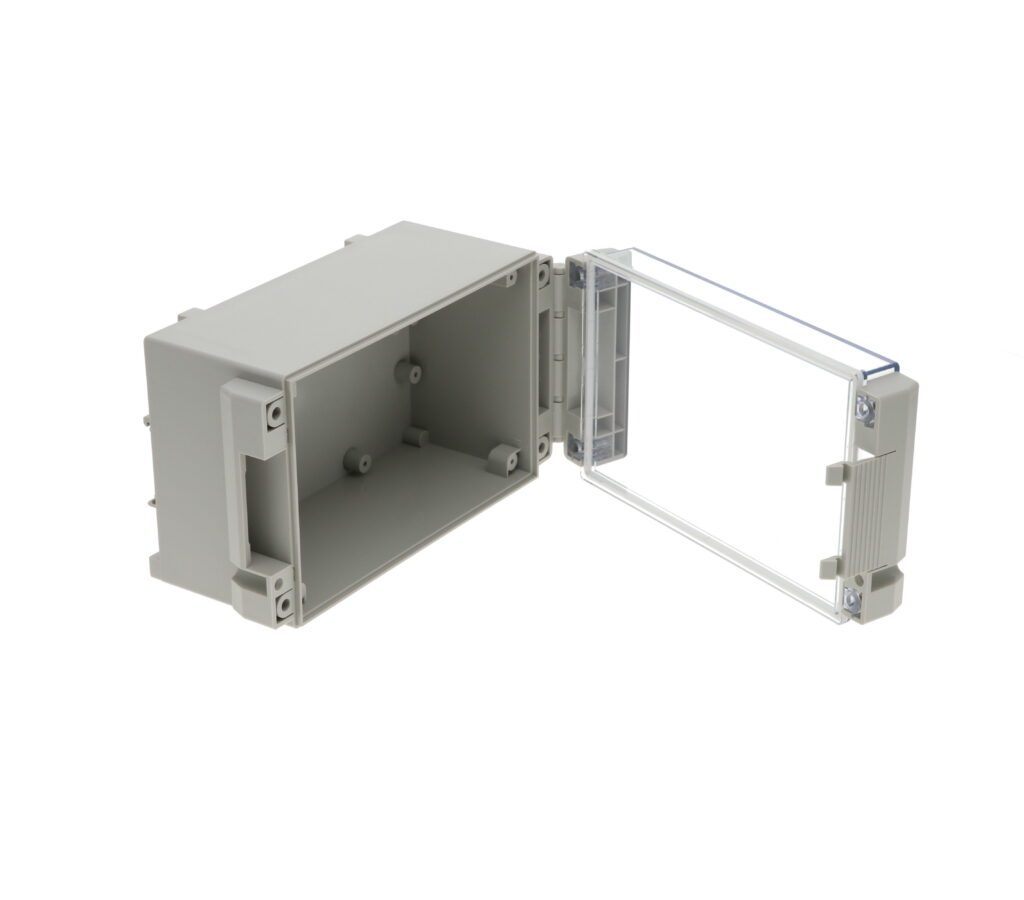

Model # SCH-11920-C SCH Series IP65 ABS Plastic Enclosures

• Designed to IP65 of IEC 529 specifications .
• UL94 -HB flammability rating for both polycarbonate (clear cover) and ABS plastic (gray body, gray cover, hinge kit).
• Body material in all models is ABS plastic.
• Working temperature: -20ºc to +60ºc.
• Gasket material: EPDM.
• Hinge/Latch can be on left or right side.
• DIN rail mountable (external) via molded mounts (DNR-4790).
• Can be mounted via 4 plastic mounting brackets (MB-1390-LG).
• Latch can accommodate a small lock (0.180” diameter).
• Pre-configured with 4 knockouts for cable glands (NG, IPG, MPG series) depending on the model.
• For versatility, each model has knockouts in each of these sizes: PG 9, PG 11, PG13.5.

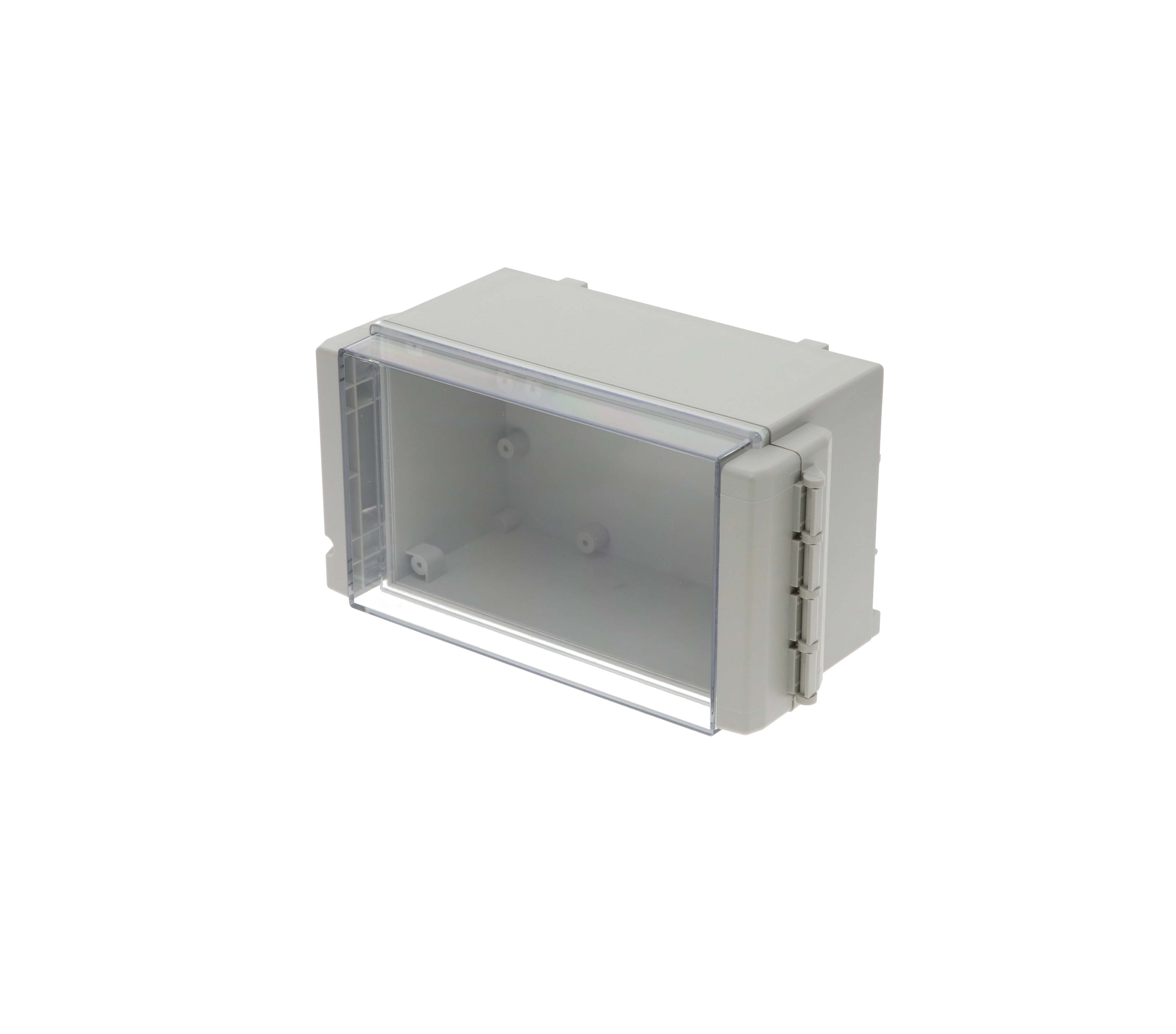

• Clear lid.
• For Dual Compartment version see Bud’s DCH series.

Check Stock / Pricing Request Modifications Compare Sizes and ModelsSee Accessories

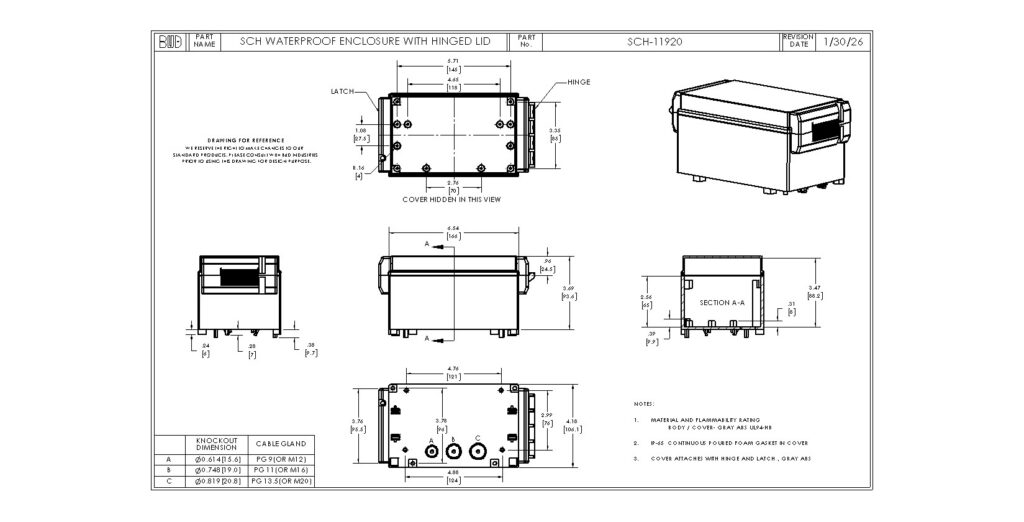

If you’re looking for a ABS IP rated enclosure for a printed circuit board (PCB) that measures up to 6.30" x 3.93" x 3.46" or smaller, then this enclosure is an excellent choice.
