General Use Boxes

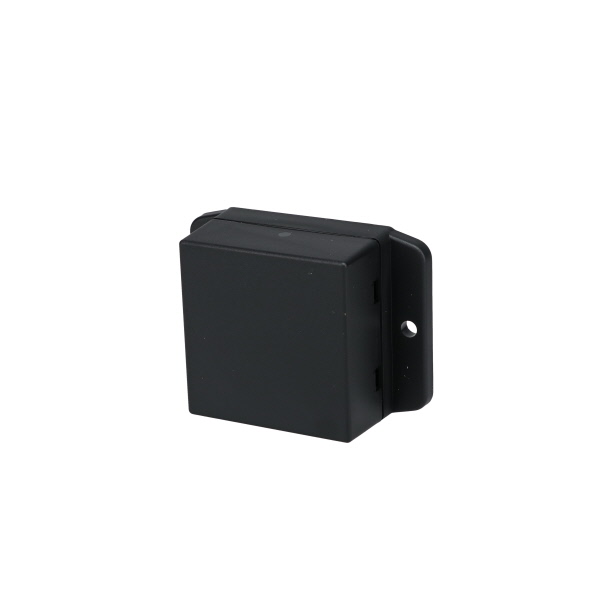

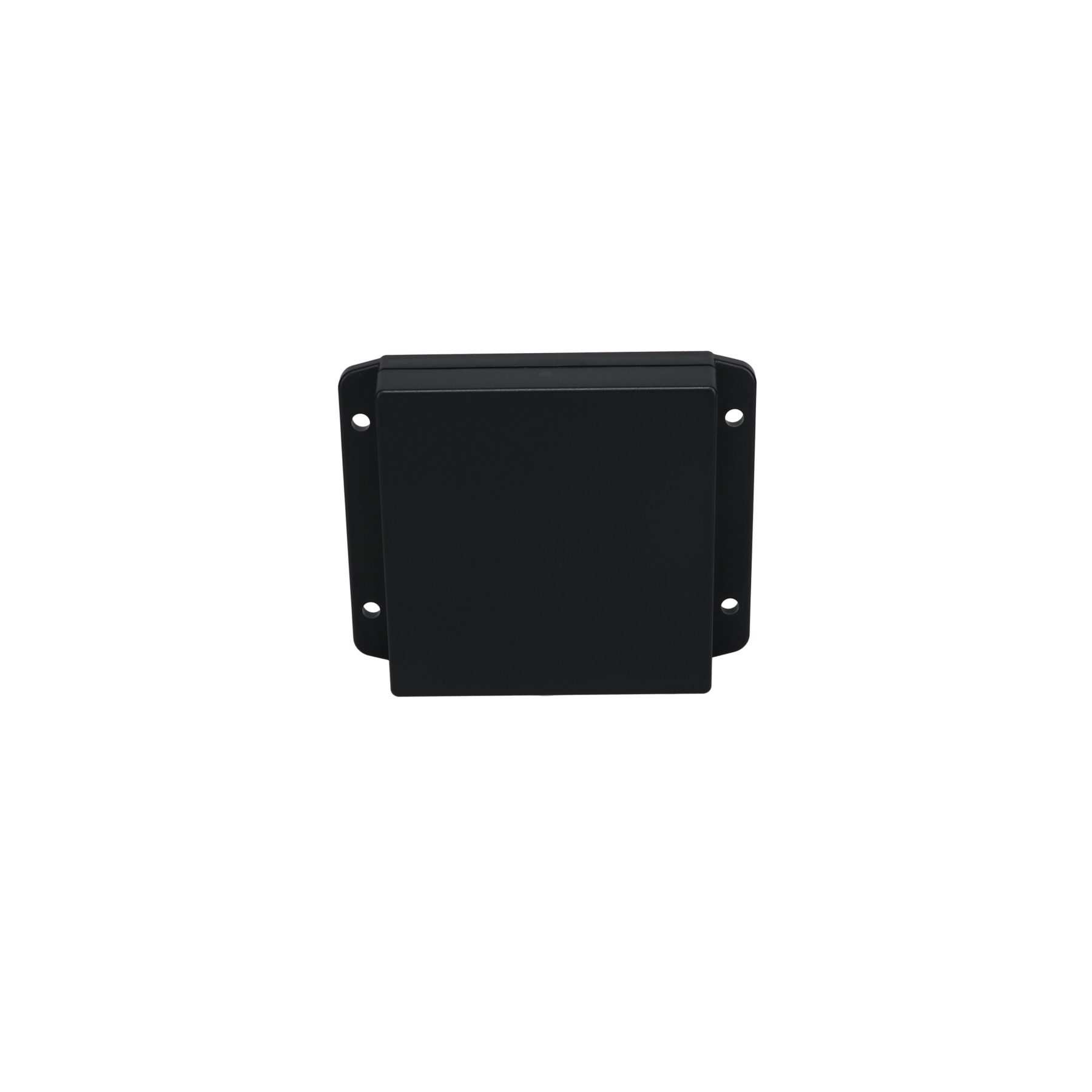

Snap Utility Box Series

Bud’s Snap Utility Box Series offers great value in the plastic utility boxes category. It has a snap-fit cover for tool-less assembly. Having molded mounting flanges, it is ideal for housing small PCBs or for use as a potting box. It is made of durable ABS plastic with a UL94-HB flammability rating. (A polycarbonate version with a UL94-V0 rating may be special ordered—contact Bud customer service.)



Filter Models

Snap Utility Box Black CU-18420-B

Snap Utility Box Series
Model # CU-18420-B
External Size L x W x D: 1.38" x 1.97" x 0.87"
Internal Size L x W x D: 1.81" x 1.22" x 0.71"

Snap Utility Box White CU-18420-W

Snap Utility Box Series
Model # CU-18420-W
External Size L x W x D: 1.97" x 1.38" x 0.87"
Internal Size L x W x D: 1.81" x 1.22" x 0.71"

Snap Utility Box Black CU-18421-B

Snap Utility Box Series
Model # CU-18421-B
External Size L x W x D: 1.97" x 1.97" x 0.67"
Internal Size L x W x D: 1.81" x 1.81" x 0.51"

Snap Utility Box White CU-18421-W

Snap Utility Box Series
Model # CU-18421-W
External Size L x W x D: 1.97" x 1.97" x 0.67"
Internal Size L x W x D: 1.81" x 1.81" x 0.51"

Snap Utility Box Black CU-18422-B

Snap Utility Box Series
Model # CU-18422-B
External Size L x W x D: 1.97" x 1.97" x 1.06"
Internal Size L x W x D: 1.81" x 1.81" x 0.91"

Snap Utility Box White CU-18422-W

Snap Utility Box Series
Model # CU-18422-W
External Size L x W x D: 1.97" x 1.97" x 1.06"
Internal Size L x W x D: 1.81" x 1.81" x 0.91"

Snap Utility Box Black CU-18423-B

Snap Utility Box Series
Model # CU-18423-B
External Size L x W x D: 2.76" x 1.97" x 0.67"
Internal Size L x W x D: 2.6" x 1.81" x 0.51"

Snap Utility Box White CU-18423-W

Snap Utility Box Series
Model # CU-18423-W
External Size L x W x D: 2.76" x 1.97" x 0.67"
Internal Size L x W x D: 2.6" x 1.81" x 0.51"

Snap Utility Box Black CU-18424-B

Snap Utility Box Series
Model # CU-18424-B
External Size L x W x D: 2.76" x 1.97" x 1.16"
Internal Size L x W x D: 2.6" x 1.81" x 1"

Snap Utility Box White CU-18424-W

Snap Utility Box Series
Model # CU-18424-W
External Size L x W x D: 2.76" x 1.97" x 1.16"
Internal Size L x W x D: 2.6" x 1.81" x 1"

Snap Utility Box Black CU-18425-B

Snap Utility Box Series
Model # CU-18425-B
External Size L x W x D: 2.76" x 1.97" x 1.65"
Internal Size L x W x D: 2.6" x 1.81" x 1.5"

Snap Utility Box White CU-18425-W

Snap Utility Box Series
Model # CU-18425-W
External Size L x W x D: 2.76" x 1.97" x 1.65"
Internal Size L x W x D: 2.6" x 1.81" x 1.5"

Snap Utility Box Black CU-18426-B

Snap Utility Box Series
Model # CU-18426-B
External Size L x W x D: 3.54" x 1.77" x 1.08"
Internal Size L x W x D: 3.39" x 1.61" x 0.93"

Snap Utility Box White CU-18426-W

Snap Utility Box Series
Model # CU-18426-W
External Size L x W x D: 3.54" x 1.77" x 1.08"
Internal Size L x W x D: 3.39" x 1.61" x 0.93"

Snap Utility Box Black CU-18427-B

Snap Utility Box Series
Model # CU-18427-B
External Size L x W x D: 4.13" x 2.76" x 0.81"
Internal Size L x W x D: 3.98" x 2.6" x 0.65"

Snap Utility Box White CU-18427-W

Snap Utility Box Series
Model # CU-18427-W
External Size L x W x D: 4.13" x 2.76" x 0.81"
Internal Size L x W x D: 3.98" x 2.6" x 0.65"

Snap Utility Box Black CU-18428-B

Snap Utility Box Series
Model # CU-18428-B
External Size L x W x D: 4.13" x 2.76" x 1.4"
Internal Size L x W x D: 3.98" x 2.6" x 1.24"

Snap Utility Box White CU-18428-W

Snap Utility Box Series
Model # CU-18428-W
External Size L x W x D: 4.13" x 2.76" x 1.4"
Internal Size L x W x D: 3.98" x 2.6" x 1.24"

Snap Utility Box Black CU-18429-B

Snap Utility Box Series
Model # CU-18429-B
External Size L x W x D: 4.13" x 2.76" x 1.99"
Internal Size L x W x D: 3.98" x 2.6" x 1.83"

Snap Utility Box White CU-18429-W

Snap Utility Box Series
Model # CU-18429-W
External Size L x W x D: 4.13" x 2.76" x 1.99"
Internal Size L x W x D: 3.98" x 2.6" x 1.83"

Snap Utility Box Black CU-18430-B

Snap Utility Box Series
Model # CU-18430-B
External Size L x W x D: 3.15" x 3.15" x 0.93"
Internal Size L x W x D: 2.99" x 2.99" x 0.77"

Snap Utility Box White CU-18430-W

Snap Utility Box Series
Model # CU-18430-W
External Size L x W x D: 3.15" x 3.15" x 0.93"
Internal Size L x W x D: 2.99" x 2.99" x 0.77"

Snap Utility Box Black CU-18431-B

Snap Utility Box Series
Model # CU-18431-B
External Size L x W x D: 3.15" x 3.15" x 1.71"
Internal Size L x W x D: 2.99" x 2.99" x 1.56"

Snap Utility Box White CU-18431-W

Snap Utility Box Series
Model # CU-18431-W
External Size L x W x D: 3.15" x 3.15" x 1.71"
Internal Size L x W x D: 2.99" x 2.99" x 1.56"
