CU-18428-W

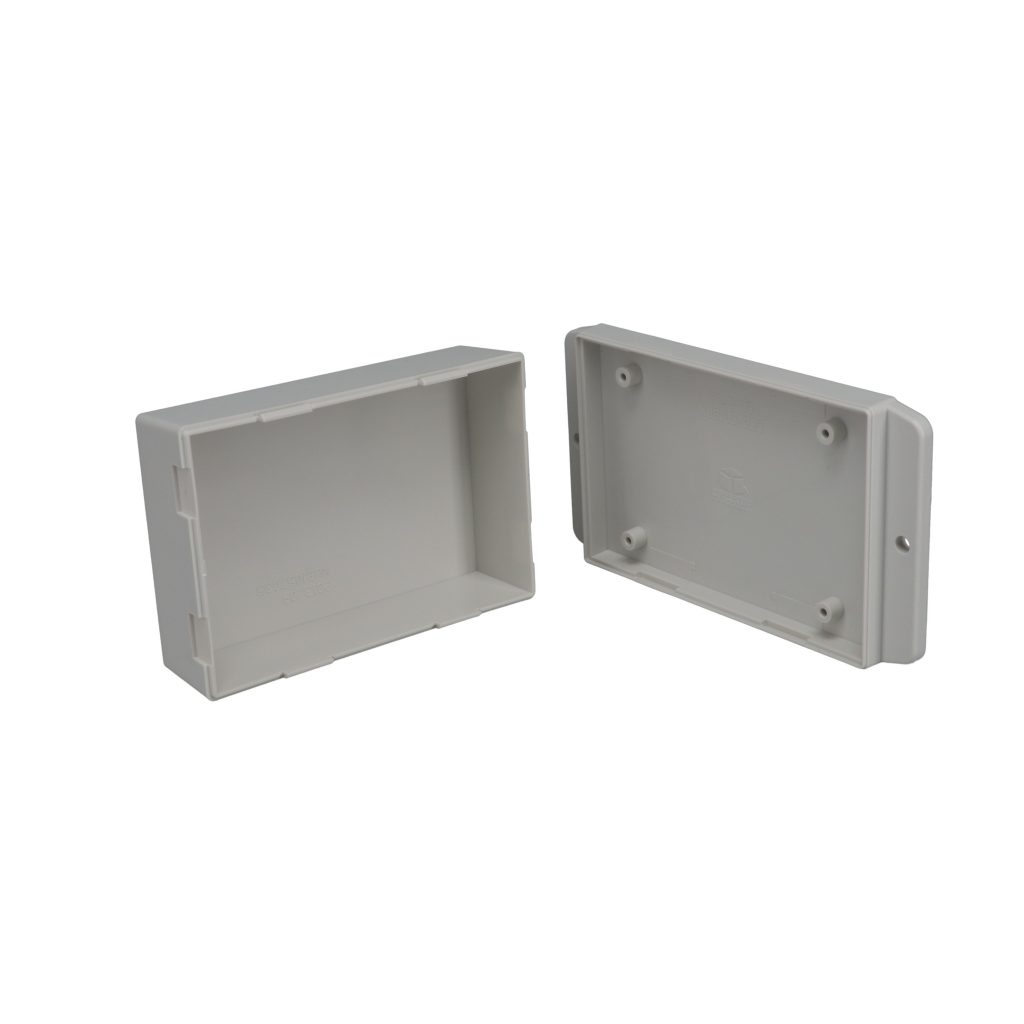

Snap Utility Box White CU-18428-W

Product Details

Model # CU-18428-W Snap Utility Box Series
  • Sturdy and cost effective design
  • Ideally designed for small printed circuit board  or as a potting box
  • Snap fit cover for easy assembly
  • Flanged base with mounting holes for wall mounting
  • Cable outlets are designed into the cover and can be easily cut open
  • High impact ABS
  • UL94-HB (-20c to +70c)
  • ABS or Polycarbonate UL94-V0 rating is available upon request and minimum order size.
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 4.13" x 2.76" x 1.40"
Internal Size L x W x D: 3.98" x 2.60" x 1.24"
Weight: 0.14 lbs
Color: White
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-HB
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
Mounting Style: Mounting Flanges

Drawing

CU-18428-W Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-18420-B 1.38" x 1.97" x 0.87" 1.381.970.87 1.81" x 1.22" x 0.71"
CU-18420-W 1.97" x 1.38" x 0.87" 1.971.380.87 1.81" x 1.22" x 0.71"
CU-18421-W 1.97" x 1.97" x 0.67" 1.971.970.67 1.81" x 1.81" x 0.51"
CU-18421-B 1.97" x 1.97" x 0.67" 1.971.970.67 1.81" x 1.81" x 0.51"
CU-18422-W 1.97" x 1.97" x 1.06" 1.971.971.06 1.81" x 1.81" x 0.91"
CU-18422-B 1.97" x 1.97" x 1.06" 1.971.971.06 1.81" x 1.81" x 0.91"
CU-18423-B 2.76" x 1.97" x 0.67" 2.761.970.67 2.60" x 1.81" x 0.51"
CU-18423-W 2.76" x 1.97" x 0.67" 2.761.970.67 2.60" x 1.81" x 0.51"
CU-18424-B 2.76" x 1.97" x 1.16" 2.761.971.16 2.60" x 1.81" x 1.00"
CU-18424-W 2.76" x 1.97" x 1.16" 2.761.971.16 2.60" x 1.81" x 1.00"
CU-18425-W 2.76" x 1.97" x 1.65" 2.761.971.65 2.60" x 1.81" x 1.50"
CU-18425-B 2.76" x 1.97" x 1.65" 2.761.971.65 2.60" x 1.81" x 1.50"
CU-18430-B 3.15" x 3.15" x 0.93" 3.153.150.93 2.99" x 2.99" x 0.77"
CU-18430-W 3.15" x 3.15" x 0.93" 3.153.150.93 2.99" x 2.99" x 0.77"
CU-18431-B 3.15" x 3.15" x 1.71" 3.153.151.71 2.99" x 2.99" x 1.56"
CU-18431-W 3.15" x 3.15" x 1.71" 3.153.151.71 2.99" x 2.99" x 1.56"
CU-18426-W 3.54" x 1.77" x 1.08" 3.541.771.08 3.39" x 1.61" x 0.93"
CU-18426-B 3.54" x 1.77" x 1.08" 3.541.771.08 3.39" x 1.61" x 0.93"
CU-18427-W 4.13" x 2.76" x 0.81" 4.132.760.81 3.98" x 2.60" x 0.65"
CU-18427-B 4.13" x 2.76" x 0.81" 4.132.760.81 3.98" x 2.60" x 0.65"
CU-18428-W 4.13" x 2.76" x 1.40" 4.132.761.40 3.98" x 2.60" x 1.24"
CU-18428-B 4.13" x 2.76" x 1.40" 4.132.761.40 3.98" x 2.60" x 1.24"
CU-18429-B 4.13" x 2.76" x 1.99" 4.132.761.99 3.98" x 2.60" x 1.83"
CU-18429-W 4.13" x 2.76" x 1.99" 4.132.761.99 3.98" x 2.60" x 1.83"
