AC-407

Aluminum Chassis AC-407
  • Aluminum Chassis

Product Details

Model # AC-407 Aluminum Chassis Series
  • Aluminum chassis is welded at stress points for assured, maximum strength and rigidity
  • Sides folded in at bottom for additional support

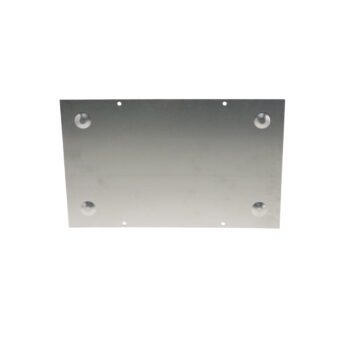

  • Optional bottom plate is easily attached\
 Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing
External Size L x W x D: 2.00" x 7.00" x 11.00"
Internal Size L x W x D: 1.92" x 6.92" x 10.92"
Weight: 0.62 lbs
Color: Natural
hb401.pdf hb401.dxf file/d/1ceackqrrOb9CNDPYYxZbV9L93JjSs5Yq/view?usp=drivesdk

Drawing

AC-407 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
AC-1402 1.00" x 3.50" x 4.50" 1.003.504.50 0.92" x 3.42" x 4.42"
AC-1405 1.50" x 4.00" x 6.00" 1.504.006.00 1.42" x 3.92" x 5.92"
AC-1407 1.50" x 4.50" x 8.00" 1.504.508.00 1.42" x 4.42" x 7.92"
PTR-28494-C 15.70" x 19.70" x 6.30" 15.719.76.3 15.45" x 19.45" x 6.05"
AC-415 2.00" x 10.00" x 17.00" 2.0010.0017.00 1.90" x 9.90" x 16.90"
AC-419 2.00" x 13.00" x 17.00" 2.0013.0017.00 1.90" x 12.90" x 16.90"
AC-1404 2.00" x 4.00" x 5.00" 2.004.005.00 1.92" x 3.92" x 4.92"
AC-431 2.00" x 4.00" x 6.00" 2.004.006.00 1.92" x 3.92" x 5.92"
AC-402 2.00" x 5.00" x 7.00" 2.005.007.00 1.92" x 4.92" x 6.92"
AC-403 2.00" x 5.00" x 9.50" 2.005.009.50 1.92" x 4.92" x 9.42"
AC-407 2.00" x 7.00" x 11.00" 2.007.0011.00 1.92" x 6.92" x 10.92"
AC-409 2.00" x 7.00" x 13.00" 2.007.0013.00 1.92" x 6.92" x 12.92"
AC-1416 2.00" x 7.00" x 17.00" 2.007.0017.00 1.90" x 6.90" x 16.90"
AC-405 2.00" x 7.00" x 7.00" 2.007.007.00 1.92" x 6.92" x 6.92"
AC-406 2.00" x 7.00" x 9.00" 2.007.009.00 1.92" x 6.92" x 8.92"
AC-401 2.50" x 5.00" x 9.50" 2.505.009.50 2.42" x 4.92" x 9.42"
AC-1418 2.50" x 8.00" x 10.00" 2.508.0010.00 2.42" x 7.92" x 9.92"
AC-1419 2.50" x 8.00" x 12.00" 2.508.0012.00 2.40" x 7.90" x 11.90"
AC-413 3.00" x 10.00" x 12.00" 3.0010.0012.00 2.90" x 9.90" x 11.90"
AC-414 3.00" x 10.00" x 14.00" 3.0010.0014.00 2.90" x 9.90" x 13.90"
AC-416 3.00" x 10.00" x 17.00" 3.0010.0017.00 2.90" x 9.90" x 16.90"
AC-1424 3.00" x 12.00" x 12.00" 3.0012.0012.00 2.90" x 11.90" x 11.90"
AC-418 3.00" x 12.00" x 17.00" 3.0012.0017.00 2.90" x 11.90" x 16.90"
AC-420 3.00" x 13.00" x 17.00" 3.0013.0017.00 2.90" x 12.90" x 16.90"
AC-1427 3.00" x 14.00" x 17.00" 3.0014.0017.00 2.90" x 13.90" x 16.90"
AC-1430 3.00" x 17.00" x 17.00" 3.0017.0017.00 2.90" x 16.90" x 16.90"
AC-430 3.00" x 4.00" x 6.00" 3.004.006.00 2.92" x 3.92" x 5.92"
AC-404 3.00" x 5.00" x 10.00" 3.005.0010.00 2.92" x 4.92" x 9.92"
AC-429 3.00" x 5.00" x 7.00" 3.005.007.00 2.92" x 4.92" x 6.92"
AC-421 3.00" x 5.00" x 9.50" 3.005.009.50 2.92" x 4.92" x 9.42"
AC-1414 3.00" x 6.00" x 14.00" 3.006.0014.00 2.90" x 5.90" x 13.90"
AC-433 3.00" x 6.00" x 17.00" 3.006.0017.00 2.90" x 5.90" x 16.90"
AC-408 3.00" x 7.00" x 12.00" 3.007.0012.00 2.92" x 6.92" x 11.92"
AC-411 3.00" x 7.00" x 15.00" 3.007.0015.00 2.90" x 6.90" x 14.90"
AC-423 3.00" x 7.00" x 17.00" 3.007.0017.00 2.90" x 6.90" x 16.90"
AC-424 3.00" x 8.00" x 12.00" 3.008.0012.00 2.90" x 7.90" x 11.90"
AC-412 3.00" x 8.00" x 17.00" 3.008.0017.00 2.90" x 7.90" x 16.90"
AC-1421 3.00" x 9.00" x 15.00" 3.009.0015.00 2.90" x 8.90" x 14.90"
AC-427 4.00" x 10.00" x 17.00" 4.0010.0017.00 3.90" x 9.90" x 16.90"
AC-428 4.00" x 13.00" x 17.00" 4.0013.0017.00 3.90" x 12.90" x 16.90"
AC-1428 4.00" x 15.00" x 17.00" 4.0015.0017.00 3.90" x 14.90" x 16.90"
AC-1431 4.00" x 17.00" x 17.00" 4.0017.0017.00 3.90" x 16.90" x 16.90"
AC-1422 5.00" x 10.00" x 17.00" 5.0010.0017.00 4.90" x 9.90" x 16.90"
AC-1426 5.00" x 13.00" x 17.00" 5.0013.0017.00 4.90" x 12.90" x 16.90"
AC-1429 6.00" x 15.00" x 17.00" 6.0015.0017.00 5.90" x 14.90" x 16.90"
AC-1413 8.00" x 6.00" x 2.00" 86.002 7.92" x 5.92" x 1.91"
