CU-347

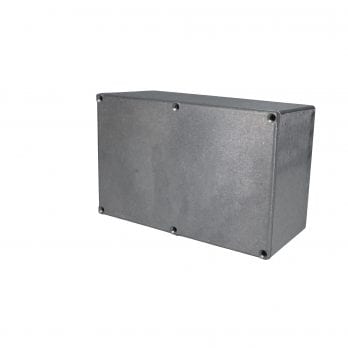

Econobox Aluminum Box CU-347

Product Details

Model # CU-347 Econobox Series Aluminum Boxes - Electronics
  • Close fitting flanged cover fastened to bosses in the body with screws
  •  #ADC-12 aluminum alloy, offers excellent screening properties
  •  Lightweight, easy to machine die cast aluminum enclosures have a number of uses: instrument and meter cases, filter networks, junction bosses, switching and many other applications requiring a small box
  •  Ideal for concealed or other interior use where a safety closure is necessary
 Compare Sizes and Models Request ModificationsCheck Stock / Pricing
External Size L x W x D: 7.39" x 4.70" x 3.21"
Internal Size L x W x D: 6.88" x 4.19" x 3.06"
Weight: 1.5 lbs
Color: Natural
hb123.pdf hb123-1.dxffile/d/1ZChZlh6-C_YKNPZc4q_B4e4mN_yK5c92/view?usp=drivesdk

Drawing

CU-347 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-470 2.00" x 2.00" x 1.25" 2.002.001.251.68" x 1.68" x 1.11"
CU-470-G 2.00" x 2.00" x 1.25" 2.002.001.251.68" x 1.68" x 1.11"
CU-123 3.62" x 1.50" x 1.21" 3.621.501.213.31" x 1.18" x 1.06"
CU-123-G 3.62" x 1.50" x 1.21" 3.621.501.213.31" x 1.18" x 1.06"
CU-471 4.33" x 3.25" x 1.75" 4.333.251.753.92" x 2.84" x 1.59"
CU-471-G 4.33" x 3.25" x 1.75" 4.333.251.753.92" x 2.84" x 1.59"
CU-124 4.37" x 2.37" x 1.21" 4.372.371.214.06" x 2.06" x 1.06"
CU-124-G 4.37" x 2.37" x 1.21" 4.372.371.214.06" x 2.06" x 1.06"
CU-479 4.37" x 2.37" x 2.13" 4.372.372.133.99" x 1.99" x 1.98"
CU-479-G 4.37" x 2.37" x 2.13" 4.372.372.133.99" x 1.99" x 1.98"
CU-473 4.68" x 3.68" x 1.34" 4.683.681.344.30" x 3.30" x 1.18"
CU-473-G 4.68" x 3.68" x 1.34" 4.683.681.344.30" x 3.30" x 1.18"
CU-234 4.68" x 3.68" x 2.21" 4.683.682.214.24" x 3.24" x 2.06"
CU-234-G 4.68" x 3.68" x 2.21" 4.683.682.214.24" x 3.24" x 2.06"
CU-472 4.75" x 3.15" x 2.33" 4.753.152.334.30" x 2.70" x 2.17"
CU-472-G 4.75" x 3.15" x 2.33" 4.753.152.334.30" x 2.70" x 2.17"
CU-474 4.75" x 4.75" x 2.33" 4.754.752.334.30" x 4.30" x 2.17"
CU-474-G 4.75" x 4.75" x 2.33" 4.754.752.334.30" x 4.30" x 2.17"
CU-475 4.75" x 4.75" x 3.75" 4.754.753.754.30" x 4.30" x 3.59"
CU-475-G 4.75" x 4.75" x 3.75" 4.754.753.754.30" x 4.30" x 3.59"
CU-476 6.00" x 3.25" x 2.00" 6.003.252.005.57" x 2.82" x 1.84"
CU-476-G 6.00" x 3.25" x 2.00" 6.003.252.005.57" x 2.82" x 1.84"
CU-477 7.39" x 4.70" x 1.50" 7.394.701.507.00" x 4.31" x 1.34"
CU-477-G 7.39" x 4.70" x 1.50" 7.394.701.507.00" x 4.31" x 1.34"
CU-247 7.39" x 4.70" x 2.21" 7.394.702.216.94" x 4.26" x 2.06"
CU-247-G 7.39" x 4.70" x 2.21" 7.394.702.216.94" x 4.26" x 2.06"
CU-347 7.39" x 4.70" x 3.21" 7.394.703.216.88" x 4.19" x 3.06"
CU-347-G 7.39" x 4.70" x 3.21" 7.394.703.216.88" x 4.19" x 3.06"
CU-478 7.50" x 7.50" x 2.62" 7.507.502.627.03" x 7.03" x 2.46"
CU-478-G 7.50" x 7.50" x 2.62" 7.507.502.627.03" x 7.03" x 2.46"
