CU-473-G

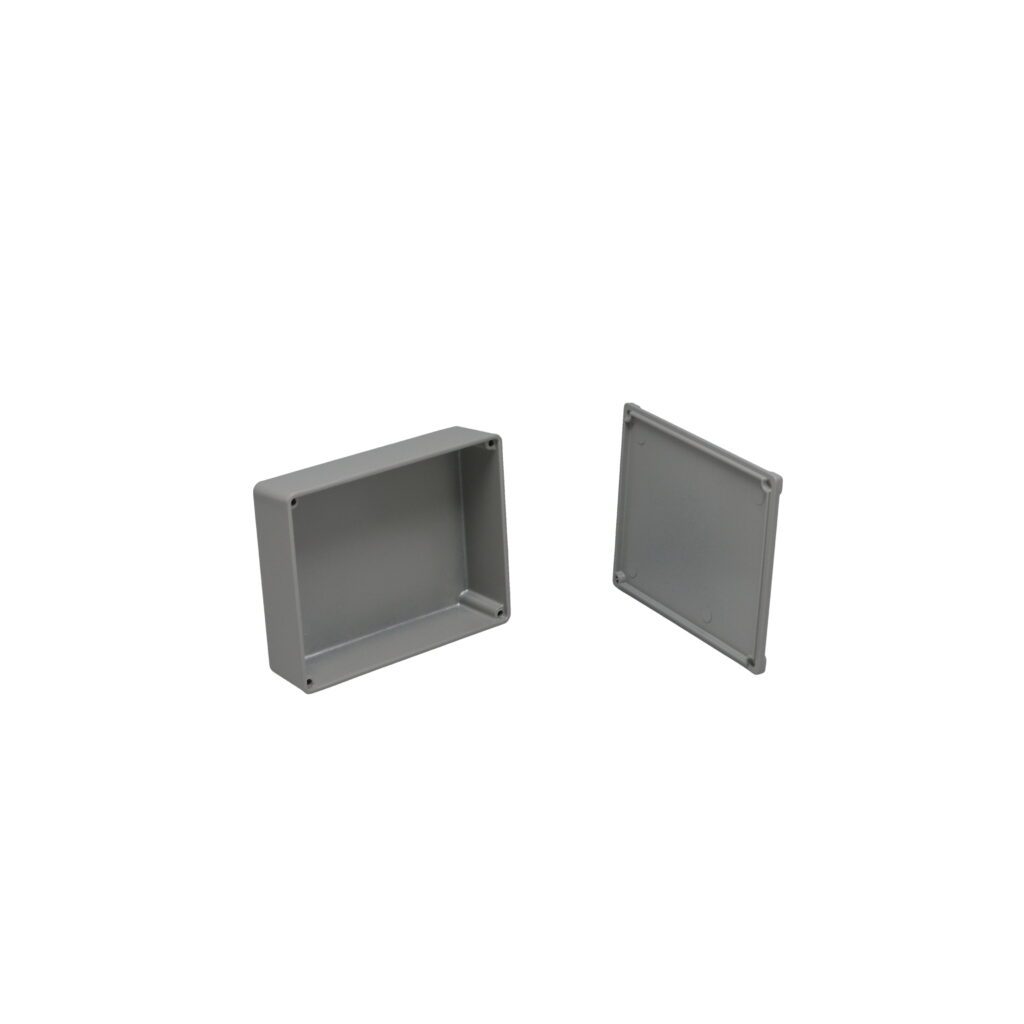

Econobox Aluminum Box Gray CU-473-G
  • Econobox Aluminum Box

Product Details

Model # CU-473-G Econobox Series Aluminum Boxes - Electronics
  • Close fitting flanged cover fastened to bosses in the body with screws
  •  #ADC-12 aluminum alloy, offers excellent screening properties
  •  Lightweight, easy to machine die cast aluminum enclosures have a number of uses: instrument and meter cases, filter networks, junction bosses, switching and many other applications requiring a small box
  •  Ideal for concealed or other interior use where a safety closure is necessary
See Other Models Search by Size Check Stock / Pricing
External Dimensions: 4.68" x 3.68" x 1.34"
Internal Dimensions: 4.3" x 3.3" x 1.18"
Weight: 0.75 lbs
Color: Gray Powder Coat
hb470-1.pdf hb470.dxf

Drawing
