CU-478

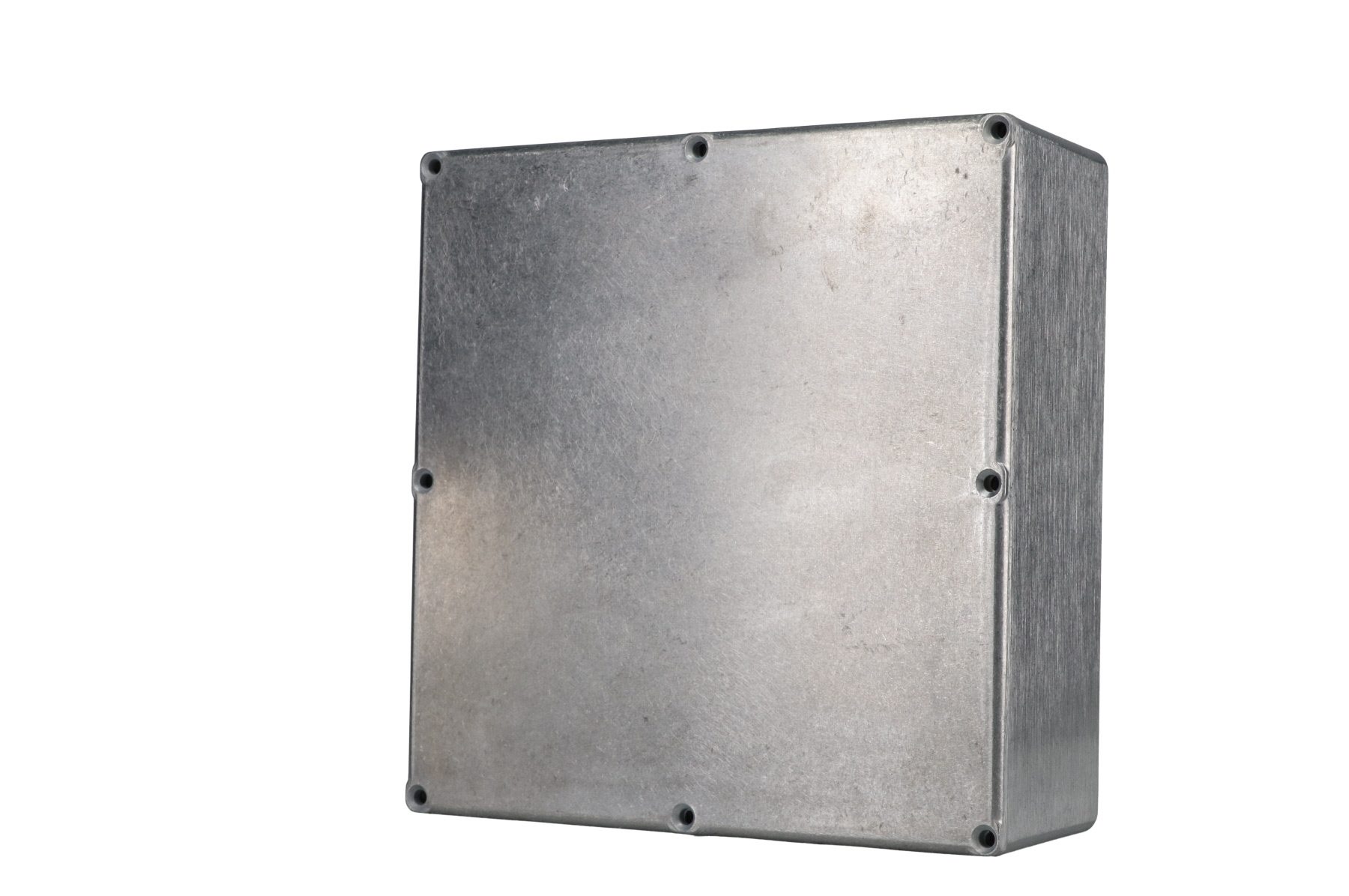

Econobox Aluminum Box CU-478

Product Details

Model # CU-478 Econobox Series Aluminum Boxes - Electronics

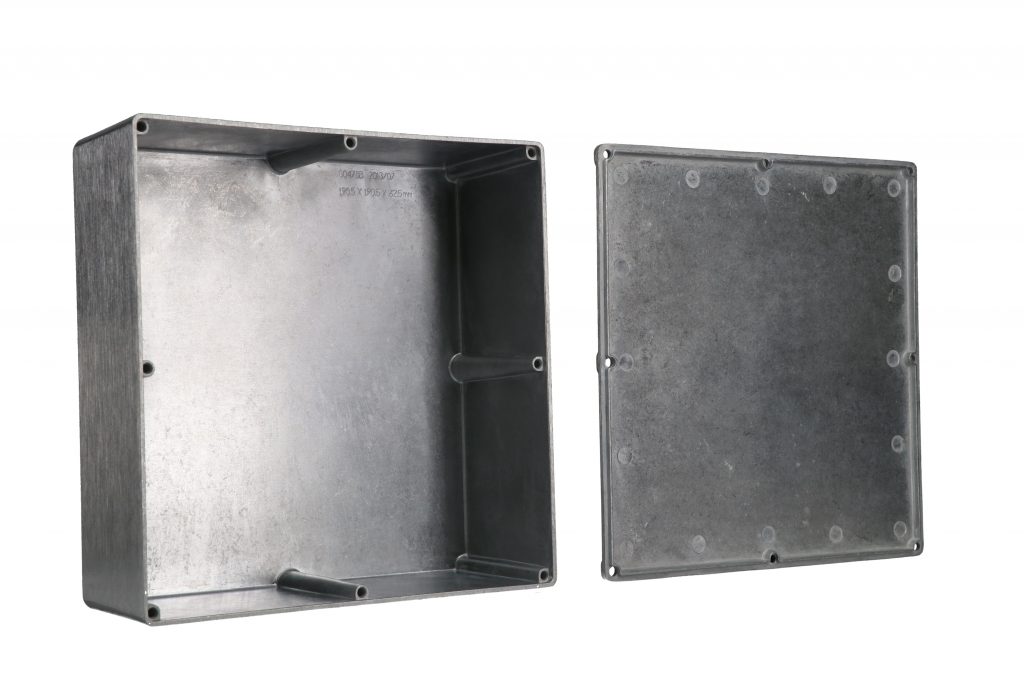

  • Close fitting flanged cover fastened to bosses in the body with screws
  •  #ADC-12 aluminum alloy, offers excellent screening properties
  •  Lightweight, easy to machine die cast aluminum enclosures have a number of uses: instrument and meter cases, filter networks, junction bosses, switching and many other applications requiring a small box
  •  Ideal for concealed or other interior use where a safety closure is necessary
 Compare Sizes and Models Request Modifications Check Stock / Pricing
External Size L x W x D: 7.50" x 7.50" x 2.62"
Internal Size L x W x D: 7.03" x 7.03" x 2.46"
Weight: 2.0 lbs
Color: Natural
hb470-1.pdf hb470.dxf file/d/18jM2SrsXd0EEaxARRYmY6w5HaetyZIoU/view?usp=drivesdk

Drawing

CU-478 Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CU-470 2.00" x 2.00" x 1.25" 2.002.001.25 1.68" x 1.68" x 1.11"
CU-470-G 2.00" x 2.00" x 1.25" 2.002.001.25 1.68" x 1.68" x 1.11"
CU-123 3.62" x 1.50" x 1.21" 3.621.501.21 3.31" x 1.18" x 1.06"
CU-123-G 3.62" x 1.50" x 1.21" 3.621.501.21 3.31" x 1.18" x 1.06"
CU-471 4.33" x 3.25" x 1.75" 4.333.251.75 3.92" x 2.84" x 1.59"
CU-471-G 4.33" x 3.25" x 1.75" 4.333.251.75 3.92" x 2.84" x 1.59"
CU-124 4.37" x 2.37" x 1.21" 4.372.371.21 4.06" x 2.06" x 1.06"
CU-124-G 4.37" x 2.37" x 1.21" 4.372.371.21 4.06" x 2.06" x 1.06"
CU-479 4.37" x 2.37" x 2.13" 4.372.372.13 3.99" x 1.99" x 1.98"
CU-479-G 4.37" x 2.37" x 2.13" 4.372.372.13 3.99" x 1.99" x 1.98"
CU-473 4.68" x 3.68" x 1.34" 4.683.681.34 4.30" x 3.30" x 1.18"
CU-473-G 4.68" x 3.68" x 1.34" 4.683.681.34 4.30" x 3.30" x 1.18"
CU-234 4.68" x 3.68" x 2.21" 4.683.682.21 4.24" x 3.24" x 2.06"
CU-234-G 4.68" x 3.68" x 2.21" 4.683.682.21 4.24" x 3.24" x 2.06"
CU-472 4.75" x 3.15" x 2.33" 4.753.152.33 4.30" x 2.70" x 2.17"
CU-472-G 4.75" x 3.15" x 2.33" 4.753.152.33 4.30" x 2.70" x 2.17"
CU-474 4.75" x 4.75" x 2.33" 4.754.752.33 4.30" x 4.30" x 2.17"
CU-474-G 4.75" x 4.75" x 2.33" 4.754.752.33 4.30" x 4.30" x 2.17"
CU-475 4.75" x 4.75" x 3.75" 4.754.753.75 4.30" x 4.30" x 3.59"
CU-475-G 4.75" x 4.75" x 3.75" 4.754.753.75 4.30" x 4.30" x 3.59"
CU-476 6.00" x 3.25" x 2.00" 6.003.252.00 5.57" x 2.82" x 1.84"
CU-476-G 6.00" x 3.25" x 2.00" 6.003.252.00 5.57" x 2.82" x 1.84"
CU-477 7.39" x 4.70" x 1.50" 7.394.701.50 7.00" x 4.31" x 1.34"
CU-477-G 7.39" x 4.70" x 1.50" 7.394.701.50 7.00" x 4.31" x 1.34"
CU-247 7.39" x 4.70" x 2.21" 7.394.702.21 6.94" x 4.26" x 2.06"
CU-247-G 7.39" x 4.70" x 2.21" 7.394.702.21 6.94" x 4.26" x 2.06"
CU-347 7.39" x 4.70" x 3.21" 7.394.703.21 6.88" x 4.19" x 3.06"
CU-347-G 7.39" x 4.70" x 3.21" 7.394.703.21 6.88" x 4.19" x 3.06"
CU-478 7.50" x 7.50" x 2.62" 7.507.502.62 7.03" x 7.03" x 2.46"
CU-478-G 7.50" x 7.50" x 2.62" 7.507.502.62 7.03" x 7.03" x 2.46"
