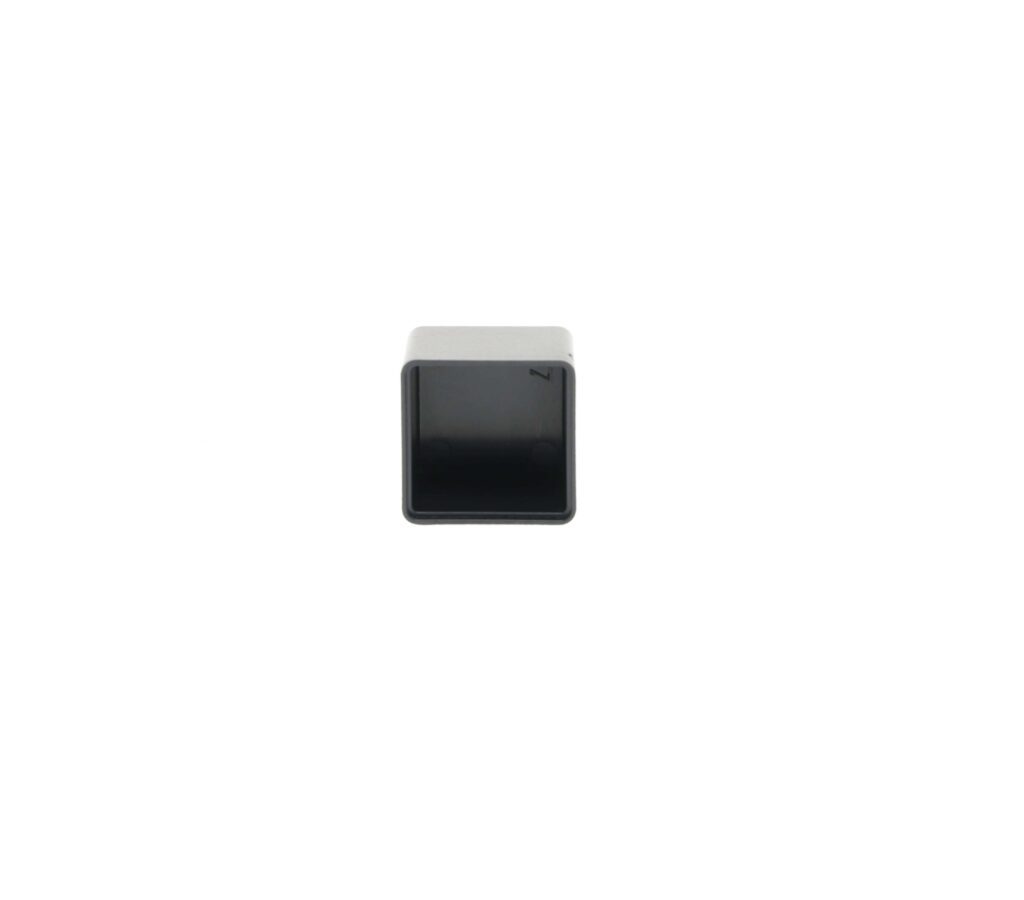

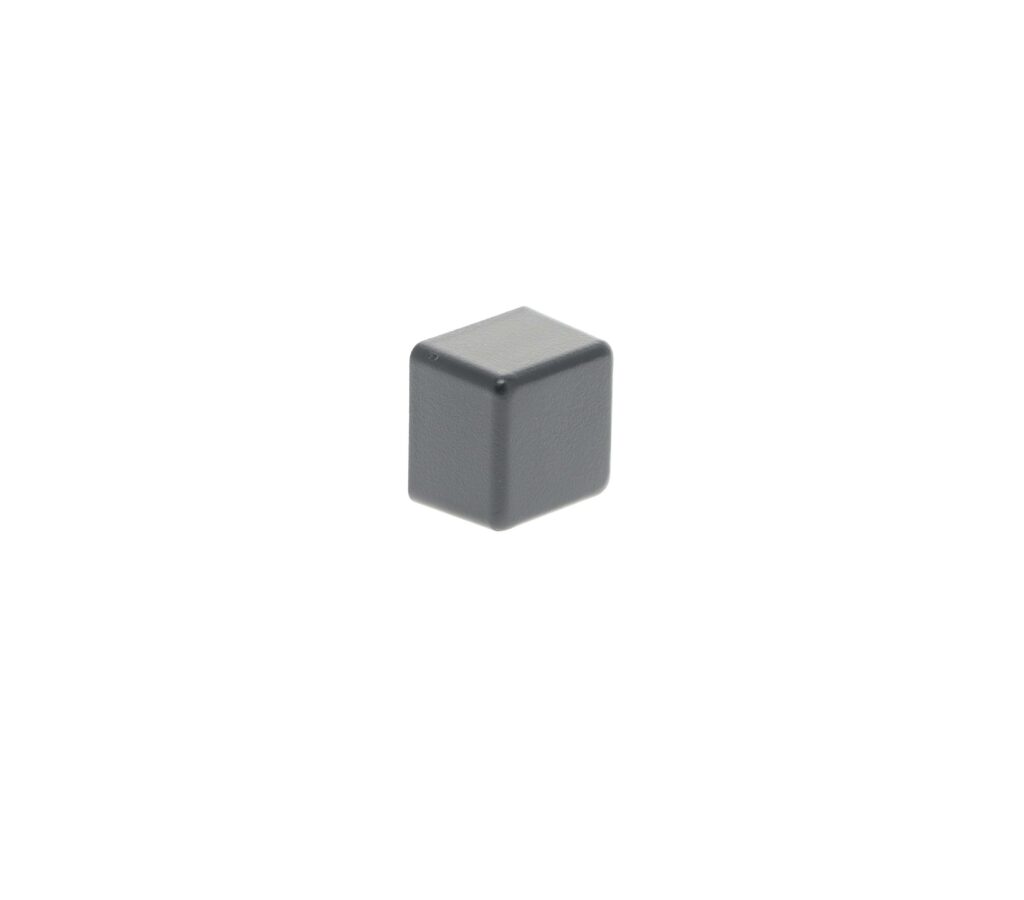

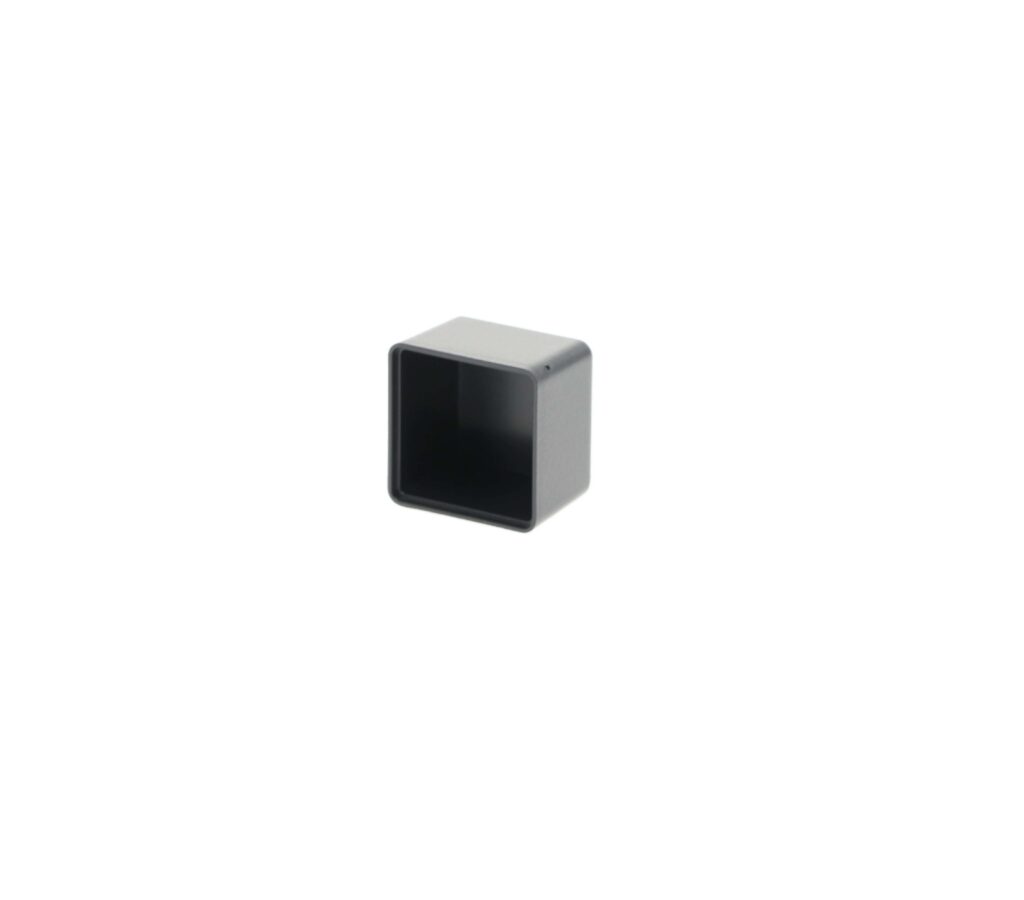

Potting Box Style A Plastic Box PB-1577

Model # PB-1577 Potting Box Style A Series

Economical, small and light weight
For all types of applications requiring complete sealing of component parts with potting compounds
Made of tough, lightweight ABS plastic
Flammability rating: UL94V0 at .07″
Suggested service temperature -20C to +70C
Optional close-fitting covers are available
Finish: Black
Smooth finish with no mounting flanges

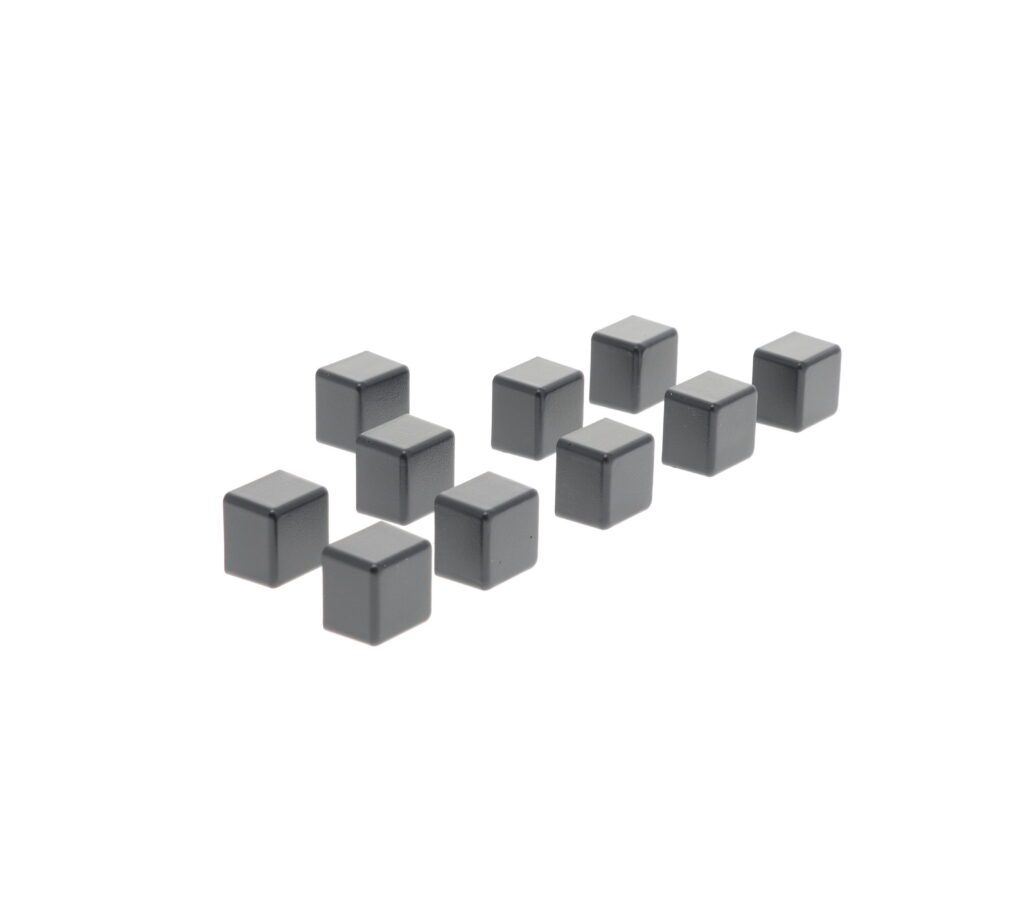

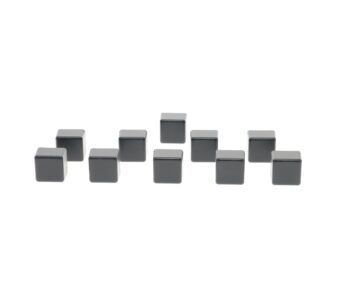

Shipped in packages of 10 pieces per catalog number

Check Stock / Pricing Request Modifications Compare Sizes and Models

External Size L x W x D: 1.03" x 1.03" x 0.78"

Internal Size L x W x D: 0.91" x 0.91" x 0.72"

Weight: 0.16 lbs

Color: Black

RoHS Certified: Always Compliant

Type of Plastic: ABS

Flammability Rating: UL94-V0

Service Temperature Low: -20

Service Temperature High: 70

Bosses: Yes

Drawing

PB-1577 Dimensions

OTHER MODELS IN THIS SERIES

Model #	External Dimensions	Internal Dimensions
PB-1560	0.79" x 0.79" x 0.51" 0.790.790.51	0.70" x 0.70" x 0.45"
PB-1562	0.98" x 0.98" x 0.98" 0.980.980.98	0.87" x 0.87" x 0.90"
PB-1577	1.03" x 1.03" x 0.78" 1.031.030.78	0.91" x 0.91" x 0.72"
PB-1579	1.50" x 1.25" x 0.80" 1.501.250.80	1.36" x 1.11" x 0.73"
PB-1563	1.57" x 1.57" x 0.79" 1.571.570.79	1.48" x 1.48" x 0.72"
PB-1564	1.78" x 1.16" x 0.63" 1.781.160.63	1.70" x 1.06" x 0.53"
PB-1561	1.97" x 0.51" x 0.59" 1.970.510.59	1.85" x 0.39" x 0.49"
PB-1558	2.00" x 1.50" x 1.00" 2.001.501.00	1.86" x 1.36" x 0.93"
PB-1574	2.00" x 2.00" x 1.50" 2.002.001.50	1.95" x 1.95" x 1.43"
PB-1581	2.08" x 1.28" x 0.45" 2.081.280.45	1.94" x 1.16" x 1.38"
PB-1565	2.76" x 1.97" x 1.38" 2.761.971.38	2.60" x 1.80" x 1.27"
PB-1559	3.00" x 2.00" x 1.50" 3.002.001.50	2.86" x 1.86" x 1.43"
PB-1576	3.00" x 3.00" x 1.50" 3.003.001.50	2.86" x 2.86" x 1.36"
PB-1575	3.03" x 2.03" x 0.90" 3.032.030.90	2.89" x 1.89" x 0.83"
PB-1580	4.00" x 1.75" x 1.00" 4.001.751.00	3.86" x 1.61" x 0.93"
PB-1578	4.00" x 2.12" x 2.00" 4.002.122.00	3.86" x 1.99" x 1.93"
PB-1582	4.06" x 2.19" x 0.90" 4.062.190.90	3.92" x 2.05" x 0.76"
PB-1583	4.37" x 3.12" x 2.00" 4.373.122.00	3.97" x 2.99" x 1.72"
