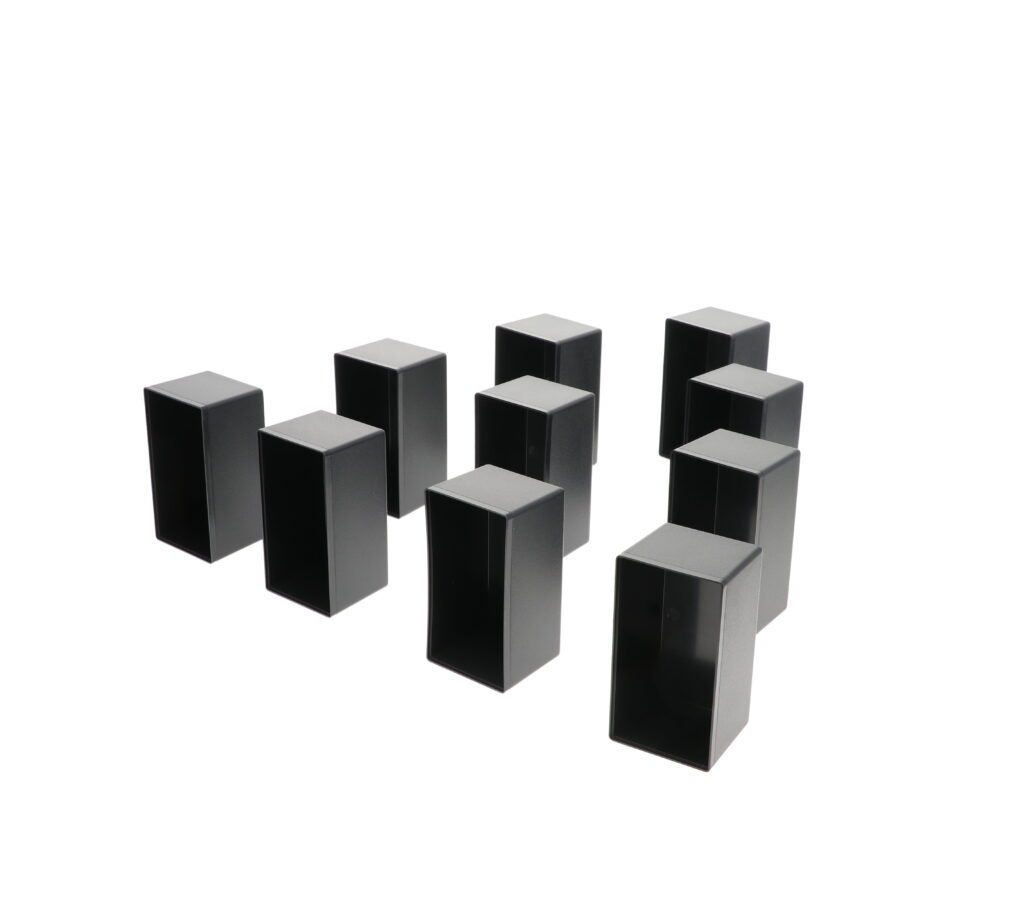

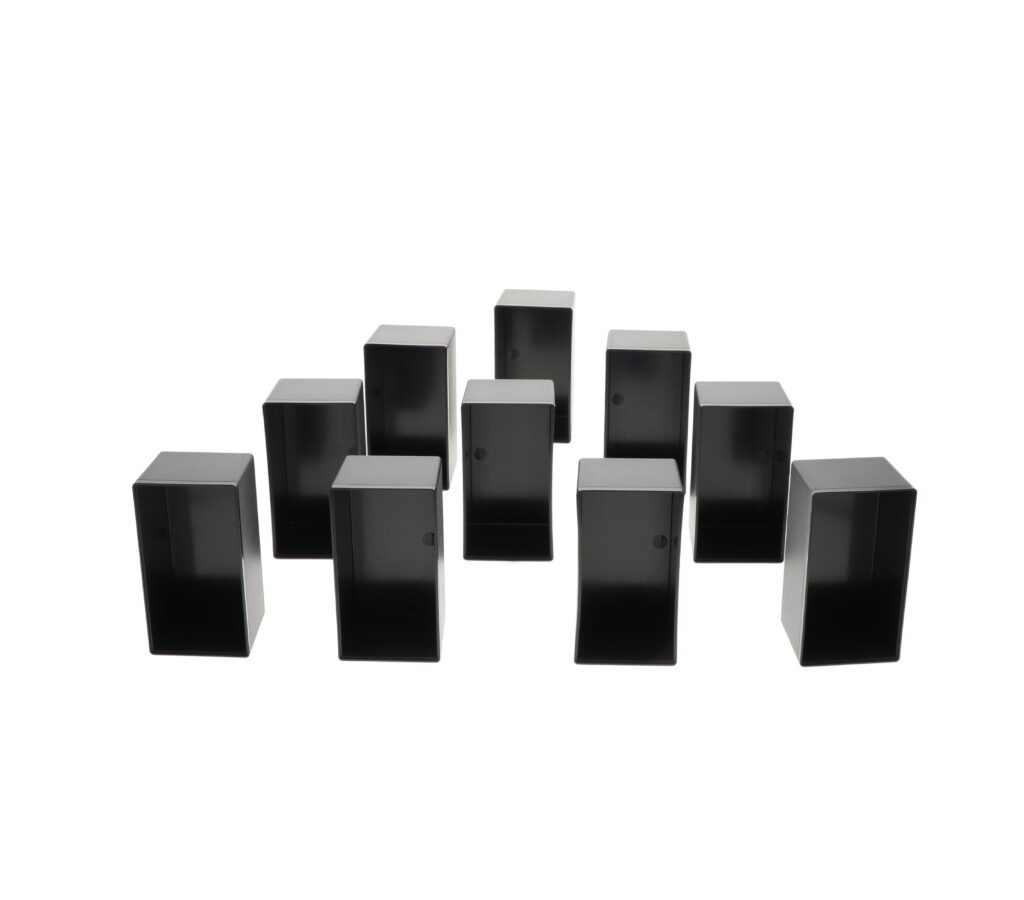

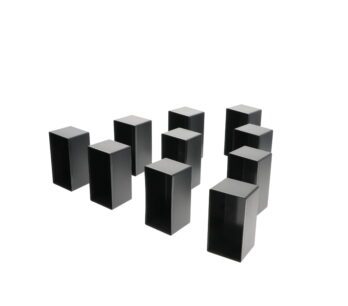

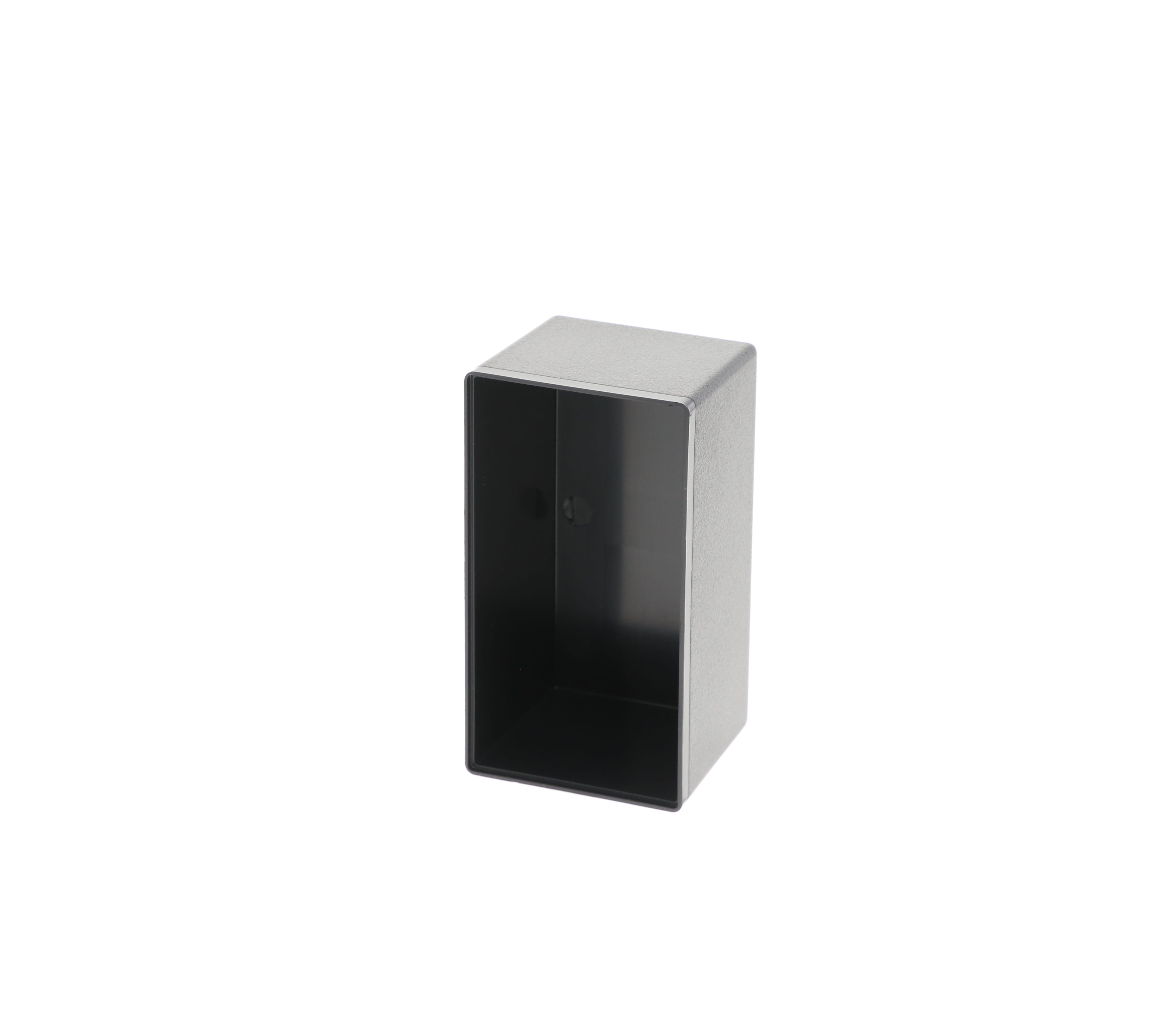

Potting Box Style A Plastic Box PB-1578
  • Potting Box Style A

Product Details

Model # PB-1578 Potting Box Style A Series
  • Economical, small and light weight
  • For all types of applications requiring complete sealing of component parts with potting compounds
  • Made of tough, lightweight ABS plastic
  • Flammability rating: UL94V0 at .07″
  • Suggested service temperature -20C to +70C
  • Optional close-fitting covers are available
  • Finish: Black
  • Smooth finish with no mounting flanges
  • Shipped in packages of 10 pieces per catalog number
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 4.00" x 2.12" x 2.00"
Internal Size L x W x D: 3.86" x 1.99" x 1.93"
Weight: 0.94 lbs
Color: Black
RoHS Certified: Always Compliant
Type of Plastic: ABS
Flammability Rating: UL94-5VA
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
hb11403.pdf hb11403.dxf
