CS-11221-B

Slimcab Metal Enclosures for Electronics Black CS-11221-B

Product Details

Model # CS-11221-B Slimcab Metal Enclosures for Electronics
  • Cover: 0.05-inch aluminum
  • Panels: 0.120-inch “Surface Shield” aluminum
  • Sides vented for cooling
  •  1U (1.75 inches) high
  • Suitable for desktop or 19-inch rack mount use with optional brackets
Check Stock / Pricing Request ModificationsCompare Sizes and ModelsSee Accessories
External Size L x W x D: 1.75" x 8.50" x 8.00"
Internal Size L x W x D: 1.65" x 8.40" x 7.00"
Weight: 1.5 lbs
Color: Black Smooth Powder Coated
Number of U: 1

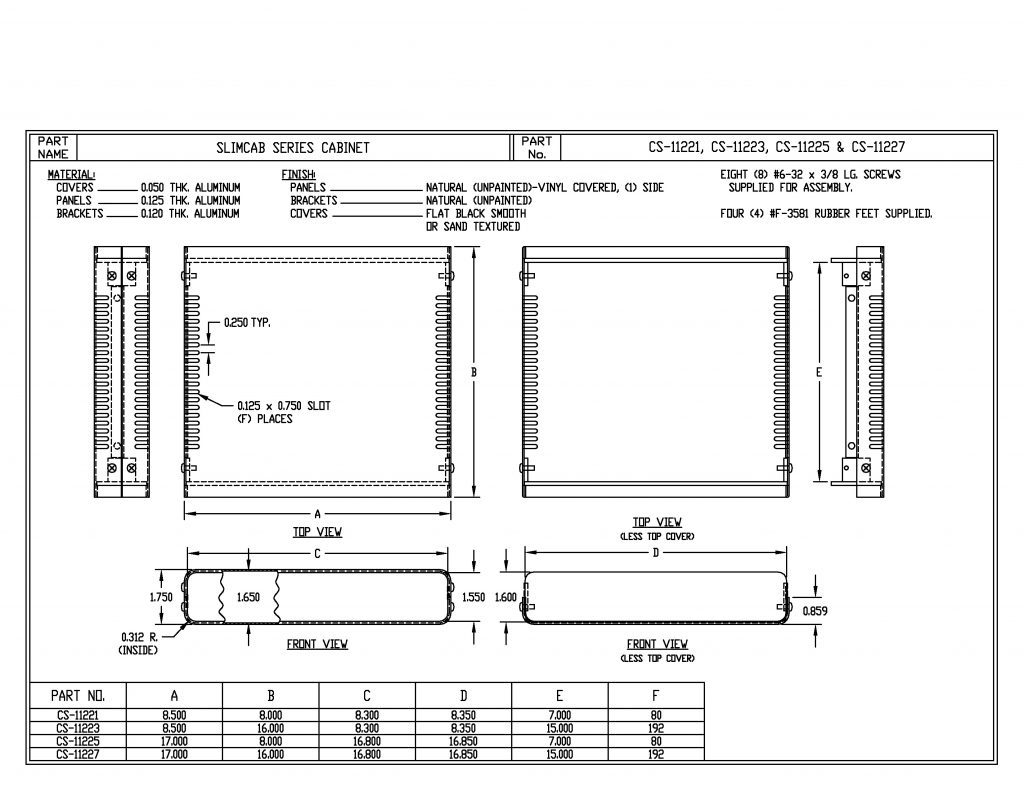

Drawing

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
CS-11227-B 1.75" x 17.00" x 16.00" 1.7517.0016.00 1.65" x 16.80" x 15.00"
CS-11227-S 1.75" x 17.00" x 16.00" 1.7517.0016.00 1.65" x 16.80" x 15.00"
CS-11225-B 1.75" x 17.00" x 8.00" 1.7517.008.00 1.65" x 16.80" x 7.00"
CS-11225-S 1.75" x 17.00" x 8.00" 1.7517.008.00 1.65" x 16.80" x 7.00"
CS-11221-B 1.75" x 8.50" x 8.00" 1.758.508.00 1.65" x 8.40" x 7.00"
CS-11221-S 1.75" x 8.50" x 8.00" 1.758.508.00 1.65" x 8.40" x 7.00"
