CU-387

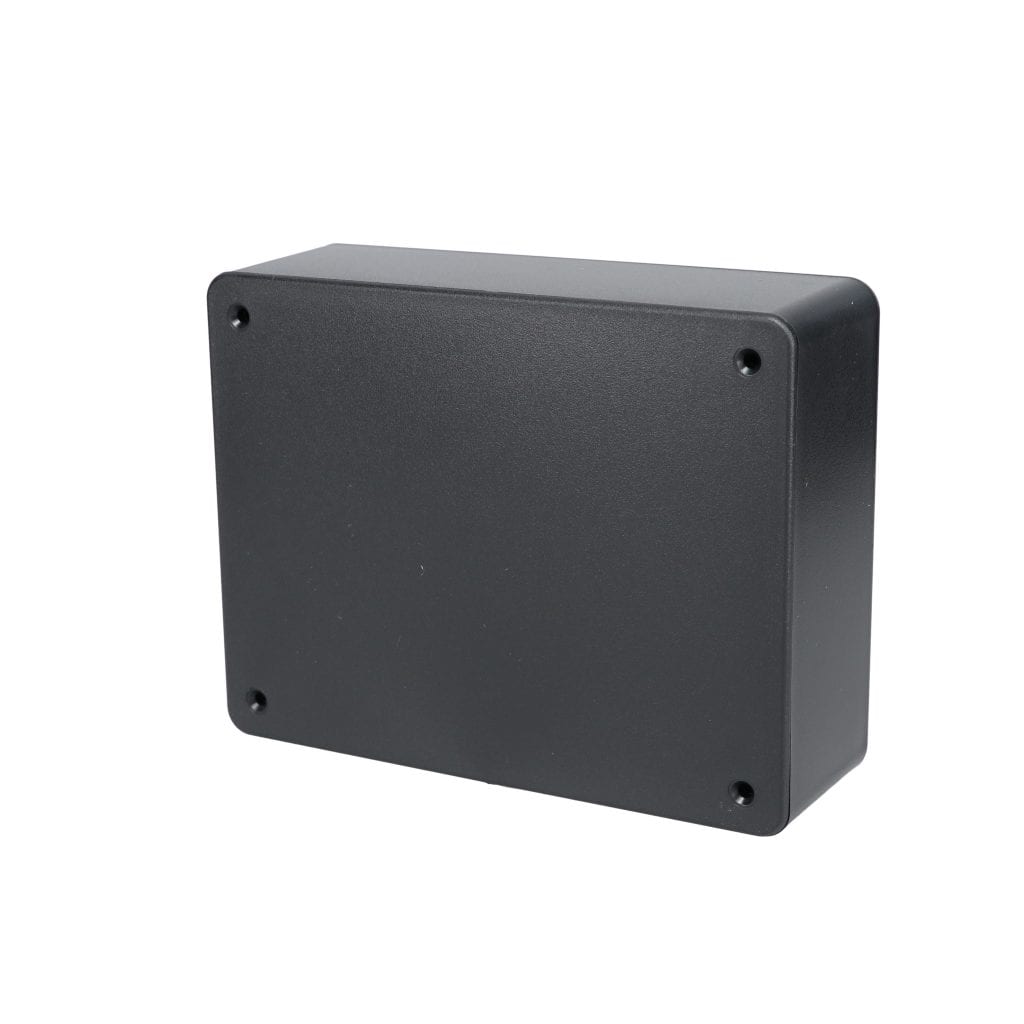

Utilibox Style G Plastic Utility Box CU-387
  • Utilibox Style G

Product Details

Model # CU-387 Utilibox Style G Series Utility Boxes
  • Textured finish
  • ABS plastic with UL94V-O flammability rating
  • Suggested service temperature of – 20 degrees C to +70 degrees C
  • Comes with close fitting interlocking lid and assembly hardware
  • Horizontal PCB mounting bosses
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 5.59" x 4.34" x 1.84"
Internal Size L x W x D: 5.32" x 4.07" x 1.66"
Weight: 0.35 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
hb382.pdf hb382.dxf

Drawing
