CU-389

Utilibox Style G Plastic Utility Box CU-389
  • Utilibox Style G

Product Details

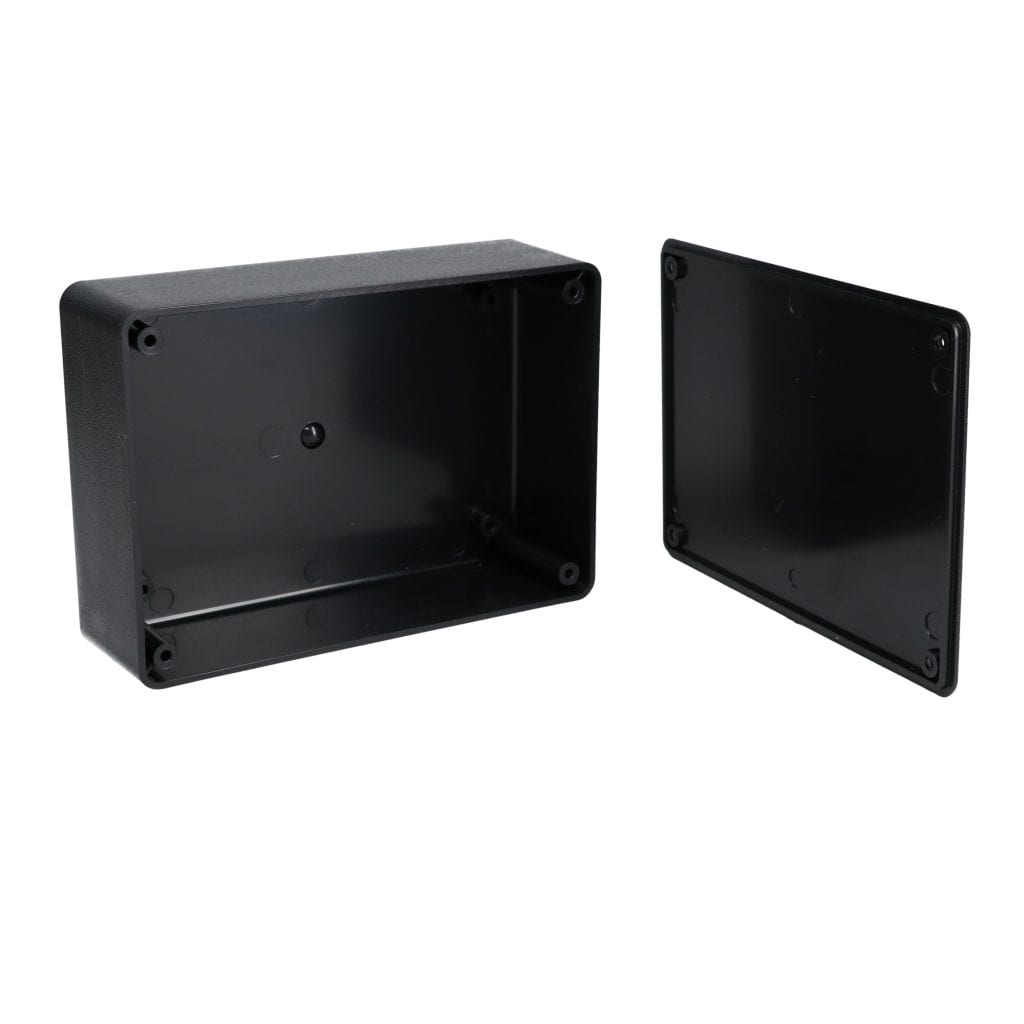

Model # CU-389 Utilibox Style G Series Utility Boxes
  • Textured finish
  • ABS plastic with UL94V-O flammability rating
  • Suggested service temperature of – 20 degrees C to +70 degrees C
  • Comes with close fitting interlocking lid and assembly hardware
  • Horizontal PCB mounting bosses
See Other Models Search by Size Check Stock / Pricing
External Size L x W x D: 5.07" x 3.57" x 1.59"
Internal Size L x W x D: 4.80" x 3.30" x 1.42"
Weight: 0.22 lbs
Color: Black
Type of Plastic: ABS
Flammability Rating: UL94-V0
Service Temperature Low: -20
Service Temperature High: 70
Bosses: Yes
hb388.pdf hb388.dxf

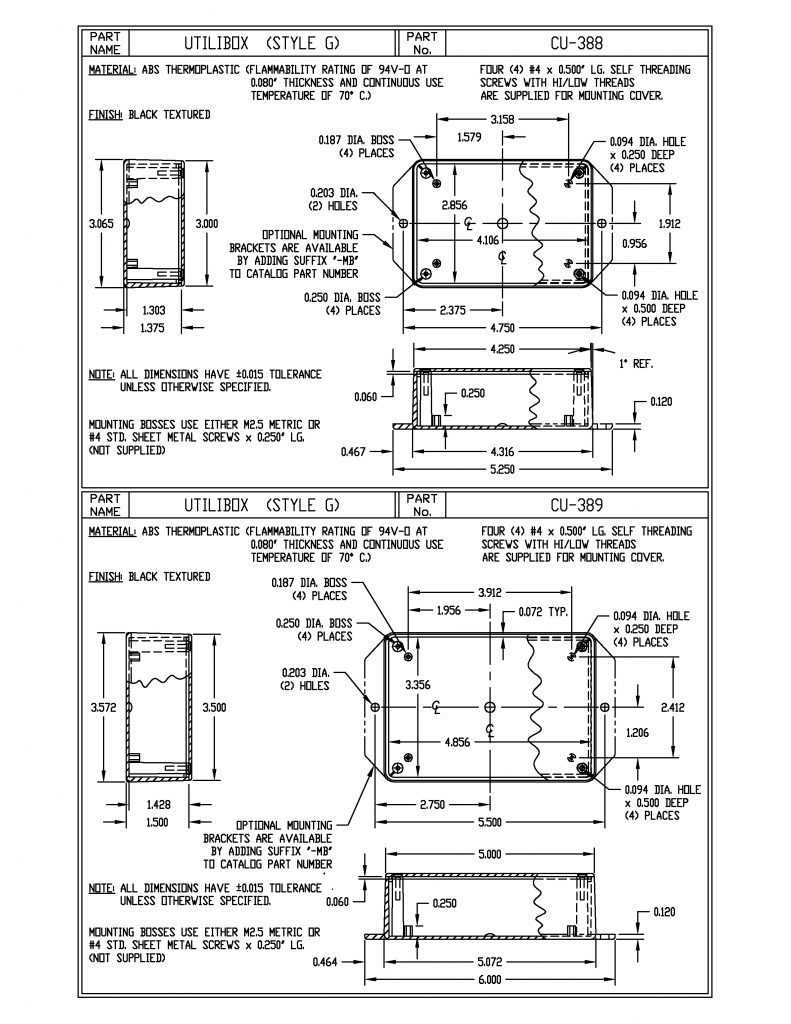

Drawing
