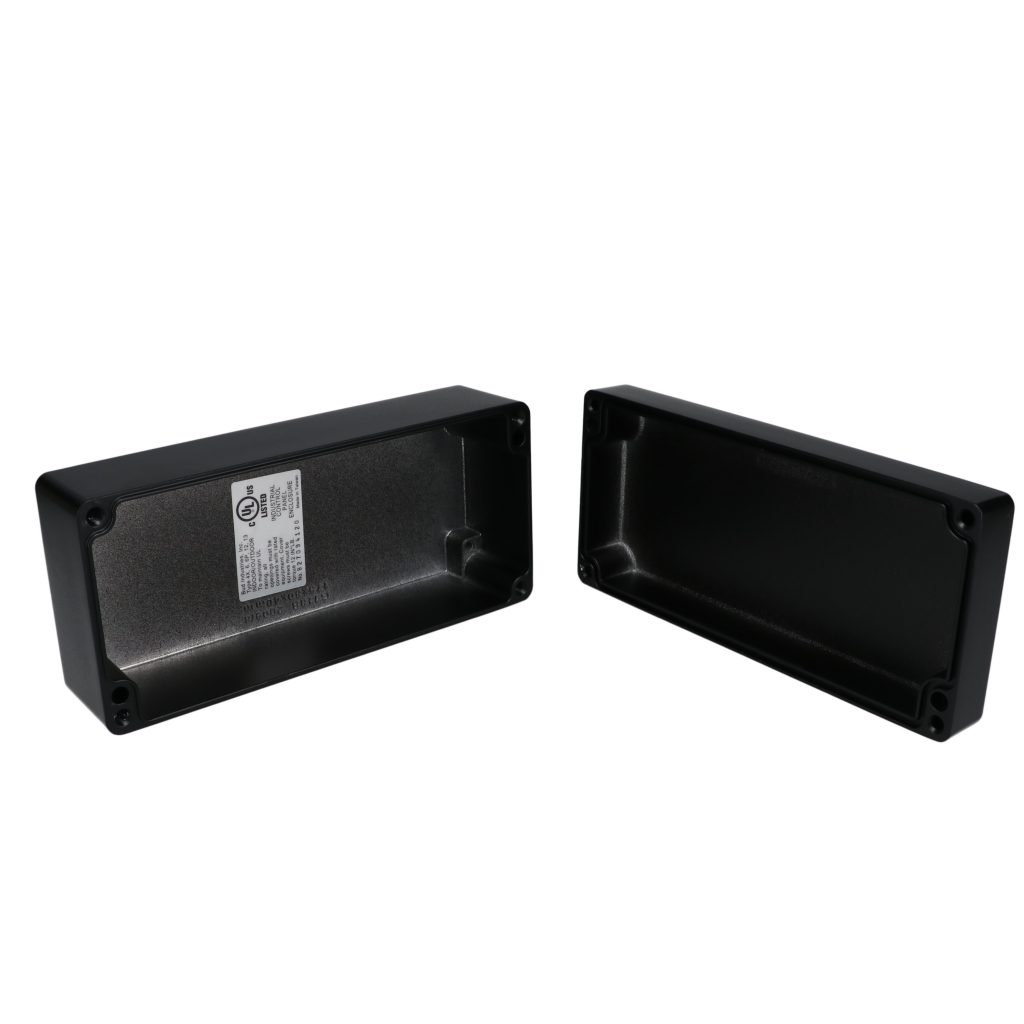

Model # AN-1321-AB AN-A Series Aluminum Enclosure
  • Direct replacement to AN-13xx series
  • Pre molded continuous silicon gasket with outstanding performance
  • Rugged #ADC-12 alloy die cast aluminum box
  • Available NEMA 6P (recommended powder coated black for extra corrosion protection)
  • IP 67 tested by TUV
  • Test results exceeded the requirements in respect to IEC60529 IP68 conditions (UL Type 6P tested under 6’ of water for 24 hours)
  • Type 4X,6,6P,12,13 as listed under UL file #E194432
  • Cover attaches with stainless screws torqued at 12 in-lb.
  • Easily machined and modified to your particular requirements
  • Offers EMC protection
 Compare Sizes and Models See Accessories Request Modifications Check Stock / Pricing
External Size L x W x D: 6.89" x 3.15" x 2.36"
Internal Size L x W x D: 6.61" x 2.86" x 2.22"
Weight: 1.02 lbs
Color: Black Powder Coat
RoHS Certified: Always Compliant
Gasket Type: Silicone
NEMA Rating: NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
IP Rating: 68
Mounting Style: Mounting Holes
Cover Style: Opaque, Screw Down Cover
hban1321a.pdf hban1321a.dxf file/d/1mArzwR70OP4kC6YaJQmDIppJ_Mu3EF3b/view?usp=sharing

Drawing

AN-1321-AB Dimensions

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Mounting Style
AN-1311-A 1.97" x 1.77" x 1.18" 1.971.771.18 1.78" x 1.58" x 0.98" Mounting Holes
AN-1311-AB 1.97" x 1.77" x 1.18" 1.971.771.18 1.78" x 1.58" x 0.98" Mounting Holes
AN-1323-A 10.24" x 6.30" x 3.56" 10.246.303.56 9.84" x 5.93" x 3.39" Mounting Holes
AN-1323-AB 10.24" x 6.30" x 3.56" 10.246.303.56 9.84" x 5.93" x 3.39" Mounting Holes
AN-1318-A 2.19" x 1.61" x 1.22" 2.191.611.22 1.91" x 1.34" x 1.10" Mounting Holes
AN-1318-AB 2.19" x 1.61" x 1.22" 2.191.611.22 1.91" x 1.34" x 1.10" Mounting Holes
AN-1301-A 2.52" x 2.28" x 1.38" 2.522.281.38 2.19" x 1.95" x 1.18" Mounting Holes
AN-1301-AB 2.52" x 2.28" x 1.38" 2.522.281.38 2.19" x 1.95" x 1.18" Mounting Holes
AN-1319-A 3.13" x 2.93" x 2.05" 3.132.932.05 2.85" x 2.65" x 1.91" Mounting Holes
AN-1319-AB 3.13" x 2.93" x 2.05" 3.132.932.05 2.85" x 2.65" x 1.91" Mounting Holes
AN-1300-A 3.53" x 1.41" x 1.18" 3.531.411.18 3.17" x 1.04" x 0.97" No Mounting Holes
AN-1300-AB 3.54" x 1.42" x 1.18" 3.541.421.18 3.17" x 1.04" x 0.97" No Mounting Holes
AN-1312-A 3.85" x 2.52" x 1.35" 3.852.521.35 3.61" x 2.28" x 1.12" Mounting Holes
AN-1312-AB 3.85" x 2.52" x 1.35" 3.852.521.35 3.61" x 2.28" x 1.12" Mounting Holes
AN-1320-A 4.04" x 2.07" x 1.00" 4.042.071.00 3.79" x 1.80" x 0.87" Mounting Holes
AN-1320-AB 4.04" x 2.07" x 1.00" 4.042.071.00 3.79" x 1.80" x 0.87" Mounting Holes
AN-1304-A 4.53" x 3.54" x 2.17" 4.533.542.17 4.01" x 3.03" x 1.96" Mounting Holes
AN-1304-AB 4.53" x 3.54" x 2.17" 4.533.542.17 4.01" x 3.03" x 1.96" Mounting Holes
AN-1302-A 4.55" x 2.58" x 1.18" 4.552.581.18 4.18" x 2.15" x 0.98" Mounting Holes
AN-1302-AB 4.55" x 2.58" x 1.18" 4.552.581.18 4.18" x 2.15" x 0.98" Mounting Holes
AN-1303-A 4.55" x 2.58" x 2.17" 4.552.582.17 4.03" x 2.07" x 1.96" Mounting Holes
AN-1303-AB 4.55" x 2.58" x 2.17" 4.552.582.17 4.03" x 2.07" x 1.96" Mounting Holes
AN-1309-A 4.75" x 4.75" x 3.99" 4.754.753.99 4.38" x 4.38" x 3.82" Mounting Holes
AN-1309-AB 4.75" x 4.75" x 3.99" 4.754.753.99 4.38" x 4.38" x 3.82" Mounting Holes
AN-1313-A 4.90" x 3.14" x 1.59" 4.903.141.59 4.60" x 2.83" x 1.36" Mounting Holes
AN-1313-AB 4.90" x 3.14" x 1.59" 4.903.141.59 4.60" x 2.83" x 1.36" Mounting Holes
AN-1314-A 4.90" x 3.14" x 2.26" 4.903.142.26 4.60" x 2.83" x 2.03" Mounting Holes
AN-1314-AB 4.90" x 3.14" x 2.26" 4.903.142.26 4.60" x 2.83" x 2.03" Mounting Holes
AN-1305-A 5.83" x 4.25" x 2.95" 5.834.252.95 5.34" x 3.76" x 2.71" No Mounting Holes
AN-1305-AB 5.83" x 4.25" x 2.95" 5.834.252.95 5.34" x 3.76" x 2.71" No Mounting Holes
AN-1315-A 5.91" x 2.52" x 1.45" 5.912.521.45 5.63" x 2.24" x 1.13" Mounting Holes
AN-1315-AB 5.91" x 2.52" x 1.45" 5.912.521.45 5.63" x 2.24" x 1.13" Mounting Holes
AN-1310-A 6.25" x 6.25" x 3.99" 6.256.253.99 5.88" x 5.88" x 3.82" Mounting Holes
AN-1310-AB 6.25" x 6.25" x 3.99" 6.256.253.99 5.88" x 5.88" x 3.82" Mounting Holes
AN-1316-A 6.29" x 3.93" x 2.37" 6.293.932.37 5.98" x 3.62" x 2.13" Mounting Holes
AN-1316-AB 6.29" x 3.93" x 2.37" 6.293.932.37 5.98" x 3.62" x 2.13" Mounting Holes
AN-1317-A 6.29" x 3.93" x 3.19" 6.293.933.19 5.98" x 3.62" x 2.95" Mounting Holes
AN-1317-AB 6.29" x 3.93" x 3.19" 6.293.933.19 5.98" x 3.62" x 2.95" Mounting Holes
AN-1306-A 6.73" x 4.76" x 2.17" 6.734.762.17 6.27" x 4.30" x 1.94" No Mounting Holes
AN-1306-AB 6.73" x 4.76" x 2.17" 6.734.762.17 6.27" x 4.30" x 1.94" No Mounting Holes
AN-1321-A 6.89" x 3.15" x 2.36" 6.893.152.36 6.61" x 2.86" x 2.22" Mounting Holes
AN-1321-AB 6.89" x 3.15" x 2.36" 6.893.152.36 6.61" x 2.86" x 2.22" Mounting Holes
AN-1322-A 7.87" x 4.72" x 2.95" 7.874.722.95 7.56" x 4.43" x 2.81" Mounting Holes
AN-1322-AB 7.87" x 4.72" x 2.95" 7.874.722.95 7.56" x 4.43" x 2.81" Mounting Holes
AN-1307-A 8.75" x 5.75" x 2.17" 8.755.752.17 8.27" x 5.29" x 1.95" Mounting Holes
AN-1307-AB 8.75" x 5.75" x 2.17" 8.755.752.17 8.27" x 5.29" x 1.95" Mounting Holes
AN-1308-A 8.75" x 5.75" x 3.25" 8.755.753.25 8.27" x 5.29" x 3.02" Mounting Holes
AN-1308-AB 8.75" x 5.75" x 3.25" 8.755.753.25 8.27" x 5.29" x 3.02" Mounting Holes
