HPB-35203-B

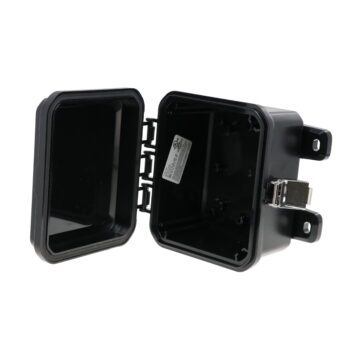

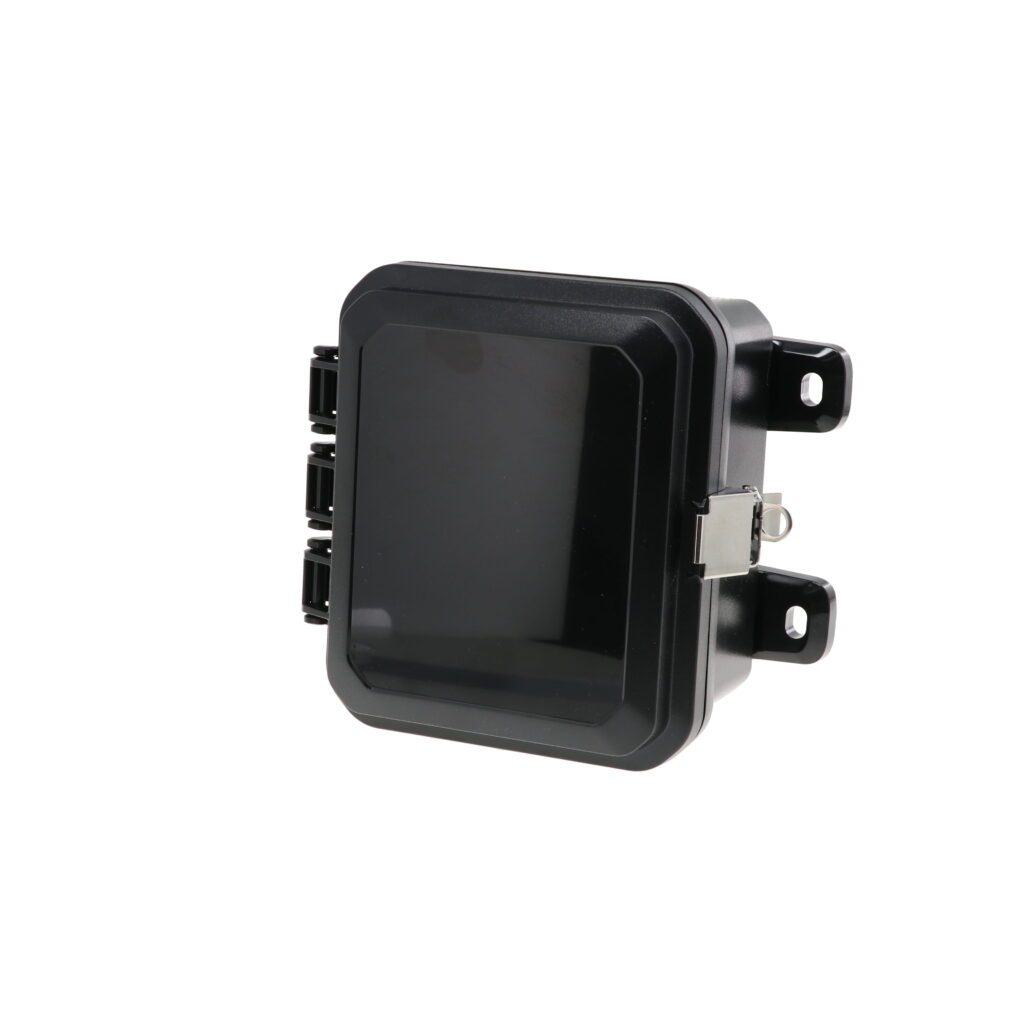

Heavy-Duty NEMA 4X/IP66 Hinged Cover PC Enclosure HPB-35203-B

Product Details

Model # HPB-35203-B HPB Series - Heavy-Duty NEMA 4X/IP66 Hinged Cover PC Enclosure
  • NEMA 1, 2, 3, 3R, 3RX, 3S, 3SX, 3X, 4, 4X, 5, 12, 13 rated
  • IP65, IP66 rated
  • UL listed
  • Impact-resistant black polycarbonate UL94-5VA
  • Service temperature -35 C to 110 C
  • Continuous silicon gasket in the cover for a watertight seal
  • Waterproof and corrosion-resistant
  • Designed for indoor and outdoor use
  • Optional accessories include: stainless steel or plastic multi-directional mounting brackets for horizontal or vertical orientation, aluminum mounting internal panels, DIN rails
  • The hinged cover is fitted with stainless steel latch with area for padlock
  • Mounting bosses in base for panel and DIN rail mounting
  • RoHs and REACH Compliant
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 6.20" x 5.20" x 4.20"
Internal Size L x W x D: 5.60" x 4.60" x 3.60"
Weight: 1.34 lbs
Color: Black
RoHS Certified: Always Compliant
NEMA Rating: NEMA 1, NEMA 2, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
IP Rating: IP65, IP66
Mounting Style: Mounting Brackets
Cover Style: Opaque, Hinged Cover
Latch Style: Stainless Steel

If you’re looking for a NEMA rated or IP rated enclosure for a printed circuit board (PCB) that measures up to 5.60" x 4.60" x 3.60" or smaller, then this enclosure is an excellent choice.

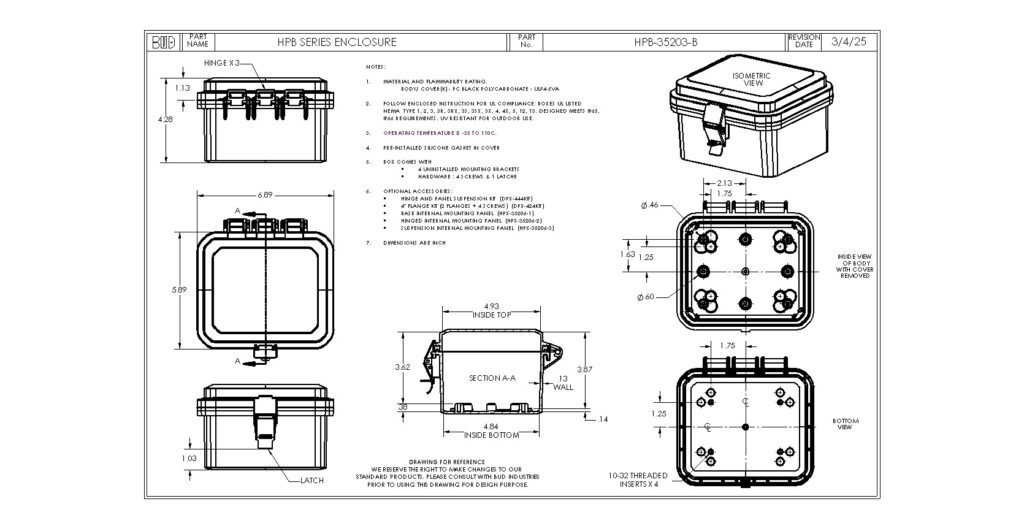

Drawing

HPB-35203-B Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions
HPB-39220-B 10.00" x 6.20" x 4.20" 106.24.2 9.40" x 5.60" x 3.60"
HPB-37216-B 11.00" x 7.20" x 6.30" 117.26.3 10.40" x 6.60" x 5.70"
HPB-37217-B 13.00" x 9.20" x 6.30" 139.26.3 12.40" x 8.60" x 5.70"
HPB-40218-B 15.00" x 11.00" x 6.30" 15116.3 14.40" x 10.40" x 5.70"
HPB-35202-B 5.20" x 4.20" x 3.20" 5.24.23.2 4.60" x 3.60" x 2.60"
HPB-35203-B 6.20" x 5.20" x 4.20" 6.25.24.2 5.60" x 4.60" x 3.60"
HPB-37214-B 7.20" x 5.20" x 4.20" 7.25.24.2 6.60" x 4.60" x 3.60"
HPB-37215-B 7.20" x 7.20" x 5.70" 7.27.25.7 6.60" x 6.60" x 5.10"
