NBE-10553

NEMA Box with Aluminum Swing-Out Panel NBE-10553
5 Day Modifications
  • NBE Series NEMA Box with Aluminum Swing-Out Panel
2 Videos

Product Details

Model # NBE-10553 NBE Series NEMA Box
  • IP65|IP66
  • Designed to IP66 of IEC 529 and NEMA 1, 4 and 4x specifications.
  • UL Listed to UL508-4x requirements
  • ABS/PC blended plastic enclosures are molded out of light gray material with UL94-5VA flammability rating. Suggested service temperature range -40C to +70C.
  • Opaque door
 Check Stock / Pricing Estimate Modifications Compare Sizes and ModelsSee Accessories
External Size L x W x D: 19.17" x 14.64" x 7.85"
Internal Size L x W x D: 18.33" x 13.75" x 7.60"
Weight: 3.5 lbs
Color: Light Gray
RoHS Certified: Always Compliant
Indoor / Outdoor: Indoor (Not UV Stabilized)
Flammability Rating: UL94-5VA
Door Flammability Rating: UL94-5VA
Type of Plastic: ABS
Door Type of Plastic: ABS Poly Blend
UL Rating: UL508
Service Temperature Min: -40°C
Service Temperature Max: 70°C
NEMA Rating: NEMA 1, NEMA 4, NEMA 4X
IP Rating: IP65, IP66
Cover Style: Opaque, Hinged Cover

If you’re looking for a ABS Poly Blend NEMA rated or IP rated enclosure for a printed circuit board (PCB) that measures up to 18.33" x 13.75" x 7.60" or smaller, then this enclosure is an excellent choice.

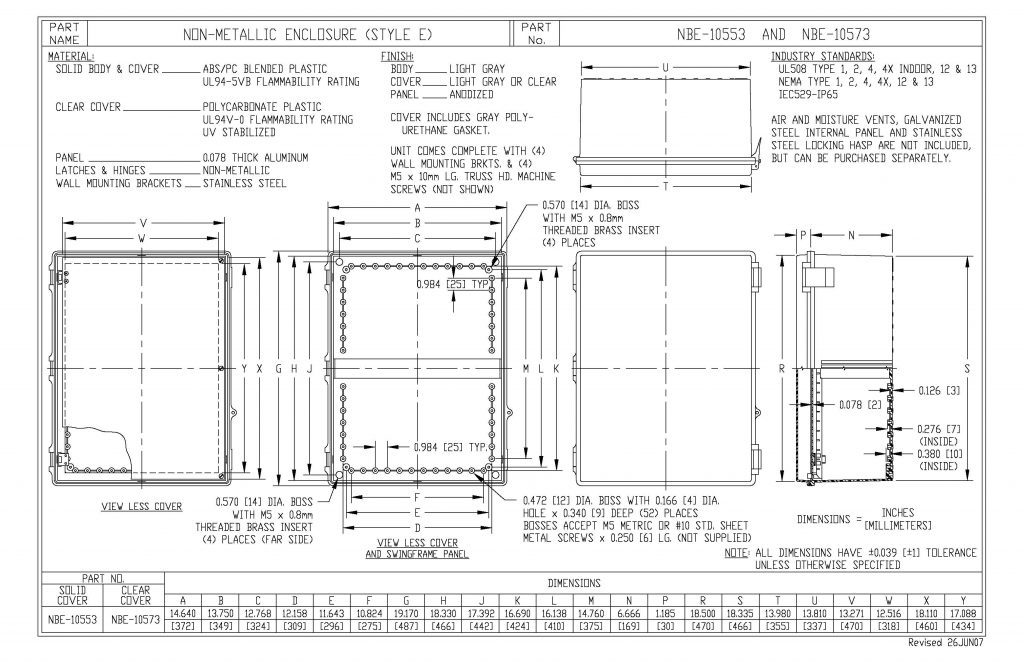

Drawing

NBE-10553 Dimensions
Email me the STEP file

OTHER MODELS IN THIS SERIES

Model # External Dimensions Internal Dimensions Cover Style
NBE-10543 11.28" x 7.48" x 5.52" 11.287.485.52 10.46" x 6.65" x 5.25" Opaque, Hinged Cover
NBE-10563 11.28" x 7.48" x 5.52" 11.287.485.52 10.46" x 6.65" x 5.25" Clear, Hinged Cover
NBE-10547 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Opaque, Hinged Cover
NBE-10567 15.68" x 11.73" x 6.30" 15.6811.736.30 14.88" x 10.89" x 6.03" Clear, Hinged Cover
NBE-10553 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Opaque, Hinged Cover
NBE-10573 19.17" x 14.64" x 7.85" 19.1714.647.85 18.33" x 13.75" x 7.60" Clear, Hinged Cover
